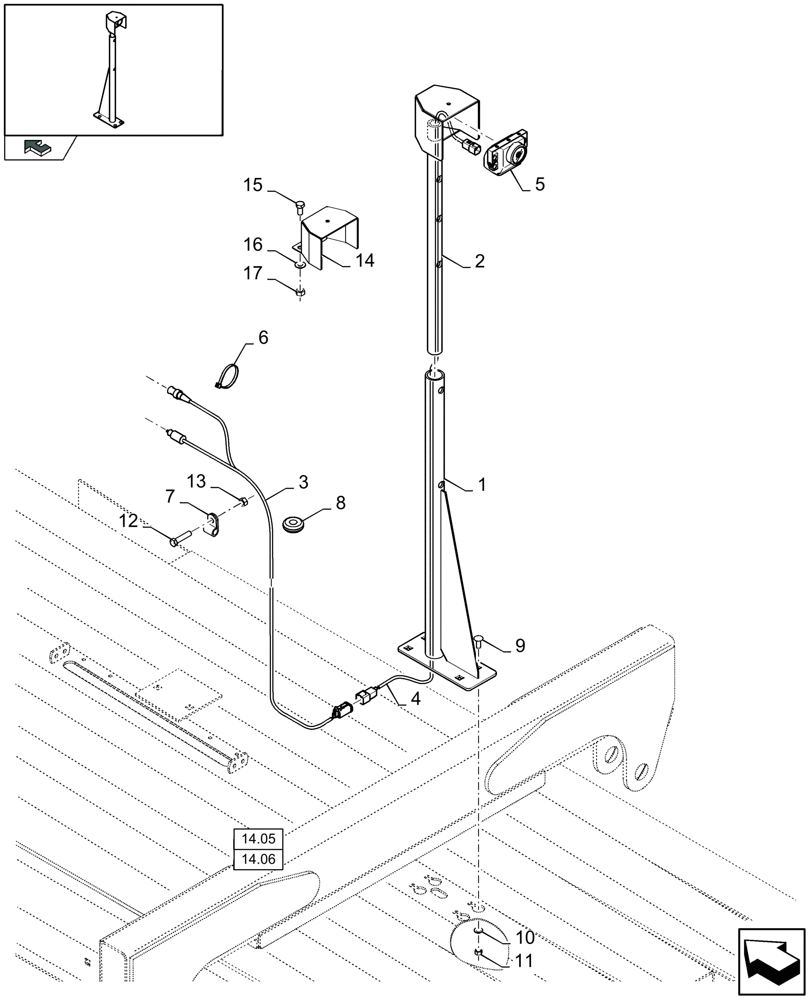

Запчасти Case IH LB333R (06.14[01]) - CAMERA KIT (06) - ELECTRICAL SYSTEMS

1

87496772

HOLDER

1шт.

2

87498096

HOLDER

1шт.

3

84136553

WIRE HARNESS

1шт.

SEE FIGURE 06.509

1шт.

4

84136557

WIRE HARNESS

1шт.

SEE FIGURE 06.510

1шт.

5

87720156

VIDEO CAMERA

1шт.

6

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

10шт.

7

9839372

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

8

84435431

GROMMET,M15 x 40 x 30

1шт.

9

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

100016

NUT,M10 x 1.5, Cl 8

4шт.

12

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

, Serial Range: -C751

2шт.

12

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

, Start Serial: D752

2шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

, Serial Range: -C751

2шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

, Start Serial: D752

2шт.

14

84210143

BOOT

, Start Serial: D804

1шт.

15

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

, Start Serial: D804

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Start Serial: D804

2шт.

17

9706690

NUT,M8 x 1.25, Cl 8

, Start Serial: D804

2шт.
