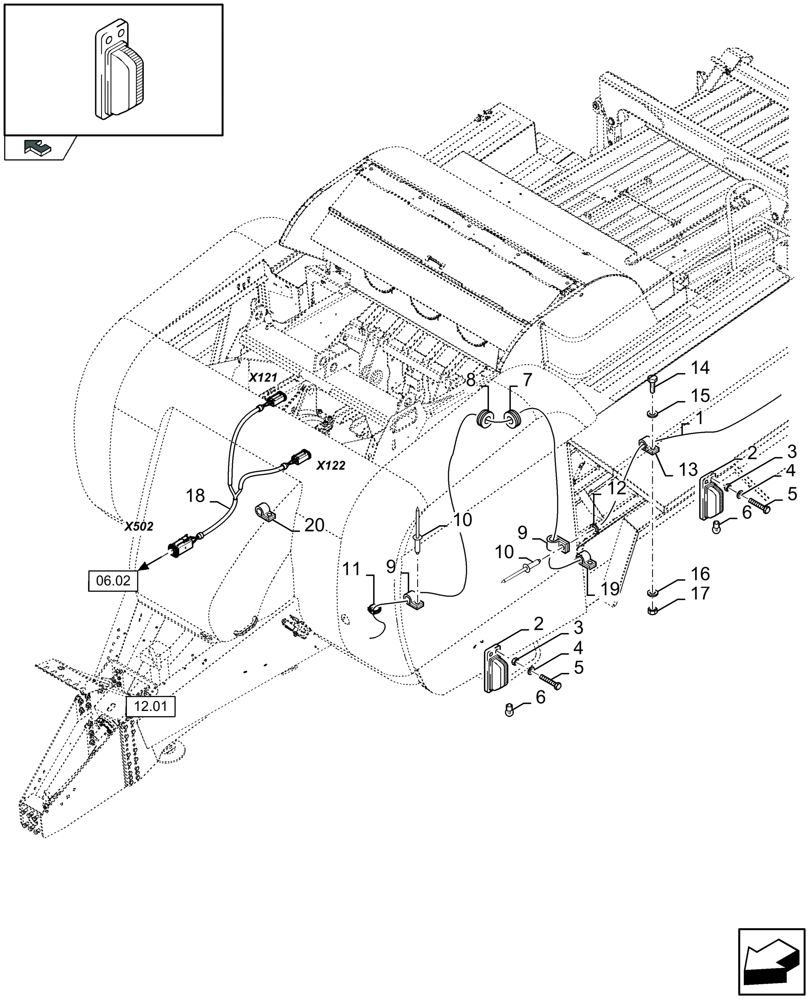

Запчасти Case IH LB333R (06.04[01]) - SIDE LIGHTS, DENMARK (06) - ELECTRICAL SYSTEMS

1

84459690

WIRE HARNESS

2шт.

SEE FIGURE 06.515

1шт.

2

84058158

SIDE LAMP ASSY

6шт.

3

100012

NUT,M4 x 0.7, Cl 8

12шт.

4

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

12шт.

5

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

12шт.

6

84058228

BULB,12V, 5W

12 V - 4 W

6шт.

7

323788

GROMMET

3шт.

8

399986

GROMMET

2шт.

9

9507807

CLAMP,8.3mm ID, 6.7mm Bolt Hole, P Type

8шт.

10

9512290

RIVET,Pop, 4.8mm OD x 17.8mm L

1шт.

11

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

1шт.

12

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

25шт.

13

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

13шт.

14

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

9шт.

15

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

9шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

17

100016

NUT,M10 x 1.5, Cl 8

9шт.

18

84459692

WIRE HARNESS

1шт.

SEE FIGURE 06.517

1шт.

19

84818442

CLAMP,13.3mm ID, 6.7mm Bolt Hole, P Type

22шт.

20

84818443

CLAMP,16.3mm ID, 6.7mm Bolt Hole, P Type

1шт.
