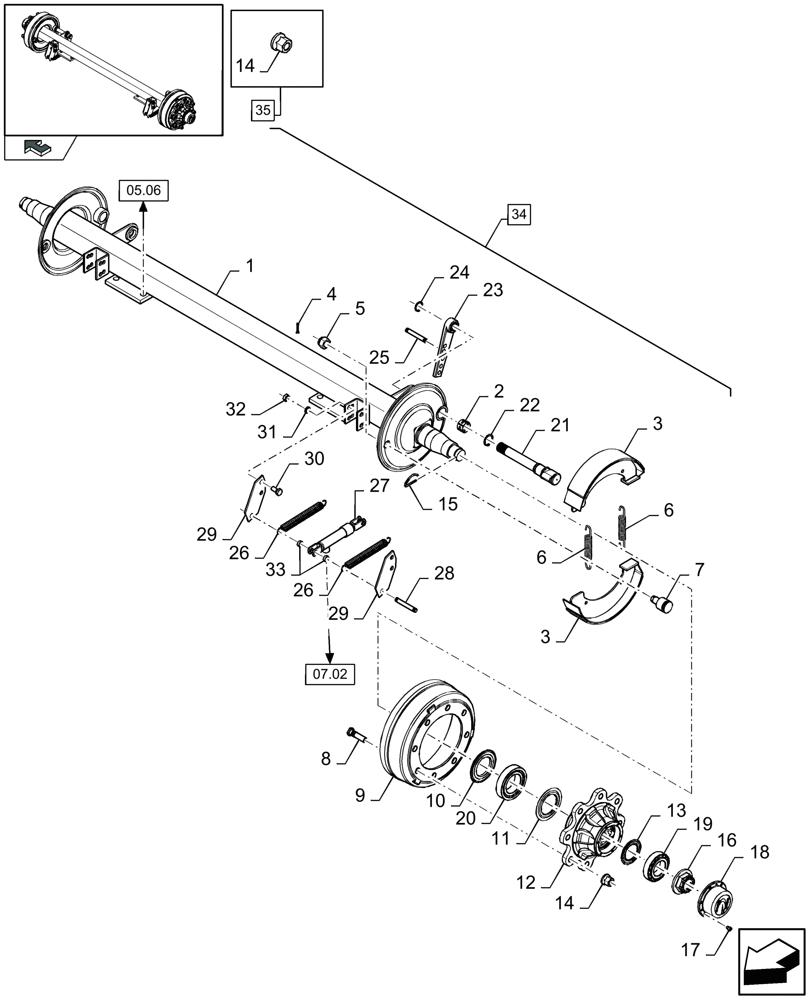

Запчасти Case IH LB333R (05.11[01]) - TANDEM AXLE, HYDRAULIC BRAKES (05) - AXLE

1

84214379

FRONT AXLE

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

1

84214807

FRONT AXLE

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR FRONT AXLE ONLY

1шт.

1

84214773

REAR AXLE

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

FOR NOT STEERED REAR AXLE ONLY

1шт.

1

84214808

REAR AXLE

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR NOT STEERED REAR AXLE ONLY

1шт.

2

84014235

SLEEVE

2шт.

3

84100576

BRAKE SHOE

4шт.

4

412685

COTTER PIN,M4 x 32

2шт.

5

84807533

NUT

2шт.

6

84100575

SPRING

4шт.

7

84807532

PIN

2шт.

8

84014229

BOLT

16шт.

9

84100577

HUB

2шт.

10

84807624

SEAL

2шт.

11

84100482

RING

2шт.

12

87354761

HUB

2шт.

13

84100484

RING

2шт.

14

84045545

WHEEL NUT

, Serial Range: -C859

16шт.

14

84288019

WHEEL NUT

, Start Serial: D860

16шт.

15

84212727

COTTER PIN

2шт.

16

84100486

NUT

2шт.

17

14301931

HEX SOC SCREW,M8 x 1.25 x 10mm, Cl 10.9, Full Thd

12шт.

18

87354753

COVER

2шт.

19

84100485

BALL BEARING,60mm ID x 110mm OD x 29.75mm W

2шт.

20

84100483

BALL BEARING,75mm ID x 130mm OD x 33.25mm W

2шт.

21

84214383

CAMSHAFT

2шт.

22

300632

SNAP RING,M38, External

2шт.

23

84214365

LEVER

LEFT

1шт.

23

84214364

LEVER

RIGHT

1шт.

24

370002

CIRCLIP,M25, External

2шт.

25

84014244

PIN

2шт.

26

84100575

SPRING

4шт.

27

84014242

CYLINDER

2шт.

28

84014244

PIN

2шт.

29

84100491

SUPPORT

4шт.

30

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

8шт.

31

140047

LOCK WASHER

8шт.

32

100065

JAM NUT,M14 x 1.5, Cl 8

8шт.

33

84807633

SPACER

4шт.

34

84807542

FRONT AXLE

(1 TO 33)

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

34

84807551

FRONT AXLE

(1 TO 33)

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR FRONT AXLE ONLY

1шт.

34

84807543

REAR AXLE

(1 TO 33)

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

FOR NOT STEERED REAR AXLE ONLY

1шт.

34

84807552

REAR AXLE

(1 TO 33)

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR NOT STEERED REAR AXLE ONLY

1шт.

35

84288018

KIT

(14), (SET OF 16)

1шт.
