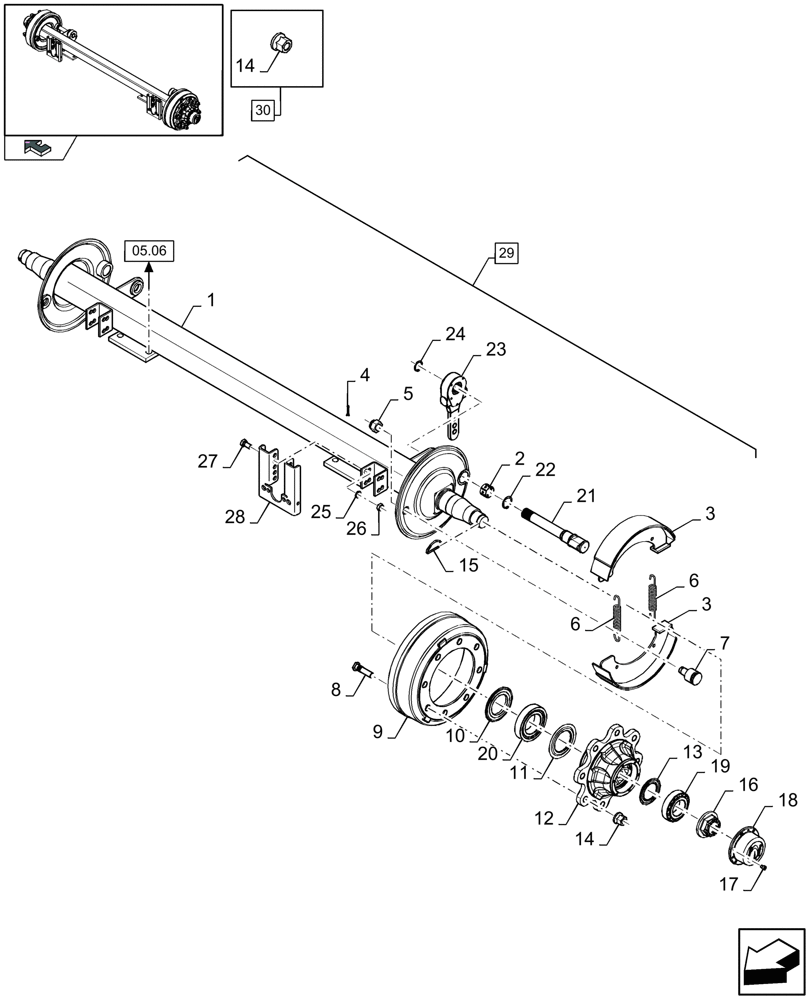

Запчасти Case IH LB333R (05.09[01]) - TANDEM AXLE, PNEUMATIC BRAKES (05) - AXLE

1

84214796

FRONT AXLE

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

1

84214824

FRONT AXLE

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR FRONT AXLE ONLY

1шт.

1

84214797

REAR AXLE

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

FOR NOT STEERED REAR AXLE ONLY

1шт.

1

84214826

REAR AXLE

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR NOT STEERED REAR AXLE ONLY

1шт.

2

84014235

SLEEVE

2шт.

3

84100576

BRAKE SHOE

4шт.

4

412685

COTTER PIN,M4 x 32

2шт.

5

84807533

NUT

2шт.

6

84100575

SPRING

4шт.

7

84807532

PIN

2шт.

8

84014229

BOLT

16шт.

9

84100577

HUB

2шт.

10

84807624

SEAL

2шт.

11

84100482

RING

2шт.

12

87354761

HUB

2шт.

13

84100484

RING

2шт.

14

84045545

WHEEL NUT

, Serial Range: -C859

16шт.

14

84288019

WHEEL NUT

, Start Serial: D860

16шт.

15

84212727

COTTER PIN

2шт.

16

84100486

NUT

2шт.

17

14301931

HEX SOC SCREW,M8 x 1.25 x 10mm, Cl 10.9, Full Thd

12шт.

18

87354753

COVER

2шт.

19

84100485

BALL BEARING,60mm ID x 110mm OD x 29.75mm W

2шт.

20

84100483

BALL BEARING,75mm ID x 130mm OD x 33.25mm W

2шт.

21

84214383

CAMSHAFT

2шт.

22

300632

SNAP RING,M38, External

2шт.

23

84213937

LEVER

, Serial Range: -C859

2шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR FRONT AXLE ONLY

1шт.

23

84014238

LEVER

, Start Serial: D860

2шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR FRONT AXLE ONLY

1шт.

23

84213937

LEVER

2шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

FOR NOT STEERED REAR AXLE ONLY

1шт.

24

84045556

CIRCLIP

2шт.

25

140047

LOCK WASHER

8шт.

26

100065

JAM NUT,M14 x 1.5, Cl 8

8шт.

27

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

8шт.

28

84100493

SUPPORT

2шт.

29

84807544

FRONT AXLE

(1 to 28)

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

29

84807553

FRONT AXLE

(1 to 28)

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR NOT STEERED AXLE

1шт.

29

84807545

REAR AXLE

(1 to 28)

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

FOR NOT STEERED REAR AXLE ONLY

1шт.

29

84807554

REAR AXLE

(1 to 28)

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR NOT STEERED REAR AXLE ONLY

1шт.

29

84807553

FRONT AXLE

(1 to 28), Serial Range: -C859

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR STEERED AXLE

1шт.

29

84305687

FRONT AXLE

(1 to 28), Start Serial: D860

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR STEERED AXLE

1шт.

30

84288018

KIT

(14), (SET OF 16)

1шт.
