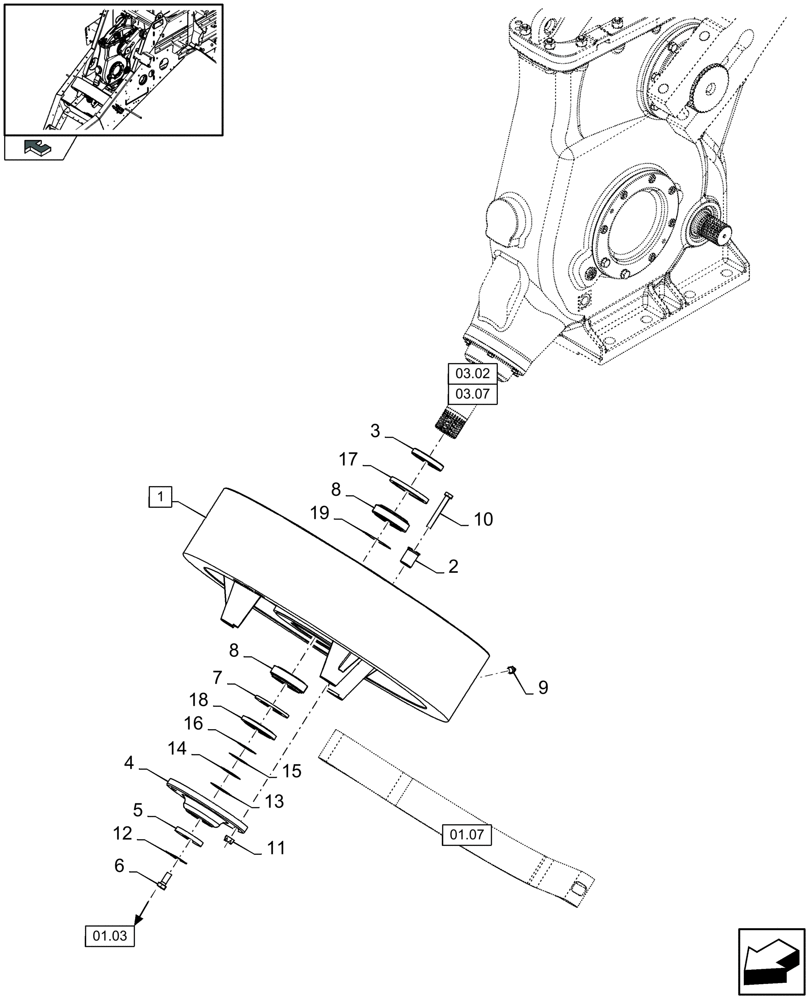

Запчасти Case IH LB333R (01.06[01]) - FLYWHEEL (01) - POWER TAKE OFF

1

87721200

BALER FLYWHEEL

(2)

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

1

87720102

BALER FLYWHEEL

(2)

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

2

87695682

SHEAR BOLT BUSHING,10.2mm ID x 31.7mm OD x 38mm L

1шт.

MAINTENANCE PART

1шт.

3

87660055

INSERT

1шт.

4

84800487

HUB

1шт.

5

84062069

DISC

1шт.

6

412677

BOLT,Hex, M12 x 1.75 x 30mm, Cl 12.9, Full Thd

2шт.

7

84062386

RING,55mm ID x 88.4mm OD

1шт.

8

853116

TAPERED BEARING

2шт.

MAINTENANCE PART

1шт.

9

62161

LUBE NIPPLE,M8 x 1.25, Str

1шт.

10

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

6шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

MAINTENANCE PART

1шт.

10

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

MAINTENANCE PART

1шт.

11

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

MAINTENANCE PART

1шт.

12

84062070

LOCKING PLATE

1шт.

13

84062423

SHIM

1 mm Thk, Serial Range: -C867

1шт.

13

84293744

ADJUSTING PLATE

1 mm Thk, Start Serial: D868

1шт.

14

140124

SHIM,40mm ID x 50mm OD x 0.5mm Thk

, Serial Range: -C867

1шт.

14

84293745

ADJUSTING PLATE

0.5 mm Thk, Start Serial: D868

1шт.

15

440978

WASHER,40mm ID x 50mm OD x 0.2mm Thk

, Serial Range: -C867

1шт.

15

84293746

ADJUSTING PLATE

0.2 mm Thk, Start Serial: D868

1шт.

16

87490146

ADJUSTING PLATE

0.15 mm Thk, Serial Range: -C867

1шт.

16

84293747

ADJUSTING PLATE

0.15 mm Thk, Start Serial: D868

1шт.

17

375400

SEALING RING

1шт.

18

84062387

RING,55mm ID x 90mm OD x 12.85mm L

1шт.

19

9838835

SHIM,57.15mm ID x 76.2mm OD x 0.25mm Thk

, Start Serial: D868

1шт.
