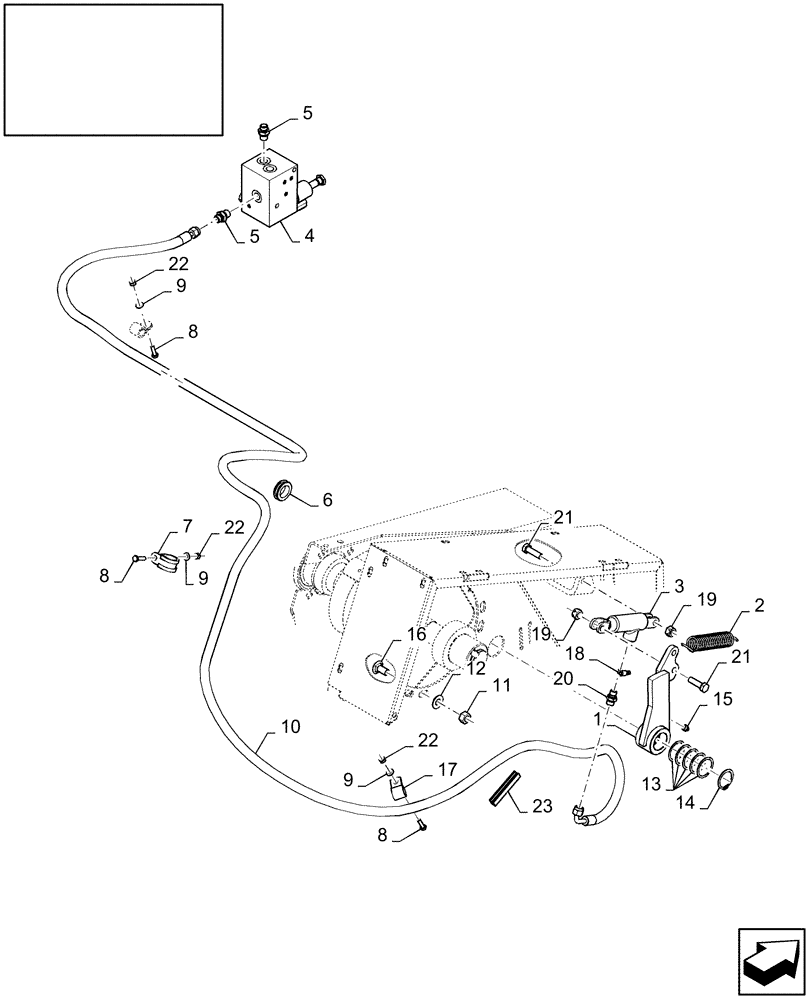

Запчасти Case IH LB333R (18.84197070[01]) - DIA : PICK-UP STOP KIT (18) - ACCESSORIES

84197070

DIA KIT, HARVESTER

1шт.

1

84817591

STOP

1шт.

2

84806601

SPRING,Extension, 28.399mm OD x 108mm L

1шт.

3

84817400

HYDRAULIC CYLINDER

1шт.

4

84197068

HYDRAULIC VALVE

1шт.

5

84441294

HYD CONNECTOR

5шт.

6

452802

GROMMET

1шт.

7

418407

CLAMP,24mm ID, 8.5mm Bolt Hole, P Type

3шт.

8

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

6шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

9шт.

10

84448414

FLEXIBLE HOSE,6.35mm ID x 3700mm L, SAE 100R1

1шт.

11

9706685

NUT,M12 x 1.75, Cl 8

4шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

13

140119

WASHER,35.2mm ID x 42.5mm OD x 1.22mm Thk

5шт.

14

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

15

9838669

LUBE NIPPLE

1шт.

16

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

4шт.

17

431351

CLAMP,15mm ID, 8.5mm Bolt Hole, P Type

2шт.

18

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

1шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

20

9850318

HYD CONNECTOR

1шт.

21

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

22

9706755

NUT,M6, Cl 8

6шт.

23

9850033

SEAL

300 MM

1шт.

402208

HYD. OIL

1шт.
