Запчасти Case IH LB333R (15.10[01]) - NEEDLES - CLEANING KIT (15) - KNOTTER /WRAPPER

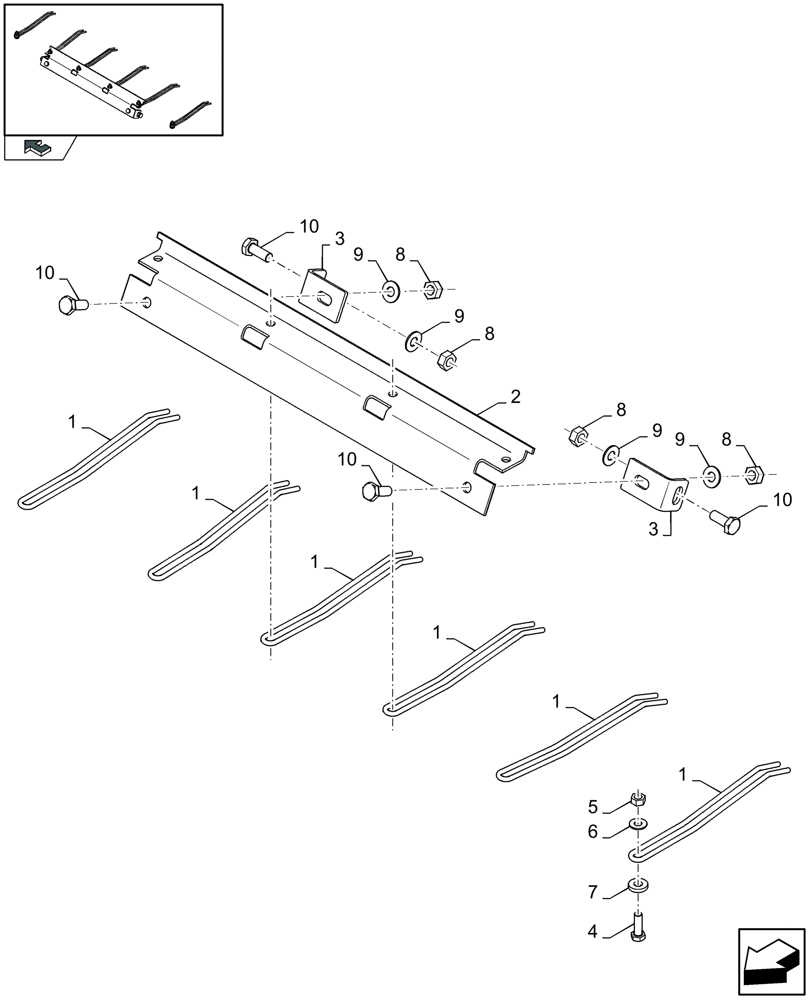

Схема запчастей Case IH LB333R - (15.10[01]) - NEEDLES - CLEANING KIT (15) - KNOTTER /WRAPPER
1
3
3
5
8
1
1
10
8
1
1
7
6
10
10
8
1
10
8
2
9
9
4
9
home
9

Артикул

Название

Примечание

Количество

1

84801637

SPRING

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

1

84801637

SPRING

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

2

84801091

SUPPORT

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

2

84801087

SUPPORT

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

3

84801089

ANGLE

2шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

5

9706690

NUT,M8 x 1.25, Cl 8

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

5

9706690

NUT,M8 x 1.25, Cl 8

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

7

350240

WASHER,9mm ID x 20mm OD x 4mm Thk

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

7

350240

WASHER,9mm ID x 20mm OD x 4mm Thk

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

8

100016

NUT,M10 x 1.5, Cl 8

4шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

Выбрано товаров: 28
