Запчасти Case IH LB333R (15.01[01]) - NEEDLES (15) - KNOTTER /WRAPPER

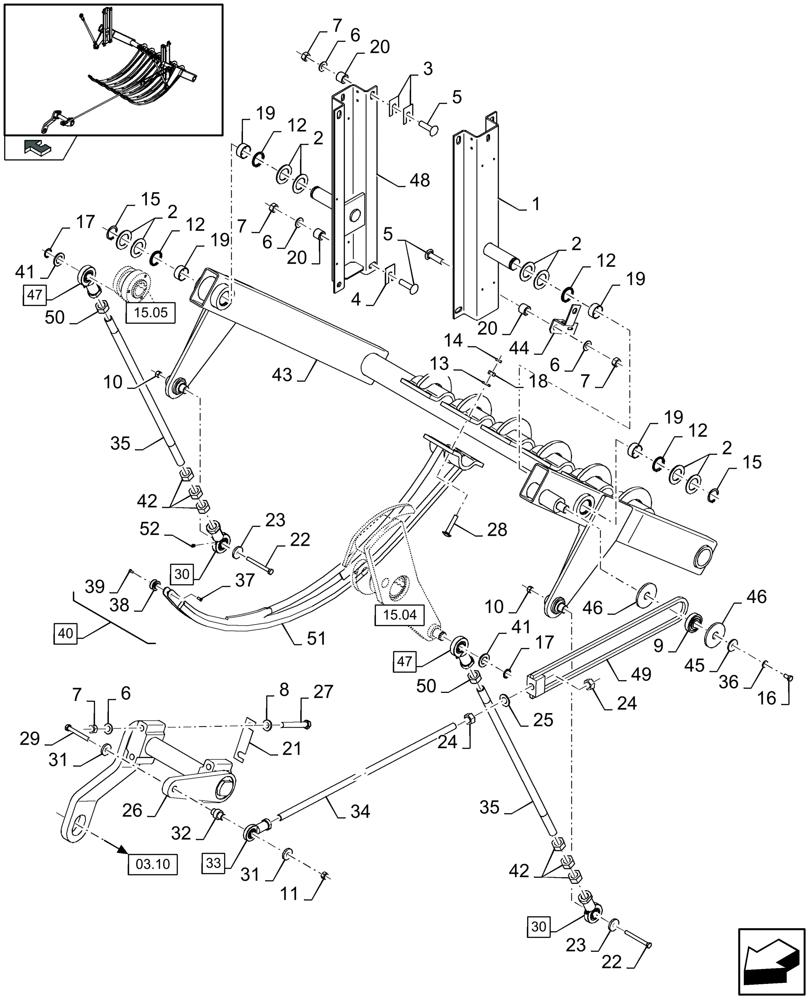

Схема запчастей Case IH LB333R - (15.01[01]) - NEEDLES (15) - KNOTTER /WRAPPER
50
10
7
20
3
7
7
40
11
5
48
home
30
31
19
51
46
49
41
41
12
35
20
47
6
6
16
15
36
4
10
52
17
25
1
12
46
22
33
44
31
15.05
24
39
42
30
22
47
2
24
17
28
45
34
21
13
42
6
12
6
19
26
14
5
23
2
37
32
43
27
23
15.04
12
15
2
2
19
35
8
50
29
9
19
03.10
38
20
7
18

Артикул

Название

Примечание

Количество

1

87644905

SUPPORT

LH

1шт.

FOR LB333S, LB333P, LB333R, LB433S, LB433R ONLY

1шт.

1

87644026

SUPPORT

LH

1шт.

FOR LB323S, LB323P, LB323R, LB423S, LB423R ONLY

1шт.

2

9838253

WASHER,40.5mm ID x 65mm OD x 2.99mm Thk

1шт.

3

9838200

ADJUSTING PLATE

1шт.

4

9838207

ADJUSTING PLATE

1шт.

5

120046

CARRIAGE BOLT,M16 x 60mm, Cl 8.8

8шт.

6

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

12шт.

7

100020

NUT,M16 x 2.0, Cl 8

12шт.

8

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

9

9838254

ROLLER BEARING,25mm ID x 62mm OD x 15mm W

1шт.

10

412141

NUT,M10 x 1.5, Cl 8

2шт.

11

100038

NUT,M12 x 1.75, Cl 8

1шт.

12

84078068

OIL SEAL,40mm ID x 50mm OD x 4.7mm Thk

SEALRING

4шт.

13

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

1шт.

14

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

15

370006

SNAP RING,M40, Ext

2шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

17

370002

CIRCLIP,M25, External

2шт.

18

9706685

NUT,M12 x 1.75, Cl 8

1шт.

19

429232

BUSHING,40mm ID x 44mm OD x 20mm L

4шт.

20

84021163

BUSHING,16.5mm ID x 30mm OD x 25mm L

8шт.

21

84019591

ADJUSTING PLATE

1шт.

22

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

2шт.

23

140083

WASHER,11mm ID x 40mm OD x 6mm Thk

2шт.

24

9706694

NUT,Hex, M20, Cl 8

2шт.

25

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

1шт.

26

84053023

CRANK

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

26

84053022

LEVER

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

27

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

4шт.

28

334263

BOLT,M12 x 65mm, Cl 8.8

1шт.

29

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

1шт.

30

9838940

BALL JOINT,M24 x 2, RH Thread

(52)

2шт.

31

140085

WASHER,13mm ID x 38mm OD x 6.35mm Thk

2шт.

32

9838240

BUSHING,12.5mm ID x 30mm OD x 43.6mm L

1шт.

33

9838238

BALL JOINT

(52)

1шт.

34

84019511

THREADED TIE-ROD

1шт.

35

84015415

ROD

2шт.

FOR LB333S, LB333P, LB333R, LB433S, LB433R ONLY

1шт.

35

84075941

ROD

2шт.

FOR LB323S, LB323P, LB323R, LB423S, LB423R ONLY

1шт.

36

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

37

84597375

SCREW,CSS, M5 x 16mm

2шт.

38

87690629

ROPE GUIDE ROLLER,31.5mm OD x 16mm L

2шт.

MAINTENANCE PART

1шт.

39

84597445

SCREW,FLAT, M5 x 14mm

2шт.

40

87723764

NEEDLE

(37 to 39, 51)

1шт.

FOR LB333S, LB333P, LB333R, LB433S, LB433R ONLY

1шт.

MAINTENANCE PART

1шт.

40

87723765

NEEDLE

(37 to 39, 51)

1шт.

MAINTENANCE PART

1шт.

FOR LB323S, LB323P, LB323R, LB423S, LB423R ONLY

1шт.

41

140022

WASHER,26mm ID x 44mm OD x 4mm Thk

2шт.

42

300355

NUT,M24 x 2, Cl 8

6шт.

43

84800698

SUPPORT

1шт.

FOR LB323S, LB323P, LB323R ONLY

1шт.

43

84068894

YOKE

1шт.

FOR LB333S, LB333P, LB333R ONLY

1шт.

43

84441967

SUPPORT

1шт.

FOR LB433S, LB433R ONLY

1шт.

43

84441968

SUPPORT

1шт.

FOR LB423S, LB423R ONLY

1шт.

44

84400112

SUPPORT

1шт.

45

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

1шт.

46

84007797

WASHER,26mm ID x 85mm OD x 6.35mm Thk

2шт.

47

84100072

BALL JOINT,M24 x 2, LH Thread

(52)

2шт.

48

87644905

SUPPORT

RH

1шт.

FOR LB333S, LB333P, LB333R, LB433S, LB433R ONLY

1шт.

48

87644030

SUPPORT

RH

1шт.

FOR LB323S, LB323P, LB323R, LB423S, LB423R ONLY

1шт.

49

9838208

LINK BLOCK

1шт.

50

84015413

NUT,M24 x 2, Cl 8

2шт.

51

87723761

NEEDLE

1шт.

FOR LB333S, LB333P, LB333R, LB433S, LB433R ONLY

1шт.

51

87723763

NEEDLE

1шт.

FOR LB323S, LB323P, LB323R, LB423S, LB423R ONLY

1шт.

52

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

Выбрано товаров: 80
