Запчасти Case IH LB333R (13.26[01]) - FEEDER TRIP (13) - FEEDER

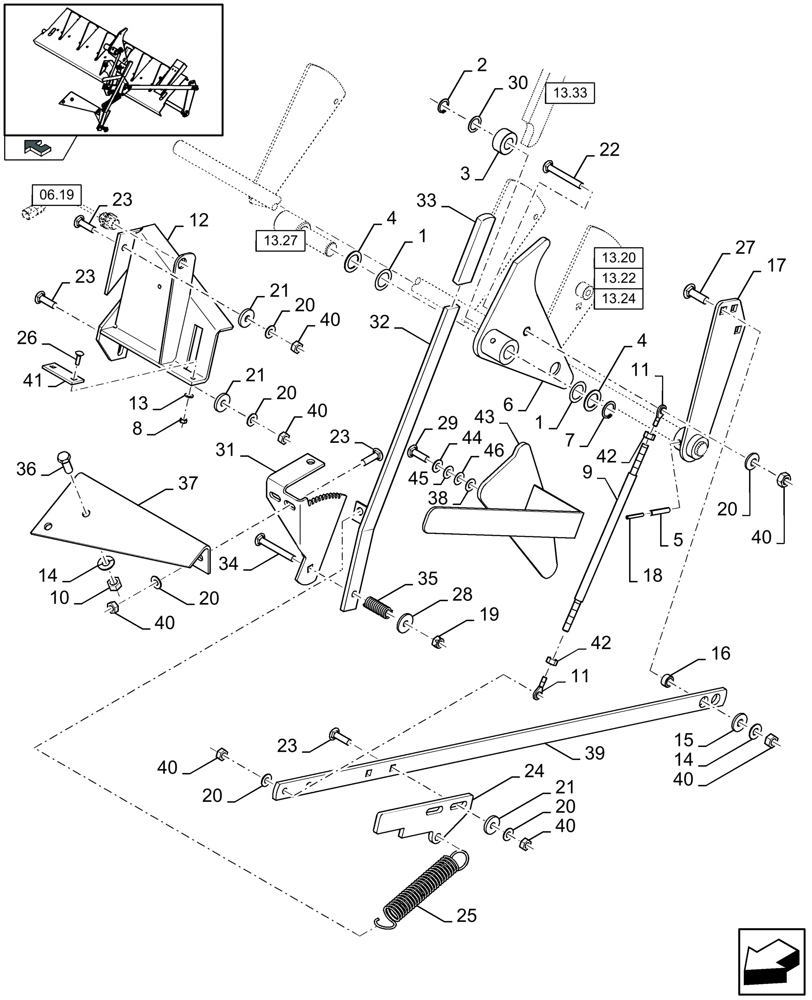

Схема запчастей Case IH LB333R - (13.26[01]) - FEEDER TRIP (13) - FEEDER
40
17
40
40
35
46
29
26
40
13.27
37
10
13.20
22
8
13.22
20
27
15
16
13.33
21
4
20
43
34
20
20
40
13.24
25
23
23
1
5
14
6
41
7
36
06.19
home
39
2
4
21
42
11
9
23
3
19
45
12
18
42
44
40
40
14
20
20
24
38
31
21
28
13
30
11
33
23
32
1

Артикул

Название

Примечание

Количество

1

9838305

WASHER,26mm ID x 38mm OD x 2.27mm Thk

3шт.

2

370024

CIRCLIP,M20, Ext

2шт.

3

9838377

ROLLER,20mm ID x 40mm OD x 19mm L

1шт.

4

140229

WASHER

3шт.

5

86977791

LOCK PIN,M8 x 45, Slotted

1шт.

6

84814721

LEVER

, Serial Range: -C945

1шт.

6

84527492

LEVER

, Start Serial: D946

1шт.

7

370002

CIRCLIP,M25, External

2шт.

8

9706755

NUT,M6, Cl 8

3шт.

9

84800079

ROD

1шт.

10

9706685

NUT,M12 x 1.75, Cl 8

1шт.

11

84439533

BALL JOINT HEAD,M10

2шт.

12

84817863

SUPPORT

, Serial Range: -C935

1шт.

FOR LB323S, LB323P, LB333S, LB333P, LB423S, LB433S ONLY

1шт.

12

84521141

SUPPORT

, Serial Range: -F936945

1шт.

FOR LB323S, LB323P, LB333S, LB333P, LB423S, LB433S ONLY

1шт.

12

84527535

SUPPORT

, Start Serial: D946

1шт.

FOR LB323S, LB323P, LB333S, LB333P, LB423S, LB433S ONLY

1шт.

12

84817483

SUPPORT

, Serial Range: -C935

1шт.

FOR LB323R, LB333R, LB423R, LB433R ONLY

1шт.

12

84521137

SUPPORT

, Serial Range: -F936945

1шт.

FOR LB323R, LB333R, LB423R, LB433R ONLY

1шт.

12

84565113

SUPPORT

, Start Serial: D946

1шт.

FOR LB323R, LB333R, LB423R, LB433R ONLY

1шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

15

9839232

WASHER,13mm ID x 32mm OD x 4mm Thk

1шт.

16

9839233

SPACER

1шт.

17

84074735

ARM

1шт.

18

86977792

SLOTTED PIN,5mm OD x 40mm L, Slotted

1шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Serial Range: -C935

8шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Start Serial: D936

9шт.

21

9839231

WASHER,11mm ID x 32mm OD x 5mm Thk

4шт.

22

84334564

HEX SOC SCREW,FLAT, M10 x 40mm, Cl 12.9

1шт.

23

412183

CARRIAGE BOLT,Short Sq Nk, M10 x 35mm, Cl 8.8

7шт.

24

84817865

STOP

1шт.

25

84021175

SPRING

1шт.

26

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

27

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

1шт.

28

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

1шт.

29

374893

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 55mm, Cl 8.8

, Serial Range: -C935

1шт.

29

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

, Start Serial: D936

1шт.

30

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

1шт.

31

84058200

SECTOR

TOOTHED SECTOR, Serial Range: -C945

1шт.

31

84485847

SECTOR

TOOTHED SECTOR, Start Serial: D946

1шт.

32

84058199

LEVER

1шт.

33

332809

HANDLE GRIP

1шт.

34

412189

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 80mm, Cl 8.8

1шт.

35

510375

SPRING

1шт.

36

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

FOR LB323R, LB333R, LB423R, LB433R ONLY

1шт.

37

84100904

SUPPORT

1шт.

FOR LB323R, LB333R, LB423R, LB433R ONLY

1шт.

38

300368

SPRING,10.199mm ID x 20mm OD x 1.1mm Thk

10 MM

4шт.

39

84817486

BRACKET

1шт.

40

100016

NUT,M10 x 1.5, Cl 8

, Serial Range: -C935

8шт.

40

100016

NUT,M10 x 1.5, Cl 8

, Start Serial: D936

9шт.

41

84078516

WEAR STRIP

1шт.

42

84807411

THIN NUT,Thin, M10 x 1.5, Cl 04

2шт.

43

87358125

LOCK

1шт.

44

140017

WASHER,M10 x 20mm OD x 2mm Thk

, Serial Range: -C935

2шт.

44

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

, Start Serial: D936

4шт.

45

140077

WASHER

10 MM, THK.: 1.6 MM, Serial Range: -C935

1шт.

46

331160

LOCKING RING,10.5mm ID x 18mm OD x 0.5mm Thk

10 MM, THK.: 0.5 MM, Serial Range: -C935

3шт.

Выбрано товаров: 65
