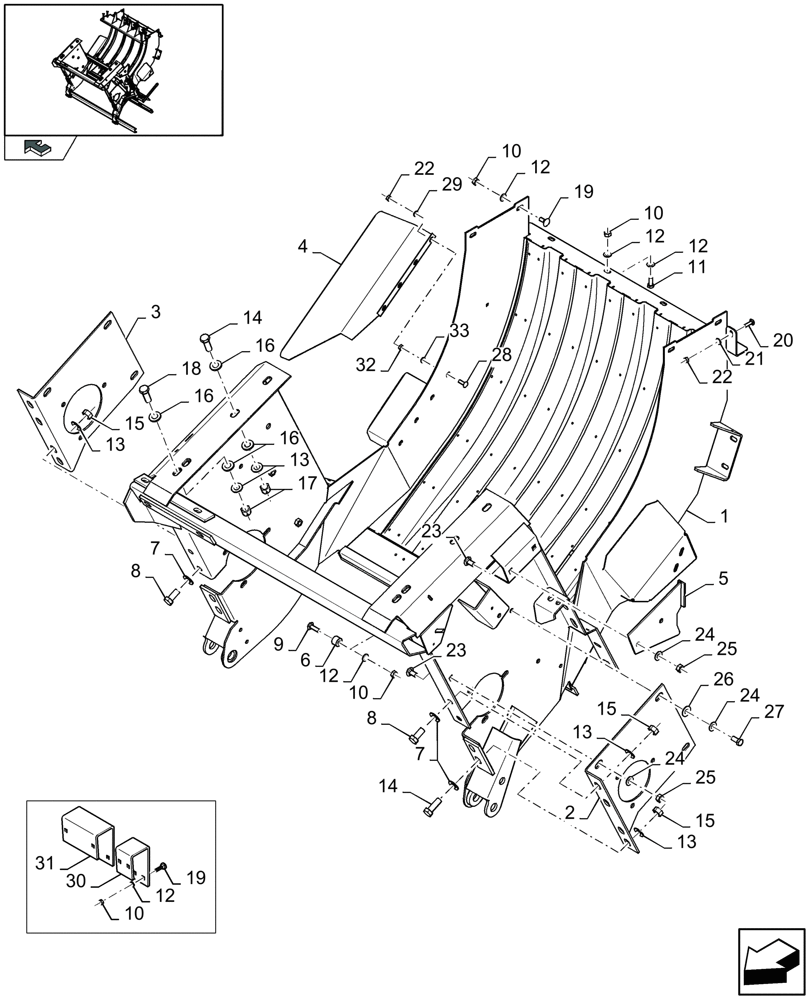

Запчасти Case IH LB333R (13.23[01]) - FEED CHAMBER, FRAME (13) - FEEDER

1

87567205

CHANNEL

1шт.

FOR LB323R, LB333R ONLY

1шт.

1

87542434

CHANNEL

1шт.

FOR LB423R, LB433R ONLY

1шт.

2

84042607

COVER PLATE

1шт.

3

84042608

COVER PLATE

1шт.

4

84043503

SHIELD

1шт.

5

84100665

PLATE

1шт.

6

84004713

BUSHING,10.5mm ID x 25mm OD x 18mm L

1шт.

7

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

8шт.

8

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

4шт.

9

412183

CARRIAGE BOLT,Short Sq Nk, M10 x 35mm, Cl 8.8

1шт.

10

100016

NUT,M10 x 1.5, Cl 8

9шт.

11

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

13

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

16шт.

14

385922

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8

8шт.

15

100020

NUT,M16 x 2.0, Cl 8

8шт.

16

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

16шт.

17

86000441

NUT,M16 x 2.0, Cl 8

8шт.

18

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

4шт.

19

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

20

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

22

9706690

NUT,M8 x 1.25, Cl 8

6шт.

23

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

4шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

25

9706685

NUT,M12 x 1.75, Cl 8

4шт.

26

543043

WASHER,13mm ID x 35mm OD x 2.5mm Thk

4шт.

27

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

28

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

29

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

30

84817511

BRACKET

2шт.

IN TOP FILL FLOW KIT

1шт.

31

84817509

BRACKET

5шт.

IN TOP FILL FLOW KIT

1шт.

32

9706690

NUT,M8 x 1.25, Cl 8

, Start Serial: D728

4шт.

33

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

, Start Serial: D728

4шт.
