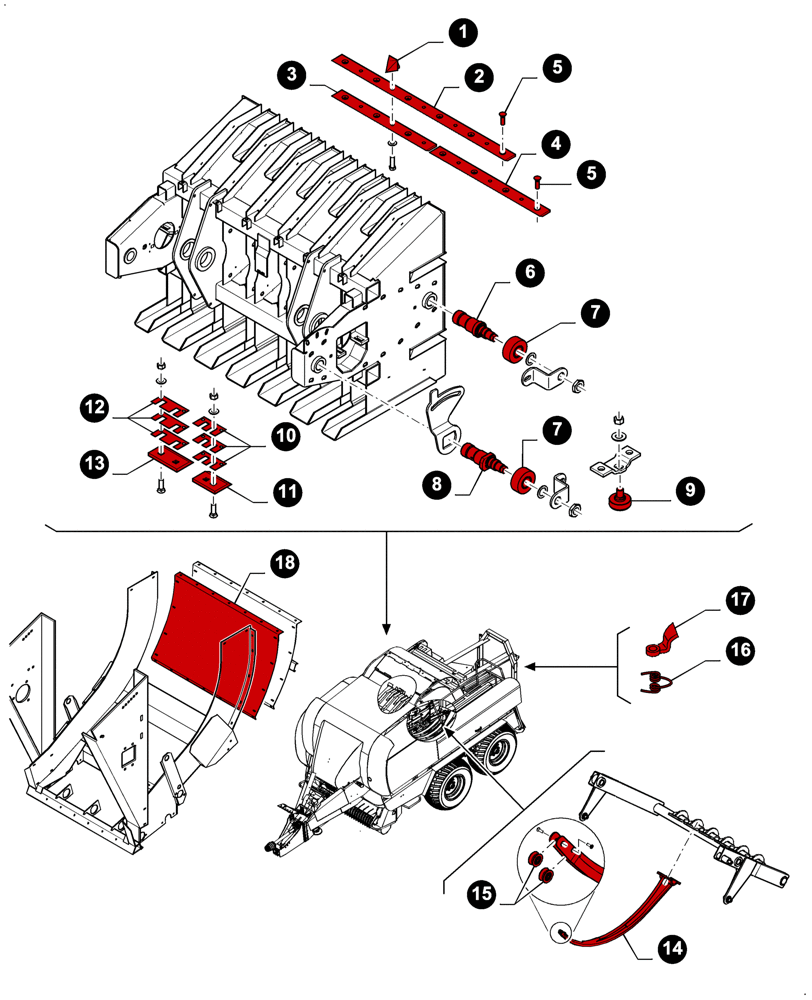

Запчасти Case IH LB333R (00.00LB025[01]) - MAINTENANCE PARTS, PLUNGER AND PLUNGER ROLLERS, NEEDLES (00) - GENERAL

1

84607550

GUIDE

1шт.

2

84400465

KNIFE

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

3

84814538

KNIFE,540mm L x 60mm W x 10mm Thk

RH

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

4

84814537

KNIFE,630mm L x 60mm W x 10mm Thk

LH

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

5

380420

BOLT

1шт.

6

84814847

SHAFT

3шт.

7

84100796

ROLLER,72mm OD x 29mm L

4шт.

8

84814846

SHAFT

1шт.

9

861325

BEARING ASSY,0.75" ID x 2.5" OD x 2.25"

2шт.

10

84817044

SHIM,45mm OD x 0.5mm Thk

6шт.

11

84814870

KNIFE,90mm L x 68mm W x 10mm Thk

2шт.

12

84817042

SHIM,45mm OD x 0.5mm Thk

9шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

12

84817042

SHIM,45mm OD x 0.5mm Thk

15шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

13

84814869

KNIFE,108mm L x 68mm W x 10mm Thk

3шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

13

84814868

KNIFE,116mm L x 68mm W x 10mm Thk

5шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

14

87723765

NEEDLE

(15)

1шт.

FOR LB323S, LB323P, LB323R, LB423S, LB423R ONLY

1шт.

14

87723764

NEEDLE

(15)

1шт.

FOR LB333S, LB333P, LB333R, LB433S, LB433R ONLY

1шт.

15

87690629

ROPE GUIDE ROLLER,31.5mm OD x 16mm L

2шт.

16

84806594

SPRING

1шт.

17

9837987

LEVER

1шт.

18

84000484

PLATE

1шт.

FOR LB323S, LB333S ONLY

1шт.

18

89839076

PLATE

1шт.

FOR LB423S, LB433S ONLY

1шт.
