Запчасти Case IH LB333R (08.28[01]) - TWINE BOXES LH SUPPORT (08) - SHEET METAL/DECALS

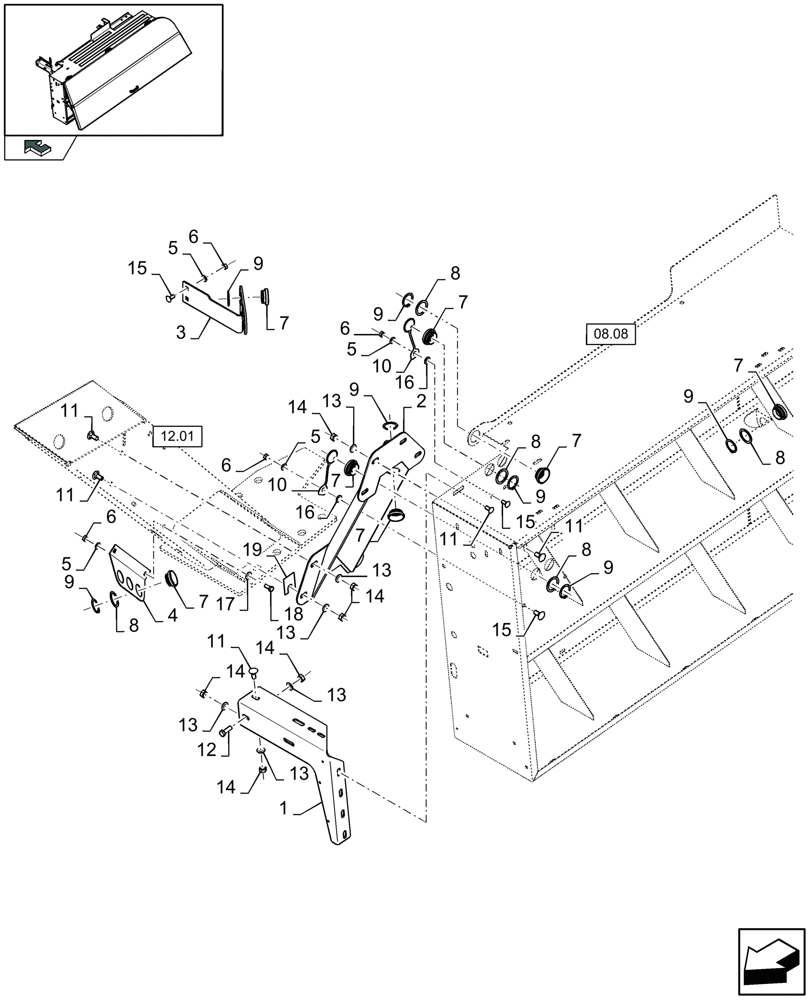

Схема запчастей Case IH LB333R - (08.28[01]) - TWINE BOXES LH SUPPORT (08) - SHEET METAL/DECALS
7
15
12
11
13
15
8
7
8
9
9
6
7
13
11
08.08
14
8
9
9
8
14
1
11
10
16
7
16
13
9
7
home
5
11
6
5
14
8
5
7
7
5
13
14
13
9
14
3
10
17
4
19
2
12.01
9
6
6
15
18
13
11

Артикул

Название

Примечание

Количество

1

84444396

SUPPORT

1шт.

2

84819698

SUPPORT

, Serial Range: -C867

1шт.

2

84319736

SUPPORT

, Start Serial: D868

1шт.

3

87729022

SUPPORT

1шт.

FOR LB323S, LB323R, LB323P, LB423S, LB423R ONLY

1шт.

3

84819382

SUPPORT

1шт.

FOR LB333S, LB333P, LB333R, LB433S, LB433R ONLY

1шт.

4

84819378

SUPPORT

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

6

9706690

NUT,M8 x 1.25, Cl 8

8шт.

7

87331610

GUIDE

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

7

87331610

GUIDE

15шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

8

84444540

WASHER,35mm ID x 45mm OD x 2mm Thk

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

8

84444540

WASHER,35mm ID x 45mm OD x 2mm Thk

14шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

9

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

9

370004

SNAP RING,M35 x 1.5mm Thk, External

15шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

10

87332566

FIXING PLATE

, Serial Range: -C927

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

10

84421934

LEAF SPRING

, Start Serial: D928

4шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

10

87332566

FIXING PLATE

, Serial Range: -C927

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

10

84421934

LEAF SPRING

, Start Serial: D928

6шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

11

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

15шт.

12

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

15шт.

14

100016

NUT,M10 x 1.5, Cl 8

15шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

9шт.

16

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.

17

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

19

84074027

SHIM

2шт.

Выбрано товаров: 39
