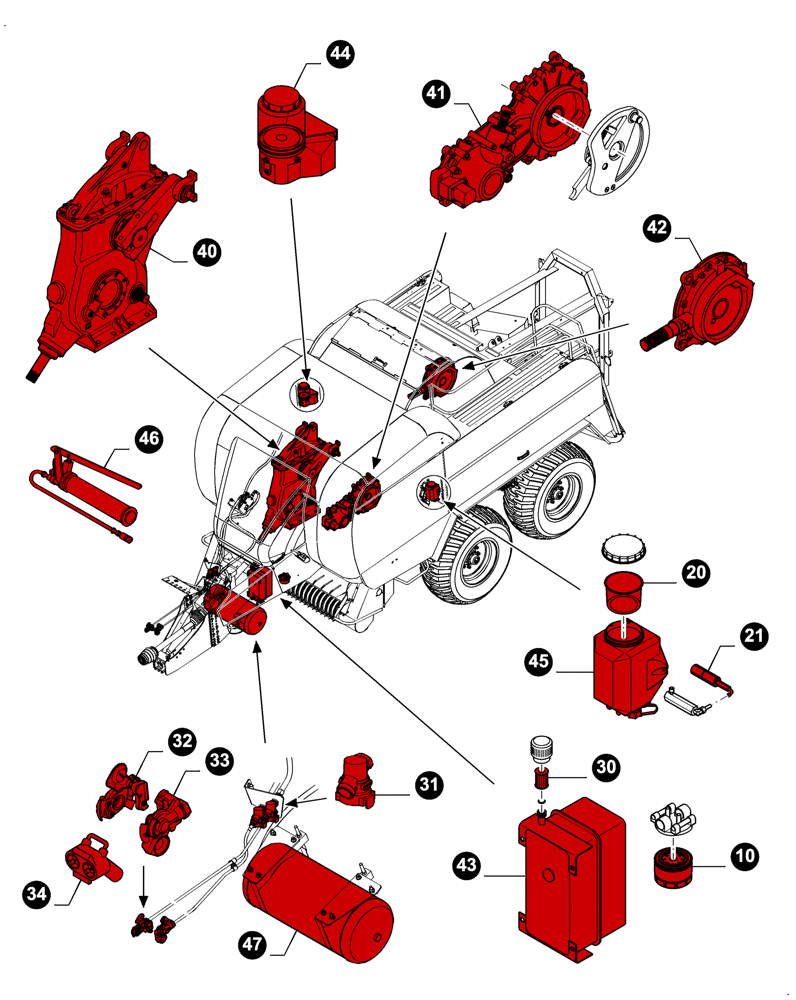

Запчасти Case IH LB333R (00.00LB021[01]) - MAINTENANCE PARTS, FILTERS & CAPACITIES (00) - GENERAL

- HYD. OIL FILTERS -

1шт.

10

84078520

HYDRAULIC OIL FILTER

Element: 25 Micron, Bale density system hydraulic oil tank

1шт.

WHEN THE INDICATOR ON TOP OF THE FILTER HEAD ENTERS THE RED SECTION

1шт.

REPLACE AT EVERY OIL CHANGE

1шт.

ANNUALLY OR EVERY 10000 BALES

1шт.

- LUBE OIL FILTERS -

1шт.

20

84818525

HYDRAULIC OIL FILTER

Strainer element, Automatic oiler reservoir

1шт.

ANNUALLY OR EVERY 10000 BALES

1шт.

250 HOURS

1шт.

21

84819466

HYDRAULIC OIL FILTER

Automatic oiler reservoir

1шт.

ANNUALLY OR EVERY 10000 BALES

1шт.

250 HOURS

1шт.

- AIR FILTERS -

1шт.

30

84819494

HYDRAULIC OIL FILTER

Breather element, Bale density system hydraulic oil tank

1шт.

REPLACE AT EVERY OIL CHANGE

1шт.

ANNUALLY OR EVERY 10000 BALES

1шт.

31

9512545

AIR FILTER

Cartridge, Air brake line filter

2шт.

DAMAGED FILTER CARTRIDGES MUST BE REPLACED

1шт.

ANNUALLY

1шт.

32

9512537

COUPLING BLOCK

Air filter, Brake control line, Pneumatic brakes

1шт.

YELLOW

1шт.

ANNUALLY

1шт.

33

9512546

COUPLING BLOCK

Air filter, Compressed air supply, Pneumatic brakes

1шт.

RED

1шт.

ANNUALLY

1шт.

34

84017270

COUPLING BLOCK

Air filter, Pneumatic brakes

1шт.

MANDATORY FOR ITALY ONLY

1шт.

ANNUALLY

1шт.

- CAPACITIES -

1шт.

40

Main drive gearbox oil (Qty. in liters), (5.3 US gallons) - CASE Akcela Gear 135H EP, 85W-140 - API GL5, MIL-L-2105 D

20шт.

ANNUALLY OR EVERY 10000 BALES

1шт.

AFTER THE FIRST 50 HOURS

1шт.

41

Stuffter drive gearbox oil (Qty. in liters), (1 US gallons) - CASE Akcela Gear 135H EP, 85W-140 - API GL5, MIL-L-2105 D

3.75шт.

ANNUALLY OR EVERY 10000 BALES

1шт.

250 HOURS

1шт.

42

Knotter drive Gearbox oil (Qty. in liters), (0.7 US gallons) - CASE Akcela Gear 135H EP, 85W-140 - API GL5, MIL-L-2105 D

2.75шт.

ANNUALLY OR EVERY 10000 BALES

1шт.

250 HOURS

1шт.

43

Bale density hydraulic circuit oil tank (Qty. in liters), (2.4 US gallons): Entire system capacity (4 liters - 1.05 US gallons: Tank cap.) - CASE Akcela Hydraulic Fluid BIO MS 1230, DIN 51524 part 2 HV46 or ISO VG 46, API CE, MIL-L-2104 E, API CF2/SJ

9шт.

ANNUALLY OR EVERY 10000 BALES

1шт.

250 HOURS

1шт.

44

Automatic centralised greasing system (Qty. in liters), (1.05 US gallons) - CASE Akcela Moly Multipurpose Grease 251H EP, Lithium NLGI 2

4шт.

45

Automatic oil lubrication system (Qty. in liters), (1.32 US gallons): Reservoir capacity - CASE Akcela Hydraulic Fluid 32 MS 1216 or CASE Akcela Hydraulic Fluid 46 MS 1216 or CASE Akcela Hydraulic Fluid BIO MS 1230, SAE 15W-40, DIN 51524 part 2 HV46

5шт.

46

Grease - CASE Akcela Moly Multipurpose Grease 251H EP, Lithium NLGI 2

1шт.

47

Air reservoir - WABCO 40 L, EN286-2 (Qty. in liters), (10.6 US gallons), 14.5 bar (210.3 psi), Air brake system

40шт.
