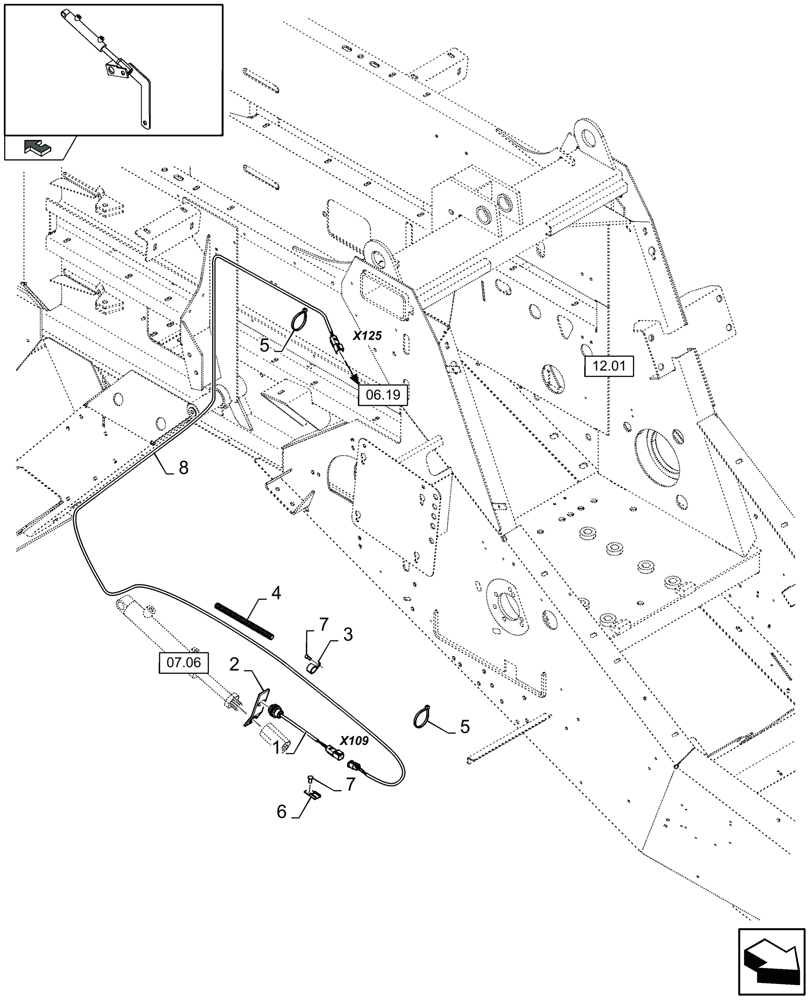

Запчасти Case IH LB333P (06.10[01]) - HYDRAULICS KNIVES CROPCUTTER, ELECTRICITY (06) - ELECTRICAL SYSTEMS

1

84058863

SENSOR

B10 - STATUS CUTTER, Serial Range: -C867

1шт.

MAINTENANCE PART

1шт.

1

87680717

SENSOR

B10 - STATUS CUTTER, Serial Range: -F868915

1шт.

MAINTENANCE PART

1шт.

1

87342073

SENSOR

B10 - STATUS CUTTER, Start Serial: D916

1шт.

MAINTENANCE PART

1шт.

2

84078953

COVER PLATE

1шт.

3

84818441

CLAMP,12.3mm ID, 6.7mm Bolt Hole, P Type

4шт.

4

NS

NOT SERVICED

M= 500 MM

1шт.

5

323597

CABLE TIE,165mm OAL x 9mm Thk

CABLE STRAP

9шт.

6

84058832

CLIP

1шт.

7

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

2шт.

8

84073235

WIRE HARNESS

1шт.

SEE FIGURE 06.506

1шт.
