Запчасти Case IH LB333P (06.07[01]) - MONITOR, AFS 300 AND BLACK AND WHITE (06) - ELECTRICAL SYSTEMS

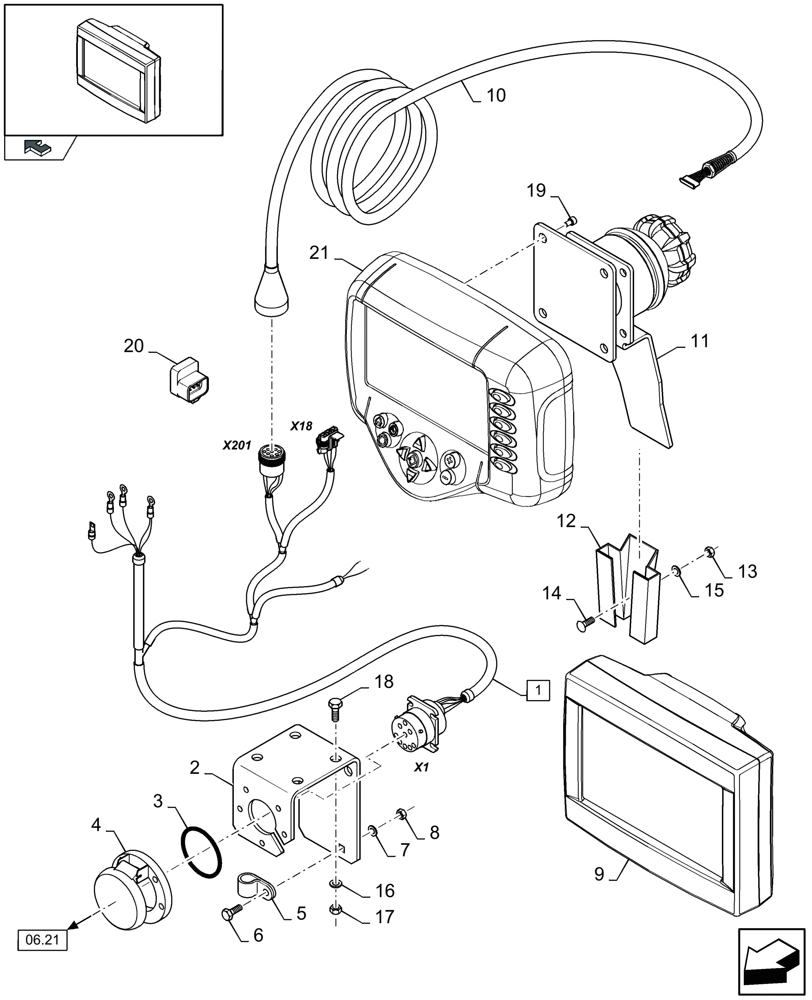

Схема запчастей Case IH LB333P - (06.07[01]) - MONITOR, AFS 300 AND BLACK AND WHITE (06) - ELECTRICAL SYSTEMS
1
home
7
19
9
06.21
8
5
12
2
11
18
3
20
10
4
15
6
17
16
21
13
14

Артикул

Название

Примечание

Количество

1

87526033

WIRE HARNESS

(2 to 8)

1шт.

SEE FIGURE 06.526

1шт.

2

84437400

BRACKET

1шт.

3

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

4

86606228

COVER

1шт.

5

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

84181256

CONTROL MONITOR

, Serial Range: -C751

1шт.

FOR AFS 300 ONLY

1шт.

84486874R

REMAN-ELECT MONITOR

LB333P 'PACKER CUTTER', LB333R, LB433R, Both 'ROTOR CUTTER', LB333S, LB433S, All Serial Range: -C751 (9/08-), Reman for New PN 84181256

1шт.

84486874C

CORE-MONITOR

Return Number

1шт.

9

84209746

CONTROL MONITOR

, Serial Range: -F752881

1шт.

FOR AFS 300 ONLY

1шт.

84486874R

REMAN-ELECT MONITOR

LB333P 'PACKER CUTTER', LB333R, LB433R, Both 'ROTOR CUTTER', LB333S, LB433S, All Serial Range: -F752881 (9/08-), Reman for New PN 84209746

1шт.

84486874C

CORE-MONITOR

Return Number

1шт.

9

84410268

CONTROL MONITOR

, Serial Range: -F882905

1шт.

FOR AFS 300 ONLY

1шт.

84486874R

REMAN-ELECT MONITOR

LB333P 'PACKER CUTTER', LB333R, LB433R, Both 'ROTOR CUTTER', LB333S, LB433S, All Serial Range: -F882905 (9/08-), Reman for New PN 84410268

1шт.

84486874C

CORE-MONITOR

Return Number

1шт.

9

84486874

DISPLAY

, Start Serial: D906

1шт.

FOR AFS 300 ONLY

1шт.

84486874R

REMAN-ELECT MONITOR

LB333P 'PACKER CUTTER', LB433R, LB333R, Both 'ROTOR CUTTER', LB333S, LB433S, All Start Serial: D906 (9/08-)

1шт.

84486874C

CORE-MONITOR

Return Number

1шт.

10

87526506

WIRE HARNESS

, Serial Range: -C881

1шт.

SEE FIGURE 06.527

1шт.

10

84353485

WIRE HARNESS

, Start Serial: D882

1шт.

SEE FIGURE 06.527

1шт.

11

87758391

SUPPORT

, Serial Range: -C813

1шт.

11

84233623

SUPPORT

, Start Serial: D814

1шт.

12

9837606

CLIP

1шт.

13

9706690

NUT,M8 x 1.25, Cl 8

2шт.

14

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

17

100016

NUT,M10 x 1.5, Cl 8

4шт.

18

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

19

87016470

HEX SOC SCREW,M6 x 1 x 10mm, Cl 8.8

4шт.

20

87601142

ELEC CONNECTOR,Female, 6 Cavities

, Start Serial: D700

1шт.

21

87589712

MONITOR

, Serial Range: -C867

1шт.

FOR BLACK AND WHITE ONLY

1шт.

21

84330606

MONITOR

, Serial Range: -F868881

1шт.

FOR BLACK AND WHITE ONLY

1шт.

21

84470842

MONITOR

, Start Serial: D882

1шт.

FOR BLACK AND WHITE ONLY

1шт.

Выбрано товаров: 46
