Запчасти Case IH LB333P (05.06[01]) - TANDEM AXLE - SUSPENSION AND TUBE (05) - AXLE

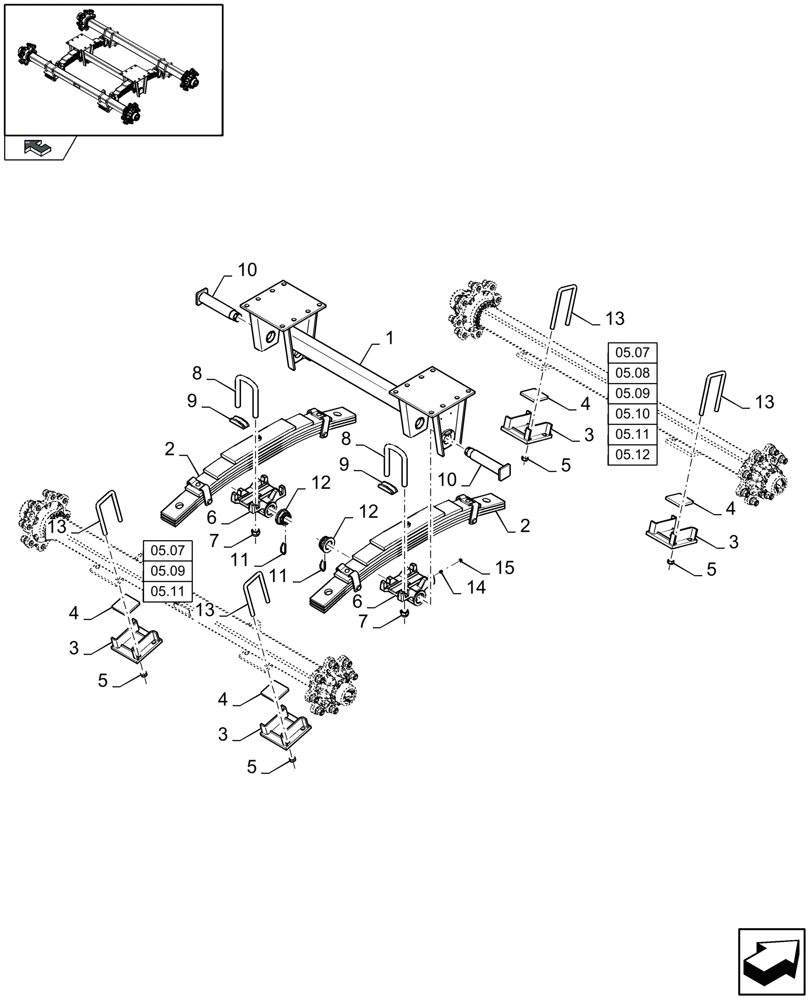

Схема запчастей Case IH LB333P - (05.06[01]) - TANDEM AXLE - SUSPENSION AND TUBE (05) - AXLE
11
4
8
2
4
10
9
6
12
5
9
5
3
7
6
4
1
10
7
14
11
05.10
5
3
13
2
05.08
3
05.12
5
13
4
15
05.07
05.09
home
05.09
3
13
05.11
13
05.07
home
05.11
12
8

Артикул

Название

Примечание

Количество

1

84215240

BEAM

1шт.

FOR LB333S, LB333P, LB333R ONLY

1шт.

NOT FOR STEERED AXLE

1шт.

WITHOUT BRAKES

1шт.

1

84215239

BEAM

1шт.

FOR LB433S, LB433R ONLY

1шт.

NOT FOR STEERED AXLE

1шт.

WITHOUT BRAKES

1шт.

1

84215244

BEAM

1шт.

FOR LB333S, LB333P, LB333R ONLY

1шт.

FOR STEERED AXLE ONLY

1шт.

WITHOUT BRAKES

1шт.

1

84215245

BEAM

1шт.

FOR LB433S, LB433R ONLY

1шт.

FOR STEERED AXLE ONLY

1шт.

WITHOUT BRAKES

1шт.

1

84215241

BEAM

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

NOT FOR STEERED AXLE

1шт.

FOR PNEUMATIC BRAKES ONLY

1шт.

1

84215243

BEAM

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

NOT FOR STEERED AXLE

1шт.

FOR PNEUMATIC BRAKES ONLY

1шт.

1

84215248

BEAM

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

FOR STEERED AXLE ONLY

1шт.

FOR PNEUMATIC BRAKES ONLY

1шт.

1

84215249

BEAM

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR STEERED AXLE ONLY

1шт.

FOR PNEUMATIC BRAKES ONLY

1шт.

1

84215274

BEAM

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

NOT FOR STEERED AXLE

1шт.

FOR HYDRAULIC BRAKES ONLY

1шт.

1

84215242

BEAM

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

NOT FOR STEERED AXLE

1шт.

FOR HYDRAULIC BRAKES ONLY

1шт.

1

84215246

BEAM

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

FOR STEERED AXLE ONLY

1шт.

FOR HYDRAULIC BRAKES ONLY

1шт.

1

84215247

BEAM

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

FOR STEERED AXLE ONLY

1шт.

FOR HYDRAULIC BRAKES ONLY

1шт.

2

84100544

SUSPENSION

2шт.

3

84100553

SUPPORT

4шт.

4

84100552

INSULATOR BLOCK

4шт.

5

84100555

NUT

16шт.

6

84100545

SUPPORT

2шт.

7

84011668

NUT,M24 x 2, Cl 8.8

8шт.

8

84100548

BRIDGE

4шт.

9

84100547

SHIM

4шт.

10

84100550

SHAFT

2шт.

11

84212727

COTTER PIN

2шт.

12

84216778

CROWN NUT

2шт.

13

84100554

BRIDGE

8шт.

14

300919

LUBE NIPPLE

2шт.

15

84216826

DUST CAP

2шт.

Выбрано товаров: 62
