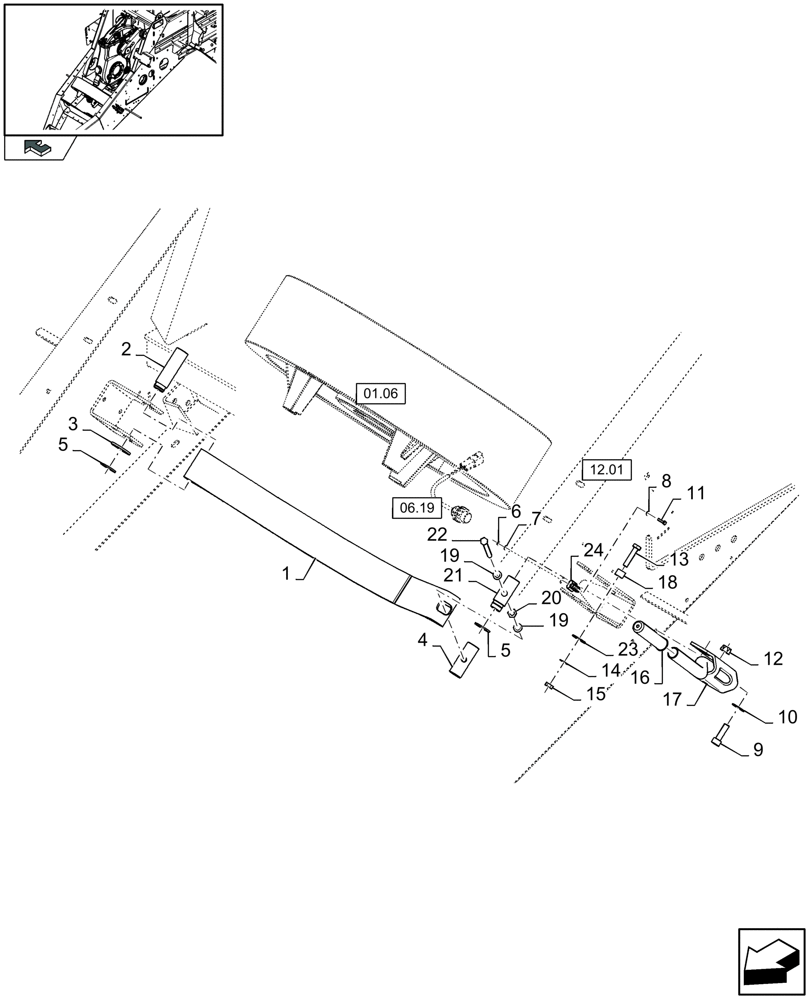

Запчасти Case IH LB333P (01.07[01]) - FLYWHEEL BRAKE (01) - POWER TAKE OFF

1

87368630

BRAKE BAND

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

MAINTENANCE PART

1шт.

1

87368632

BRAKE BAND,75mm W x 3mm Thk

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

MAINTENANCE PART

1шт.

2

9837784

ROD

1шт.

3

388270

SPACER,31mm ID x 50mm OD x 4mm L

1шт.

4

9837781

PIN,30mm OD x 80mm L

1шт.

5

370002

CIRCLIP,M25, External

2шт.

6

100012

NUT,M4 x 0.7, Cl 8

1шт.

7

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

1шт.

8

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

9

9837786

HEX SOC SCREW,M12 x 20mm, Cl 8.8, Full Thd

2шт.

10

543043

WASHER,13mm ID x 35mm OD x 2.5mm Thk

2шт.

11

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

, Serial Range: -C719

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

11

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

, Start Serial: D720

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

11

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

12

100038

NUT,M12 x 1.75, Cl 8

2шт.

13

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

15

100016

NUT,M10 x 1.5, Cl 8

1шт.

16

9837774

HANDLE GRIP

1шт.

17

84801708

HANDLE

1шт.

18

84989876

BUSHING,11mm ID x 20mm OD x 14mm L

1шт.

19

140084

WASHER

, Serial Range: -C927

1шт.

19

140084

WASHER

, Start Serial: D928

2шт.

20

9706685

NUT,M12 x 1.75, Cl 8

1шт.

21

87549340

SPINDLE

1шт.

22

9837782

BOLT,Hex, M12 x 1.75 x 230mm, Cl 8.8

1шт.

23

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

1шт.

24

323307

CLAMP

1шт.
