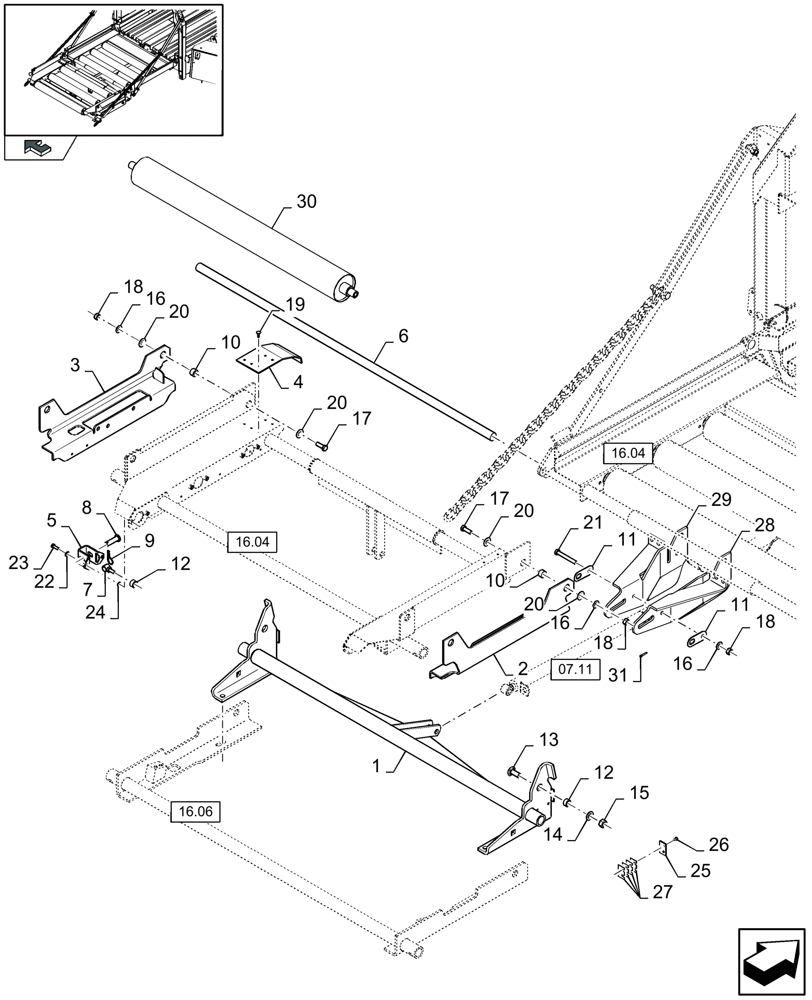

Запчасти Case IH LB333P (16.01[01]) - ELECTRICITY, BALE WEIGHING SYSTEM, UPPER FRAME (16) - BALE EJECTOR

1

84147955

FRAME

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

1

87698664

FRAME

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

2

87699043

SUPPORT

1шт.

3

87699046

SUPPORT

1шт.

4

87717614

PLATE

2шт.

5

84165058

PROFILE

1шт.

6

84175953

ROD

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

7

447598

EYEBOLT,M16

1шт.

8

362528

CLEVIS PIN,M16 x 55mm OAL

1шт.

9

370539

COTTER PIN,4.4mm x 52.8mm L

1шт.

10

87622404

BUSHING

4шт.

11

84175934

SLAT

2шт.

12

9837933

SPACER,17mm ID x 25.4mm OD x 12.5mm L

3шт.

13

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

2шт.

14

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

15

100020

NUT,M16 x 2.0, Cl 8

2шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

17

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

, Serial Range: -C839

4шт.

17

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

, Start Serial: D840

4шт.

18

9706685

NUT,M12 x 1.75, Cl 8

5шт.

19

84069248

RIVET,Pop, 4.8mm OD x 20.7mm L

12шт.

20

543043

WASHER,13mm ID x 35mm OD x 2.5mm Thk

8шт.

21

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

1шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

23

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

24

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

25

84211993

PLATE

2шт.

26

14441321

HEX SOC SCREW,M6 x 16mm, Cl 8.8

4шт.

27

84212194

SHIM

8шт.

28

84213193

SUPPORT

1шт.

29

84213189

SUPPORT

1шт.

30

84205753

ROLLER,108mm OD x 1069mm L

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

30

84206214

ROLLER

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

31

130007

COTTER PIN,M4 x 25

3шт.
