Запчасти Case IH LB333P (15.09[01]) - KNOTTER FANS, CLEANING (15) - KNOTTER /WRAPPER

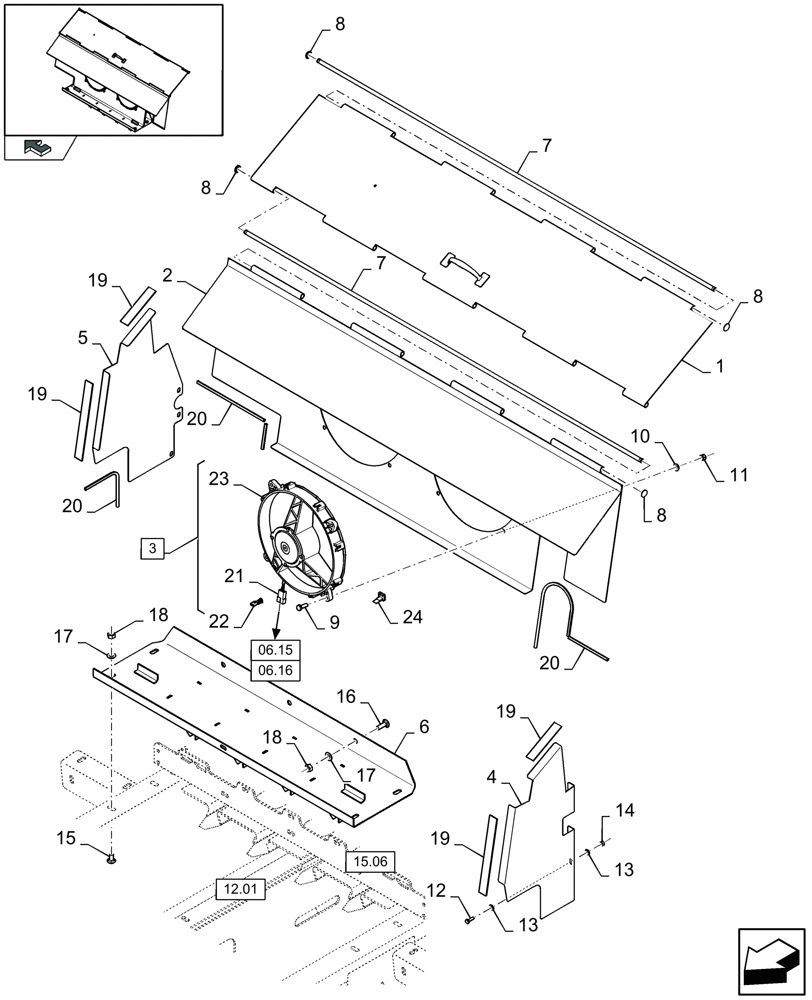

Схема запчастей Case IH LB333P - (15.09[01]) - KNOTTER FANS, CLEANING (15) - KNOTTER /WRAPPER
19
12.01
7
24
18
6
19
13
15
home
9
1
17
12
19
14
16
2
06.16
20
13
10
17
19
8
5
3
15.06
8
4
20
8
23
06.15
11
21
20
18
7
22
8

Артикул

Название

Примечание

Количество

1

87478211

COVER PLATE

1шт.

FOR LB333S, LB333P, LB333R ONLY

1шт.

1

87728075

COVER PLATE

1шт.

FOR LB433S, LB433R ONLY

1шт.

2

87478215

MOUNTING PLATE

1шт.

FOR LB333S, LB333P, LB333R ONLY

1шт.

2

87690579

MOUNTING PLATE

1шт.

FOR LB433S, LB433R ONLY

1шт.

3

84429995

FAN

(21 to 23), Serial Range: -C847

2шт.

FOR LB333S, LB333P, LB333R ONLY

1шт.

3

84275427

FAN

(21 to 24), Start Serial: D848

2шт.

FOR LB333S, LB333P, LB333R ONLY

1шт.

3

84429995

FAN

(21 to 23), Serial Range: -C847

3шт.

FOR LB433S, LB433R ONLY

1шт.

3

84275427

FAN

(21 to 24), Start Serial: D848

3шт.

FOR LB433S, LB433R ONLY

1шт.

4

87717655

WINDSHIELD

1шт.

5

87717656

WINDSHIELD

1шт.

6

87657406

PLATE

1шт.

FOR LB333S, LB333P, LB333R ONLY

1шт.

6

87657400

PLATE

1шт.

FOR LB433S, LB433R ONLY

1шт.

7

87478237

ARTICULATED SHAFT

2шт.

FOR LB333S, LB333P, LB333R ONLY

1шт.

7

87731220

ARTICULATED SHAFT

2шт.

FOR LB433S, LB433R ONLY

1шт.

8

431021

SPECIAL WASHER

4шт.

FOR LB433S, LB433R ONLY

1шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

FOR LB333S, LB333P, LB333R ONLY

1шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

12шт.

FOR LB433S, LB433R ONLY

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

FOR LB333S, LB333P, LB333R ONLY

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

FOR LB433S, LB433R ONLY

1шт.

11

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

FOR LB333S, LB333P, LB333R ONLY

1шт.

11

86629542

NUT,M8 x 1.25, Cl 8.8

12шт.

FOR LB433S, LB433R ONLY

1шт.

12

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

14

9706755

NUT,M6, Cl 8

2шт.

15

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

16

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

3шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

7шт.

18

100016

NUT,M10 x 1.5, Cl 8

7шт.

19

401278

SEALING STRIP

L = 680 MM

1шт.

20

401266

STRIP-GASKET

L = 1047 MM

1шт.

21

334698

TERMINAL CONNECTOR,Female

, Serial Range: -C847

1шт.

21

84074630

CONTACT HOUSING,Male, 2 Pole

, Start Serial: D848

1шт.

22

334588

TERMINAL CONNECTOR,1.00 - 2.50mm

, Serial Range: -C847

2шт.

22

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

, Start Serial: D848

2шт.

23

NSS

NOT SOLD SEPARAT

1шт.

24

86500166

ELEC CONNECTOR

, Start Serial: D848

1шт.

Выбрано товаров: 55
