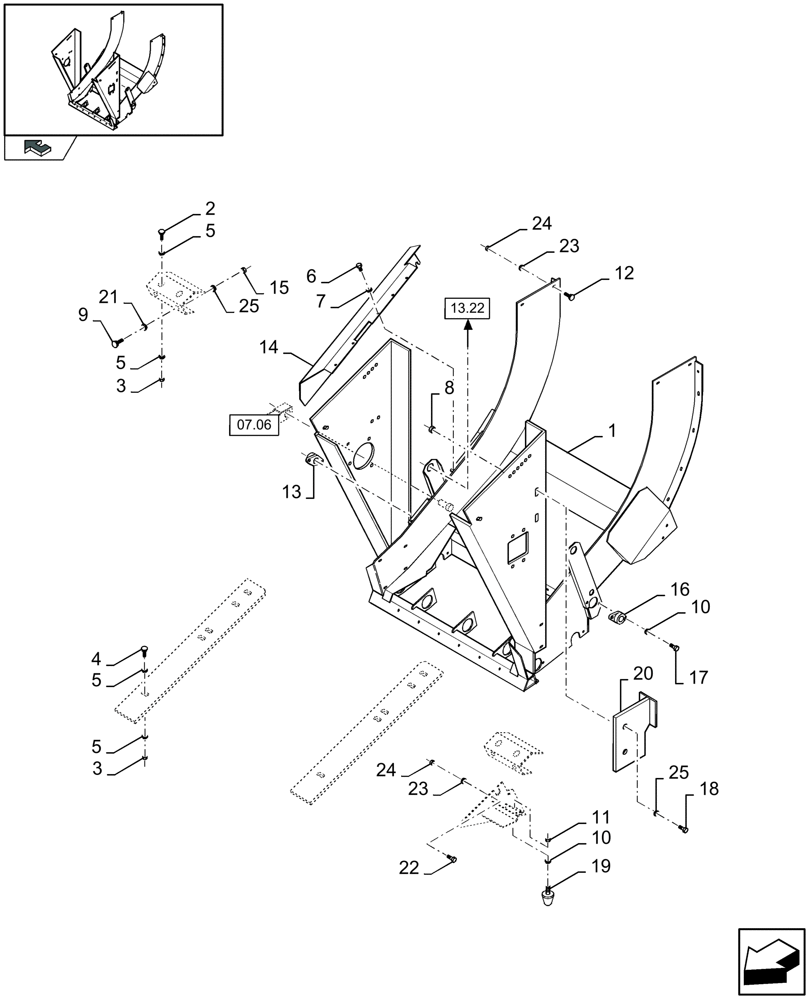

Запчасти Case IH LB333P (13.21[01]) - FEED CHAMBER, FRAME (13) - FEEDER

1

87682608

CHANNEL

1шт.

2

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

1шт.

3

86000441

NUT,M16 x 2.0, Cl 8

1шт.

4

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

1шт.

5

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

1шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

5шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

5шт.

8

9706685

NUT,M12 x 1.75, Cl 8

1шт.

9

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

2шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

11

9706690

NUT,M8 x 1.25, Cl 8

1шт.

12

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

13

9839087

NYLON BEARING,25.5mm ID x 50mm OD x 30mm Thk

1шт.

14

84818961

SHIELD

1шт.

15

100020

NUT,M16 x 2.0, Cl 8

2шт.

16

9837806

FLANGED BEARING,25mm ID

1шт.

17

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

18

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

19

84005089

STOP,M8 x 1.25 x 50mm, Rubber

2шт.

20

84100500

PLATE

1шт.

21

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

22

412183

CARRIAGE BOLT,Short Sq Nk, M10 x 35mm, Cl 8.8

1шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

24

100016

NUT,M10 x 1.5, Cl 8

1шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.
