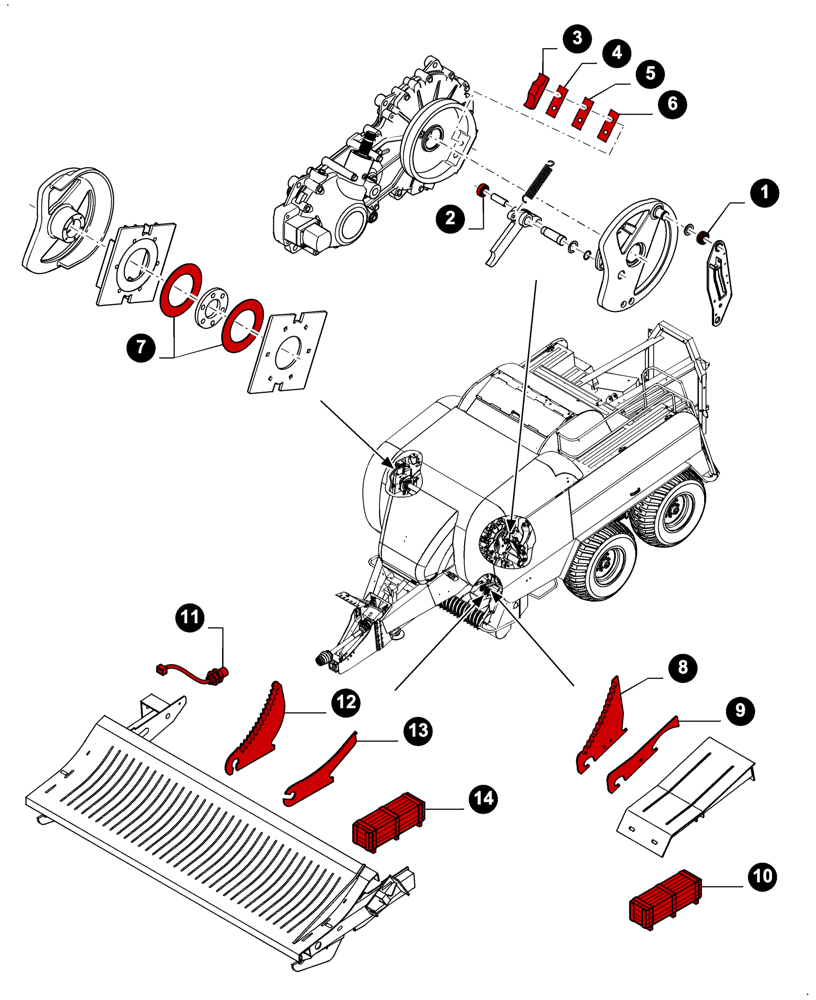

Запчасти Case IH LB333P (00.00LB024[01]) - MAINTENANCE PARTS, KNIVES, KNIFE DRAWER, SHUTTLE FEEDER AND TRANSMISSION (00) - GENERAL

1

397927

SPHERICAL BEARING,30mm ID x 47mm OD x 22mm W

2шт.

2

84400783

ROLLER

1шт.

3

84100758

INSERT

Stuffer clutch

1шт.

REPLACE THE NOTCH ANNUALLY

1шт.

NEW PARTS HAVE TO BE ORDERED EVERY TWO YEARS

1шт.

4

84100755

SHIM,0.3mm Thk

1шт.

5

84100756

SHIM,0.4mm Thk

1шт.

6

84100757

SHIM,0.5mm Thk

2шт.

7

9838773

DISC

, Serial Range: -C927

2шт.

7

84476390

BRAKE DISC,127mm ID x 203mm OD x 3.2mm Thk

, Start Serial: D928

2шт.

8

84056426

KNIFE

6шт.

UNIVERSAL, SILAGE AND STRAW, SLOTTED HOLE, EXCELLENT BALE COHERENCE

1шт.

FOR LB323P, LB333P ONLY

1шт.

8

84058221

KNIFE

6шт.

HARD-FACED KNIVES, NOT FOR VERY STONY CONDITIONS

1шт.

FOR LB323P, LB333P ONLY

1шт.

9

84042301

COVER PLATE

6шт.

FOR LB323P, LB333P ONLY

1шт.

10

84110679

DIA KIT, HARVESTER

1шт.

KIT OF 6 HARD-FACED KNIVES - 84058221

1шт.

FOR LB323P, LB333P ONLY

1шт.

11

84058863

SENSOR

B10 - Status cutter, Serial Range: -C867

1шт.

FOR LB323P, LB333P ONLY

1шт.

11

87680717

SENSOR

B10 - Status cutter, Serial Range: -F868915

1шт.

FOR LB323P, LB333P ONLY

1шт.

11

87342073

SENSOR

B10 - Status cutter, Start Serial: D916

1шт.

FOR LB323P, LB333P ONLY

1шт.

11

87342073

SENSOR

B10 - Status cutter, Serial Range: -C867

1шт.

FOR LB323R, LB333R, LB423R, LB433R ONLY

1шт.

11

87680717

SENSOR

B10 - Status cutter, Serial Range: -F868915

1шт.

FOR LB323R, LB333R, LB423R, LB433R ONLY

1шт.

11

87342073

SENSOR

B10 - Status cutter, Start Serial: D916

1шт.

FOR LB323R, LB333R, LB423R, LB433R ONLY

1шт.

12

84056505

KNIFE

1шт.

FOR LB323R, LB333R, LB423R, LB433R ONLY

1шт.

12

84058219

KNIFE

1шт.

FOR LB323R, LB333R, LB423R, LB433R ONLY

1шт.

HARD-FACED KNIVES, NOT FOR VERY STONY CONDITIONS

1шт.

13

84056868

COVER PLATE

23шт.

FOR LB323R, LB333R ONLY

1шт.

13

84056868

COVER PLATE

33шт.

FOR LB423R, LB433R ONLY

1шт.

14

84110678

DIA KIT, HARVESTER

1шт.

KIT OF 23 HARD-FACED KNIVES - 84058219

1шт.

FOR LBX322R, LBX332R, LBX422R, LBX432R ONLY

1шт.

14

84110677

DIA KIT, HARVESTER

1шт.

KIT OF 33 HARD-FACED KNIVES - 84058219

1шт.

FOR LBX322R, LBX332R, LBX422R, LBX432R ONLY

1шт.
