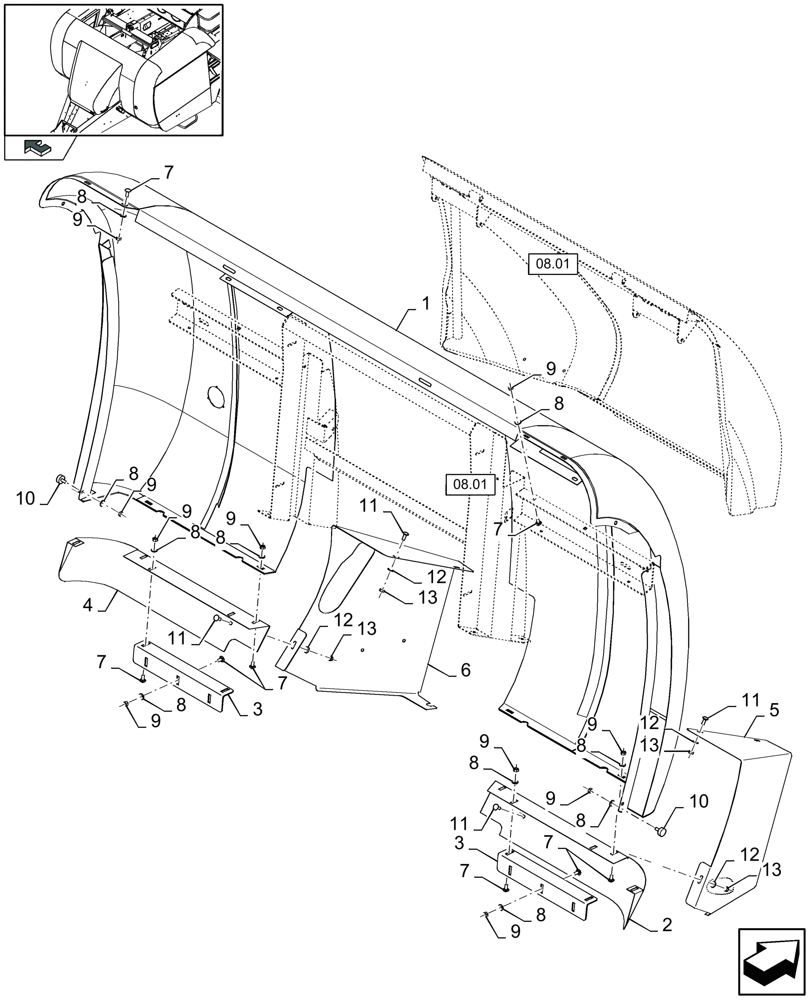

Запчасти Case IH LB333P (08.26[01]) - PROTECTIONS FLYWHEEL (08) - SHEET METAL/DECALS

1

87487246

SHIELD

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

1

87485744

SHIELD

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

2

87487393

ANGLE

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

2

87482225

ANGLE

, Serial Range: -C723

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

2

87487393

ANGLE

, Start Serial: D724

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

3

87482230

PLATE

2шт.

4

87487395

ANGLE

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

4

87482226

ANGLE

, Serial Range: -C723

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

4

87487395

ANGLE

, Start Serial: D724

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

5

87472094

SIDE PLATE

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

6

87472070

SIDE PLATE

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

7

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

22шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

9

9706690

NUT,M8 x 1.25, Cl 8

24шт.

10

84000555

INSULATOR,Bumper

2шт.

11

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

13

9706690

NUT,M8 x 1.25, Cl 8

6шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.
