Запчасти Case IH LB333P (07.501[02]) - STRAIGHT CONNECTIONS AND REPAIR FOR ORFS HYDRAULIC TUBES (07) - HYDRAULIC SYSTEM

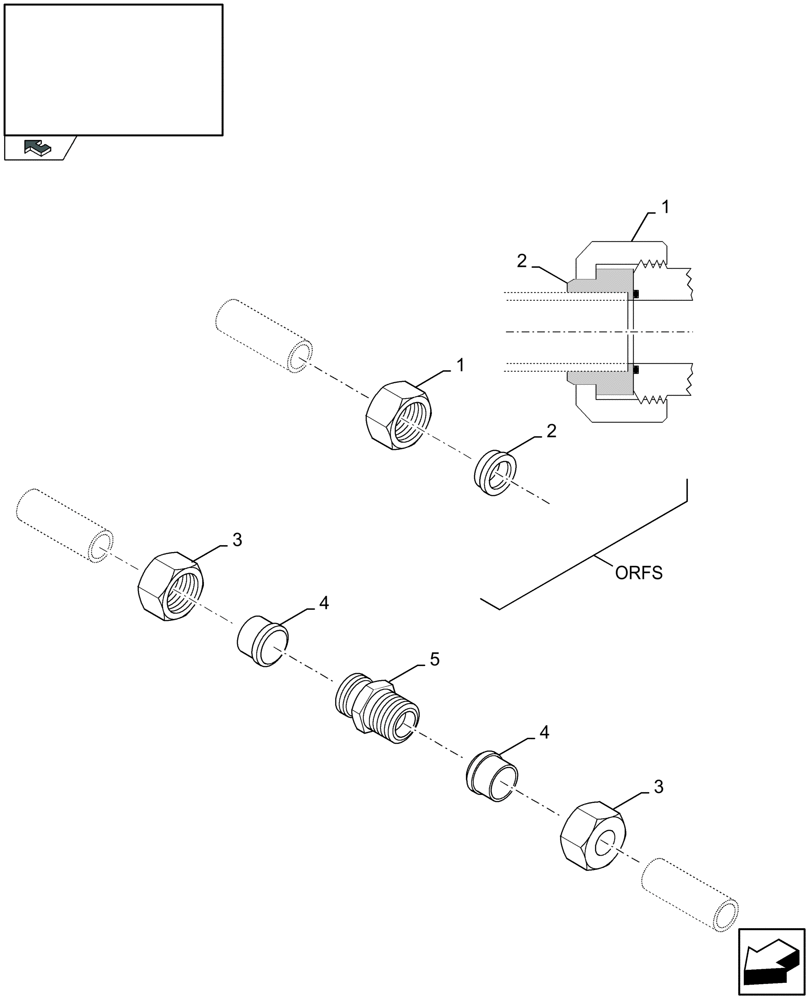

Схема запчастей Case IH LB333P - (07.501[02]) - STRAIGHT CONNECTIONS AND REPAIR FOR ORFS HYDRAULIC TUBES (07) - HYDRAULIC SYSTEM
3
1
2
4
home
2
5
1
3
4

Артикул

Название

Примечание

Количество

1

84052987

TUBE NUT,11/16"-16 x 17mm L

DIA.8MM

1шт.

2

84819190

RING

DIA.8MM

1шт.

3

335135

TUBE NUT,M14 x 1.5

8mm Tube O.D.

1шт.

4

335136

FERRULE

DIA.8MM

1шт.

5

335172

HYD CONNECTOR,M14 x 1.5 x M14 x 1.5

8mm Tube

1шт.

1

85802628

HYD CONNECTOR,1/2"

DIA.12MM

1шт.

2

84819191

RING

DIA.12MM

1шт.

3

86548976

TUBE NUT,M18 x 1.5

(M12 Tube OD)

1шт.

4

150015

FERRULE

DIA.12MM

1шт.

5

150018

HYD CONNECTOR,M18 x 1.5 x 28

Dia. 12mm

1шт.

1

85802819

TUBE NUT,1"-14 x 24mm L

DIA.16MM

1шт.

2

84819192

RING

DIA.16MM

1шт.

3

335171

PIPE UNION NUT,M24 x 1.5

16mm Tube O.D.

1шт.

4

335169

FERRULE

DIA.16MM

1шт.

5

335174

NIPPLE,M24 x 1.5

16mm Tube

1шт.

1

85802972

TUBE NUT,1-3/16'-12 x 26.5mm Thk

DIA.20MM

1шт.

2

84819193

RING

DIA.20MM

1шт.

3

NS

NOT SERVICED

DIA.20MM

1шт.

4

NS

NOT SERVICED

DIA.20MM

1шт.

5

NS

NOT SERVICED

DIA.20MM

1шт.

1

NS

NOT SERVICED

DIA.28MM

1шт.

2

NS

NOT SERVICED

DIA.28MM

1шт.

3

412527

TUBE NUT,M36 x 2

M28 Tube OD

1шт.

4

412528

FERRULE

DIA.28MM

1шт.

5

457545

HYD CONNECTOR,M36 x 2 x M36 x 2

M28 Tube

1шт.

1

84052987

TUBE NUT,11/16"-16 x 17mm L

DIA.1/4"

1шт.

2

84819194

RING

DIA.1/4"

1шт.

3

710852

TUBE NUT,0.72" Length

DIA.1/4"

1шт.

4

710853

FERRULE

DIA.1/4"

1шт.

5

710715

HYD CONNECTOR,7/16"-20

For 1/4" OD Tube

1шт.

1

84052987

TUBE NUT,11/16"-16 x 17mm L

DIA.3/8"

1шт.

2

86541137

RING

DIA.3/8"

1шт.

3

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

DIA.3/8"

1шт.

4

514929

FERRULE,Flareless, 3/8" Tube

1шт.

5

322897

HYD CONNECTOR,9/16" - 18 x 9/16" - 18

3/8" O.D. Tube

1шт.

1

85802628

HYD CONNECTOR,1/2"

DIA.1/2"

1шт.

2

86541138

RING

DIA.1/2"

1шт.

3

514925

TUBE NUT,3/4"-16

For 1/2" Tube

1шт.

4

514928

FERRULE,Flareless, 1/2" Tube

DIA.1/2"

1шт.

5

322891

ADAPTER,3/4"-16

1/2" O.D. Tube

1шт.

1

85802819

TUBE NUT,1"-14 x 24mm L

DIA.5/8"

1шт.

2

84819195

RING

DIA.5/8"

1шт.

3

514924

TUBE NUT,7/8"-14

For 5/8" Tube

1шт.

4

514927

FERRULE

DIA.5/8"

1шт.

5

325062

ADAPTER,7/8"-14 Flareless

5/8" Dia.

1шт.

1

85802972

TUBE NUT,1-3/16'-12 x 26.5mm Thk

DIA.3/4"

1шт.

2

84819196

RING

DIA.3/4"

1шт.

3

325338

TUBE NUT,1 1/16"-12

3/4" Tube

1шт.

4

325339

FERRULE

DIA.3/4"

1шт.

5

286215

HYD CONNECTOR,1 1/16"-12 x 1 7/8"

3/4" O.D. Tube

1шт.

1

NS

NOT SERVICED

DIA.1"

1шт.

2

NS

NOT SERVICED

DIA.1"

1шт.

3

268279

TUBE NUT,1 5/16"-12

(For 1" O.D. Tubing)

1шт.

4

268280

SLEEVE

DIA.1"

1шт.

5

84819197

HYD CONNECTOR

DIA.1"

1шт.

Выбрано товаров: 55
