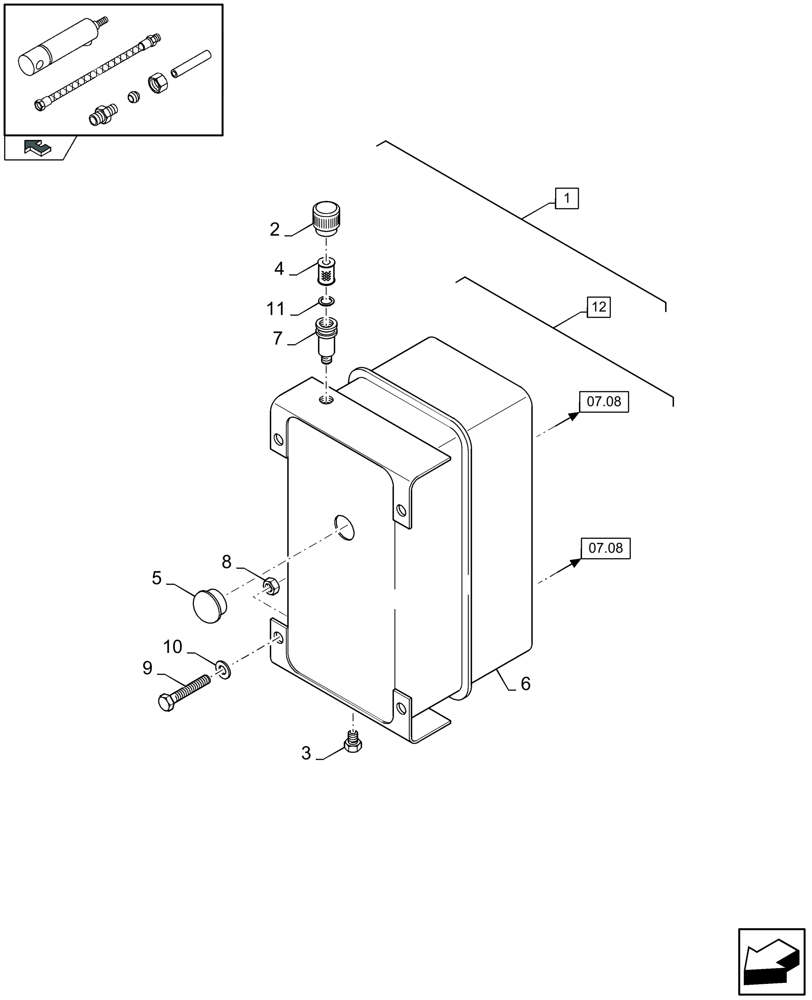

Запчасти Case IH LB333P (07.13[01]) - HYDRAILIC OIL RESERVOIR (07) - HYDRAULIC SYSTEM

1

87758394

RESERVOIR, HYDRAULIC

(2 to 7), Serial Range: -C719

1шт.

1

84147845

RESERVOIR, HYDRAULIC

(2 to 7, 11), Serial Range: -F720895

1шт.

1

NS

NOT SERVICED

(2 to 7, 11,12), Start Serial: D896

1шт.

2

84819493

FILLER CAP

, Serial Range: -C719

1шт.

2

84147846

BREATHER

(4), Start Serial: D720

1шт.

3

84078485

PLUG

1шт.

4

84819494

HYDRAULIC OIL FILTER

1шт.

MAINTENANCE PART

1шт.

5

84457448

LEVEL GAUGE

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

NSS

NOT SOLD SEPARAT

, Serial Range: -C719

1шт.

7

84146529

FITTING

, Start Serial: D720

1шт.

8

9706690

NUT,M8 x 1.25, Cl 8

4шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

11

220022

SEALING RING,22.2mm ID x 26.9mm OD x 1.5mm Thk

SEALRING, Start Serial: D720

1шт.

12

84398983

RESERVOIR, HYDRAULIC

(3, 5, 6), Start Serial: D896

1шт.
