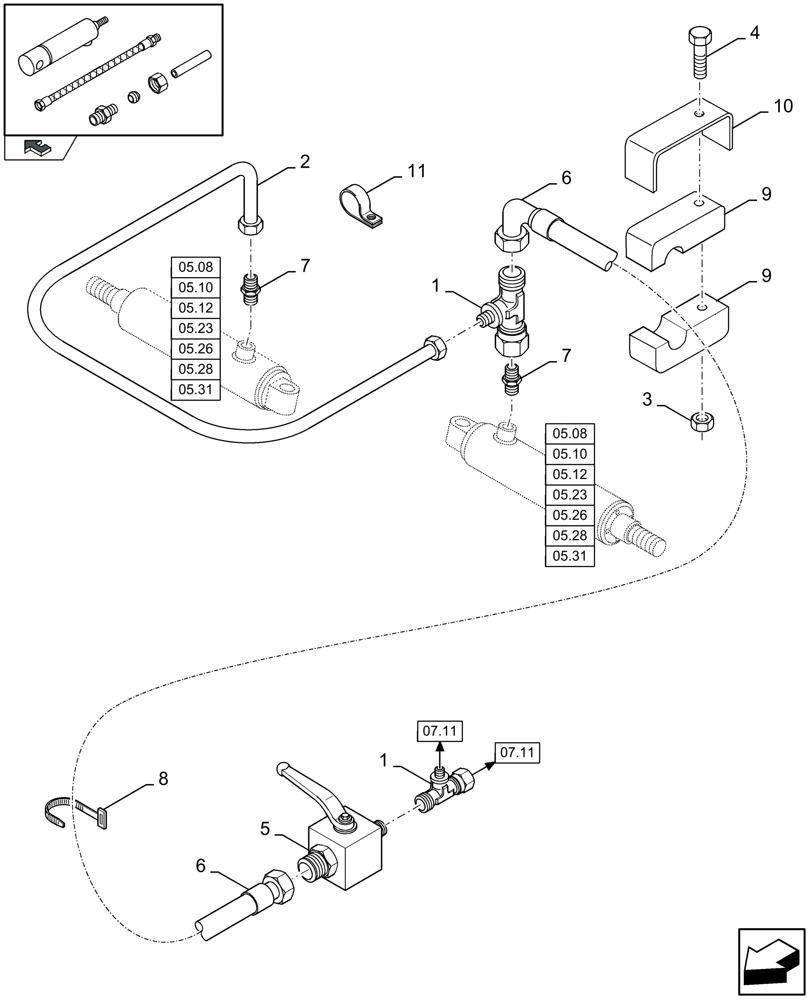

Запчасти Case IH LB333P (07.12[01]) - TANDEM AUTO-STEER AXLE (07) - HYDRAULIC SYSTEM

1

734031

HYD CONNECTOR,M16 x 1.5 Male x M16 x 1.5 Male x M16 x 1.5 Female

2шт.

2

84432940

HYD TUBE,10 mm OD

, Serial Range: -C719

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

2

87614608

HYD TUBE,10 mm OD

, Start Serial: D720

1шт.

FOR LB423S, LB423R, LB433S, LB433R ONLY

1шт.

2

84434149

HYD TUBE

M10, Serial Range: -C719

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

2

87614606

HYD TUBE,10 mm OD

, Start Serial: D720

1шт.

FOR LB323S, LB323P, LB323R, LB333S, LB333P, LB333R ONLY

1шт.

3

412152

NUT,M6 x 1, Cl 8.8

1шт.

4

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

1шт.

5

84043962

DRAINCOCK/TAP SUPPLY

1шт.

6

84449414

FLEXIBLE HOSE,7.94mm ID x 1960mm L, SAE 100R1

1шт.

7

9813512

HYD CONNECTOR

2шт.

8

368582

STRAP

3шт.

9

433007

CLAMP

2шт.

10

433100

SUPPORT

1шт.

11

9839372

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

, Start Serial: D700

1шт.
