Запчасти Case IH LB324S (90.118.070) - FLYWHEELBRAKE ANTI DUST PLATE - D094 (90) - PLATFORM, CAB, BODYWORK AND DECALS

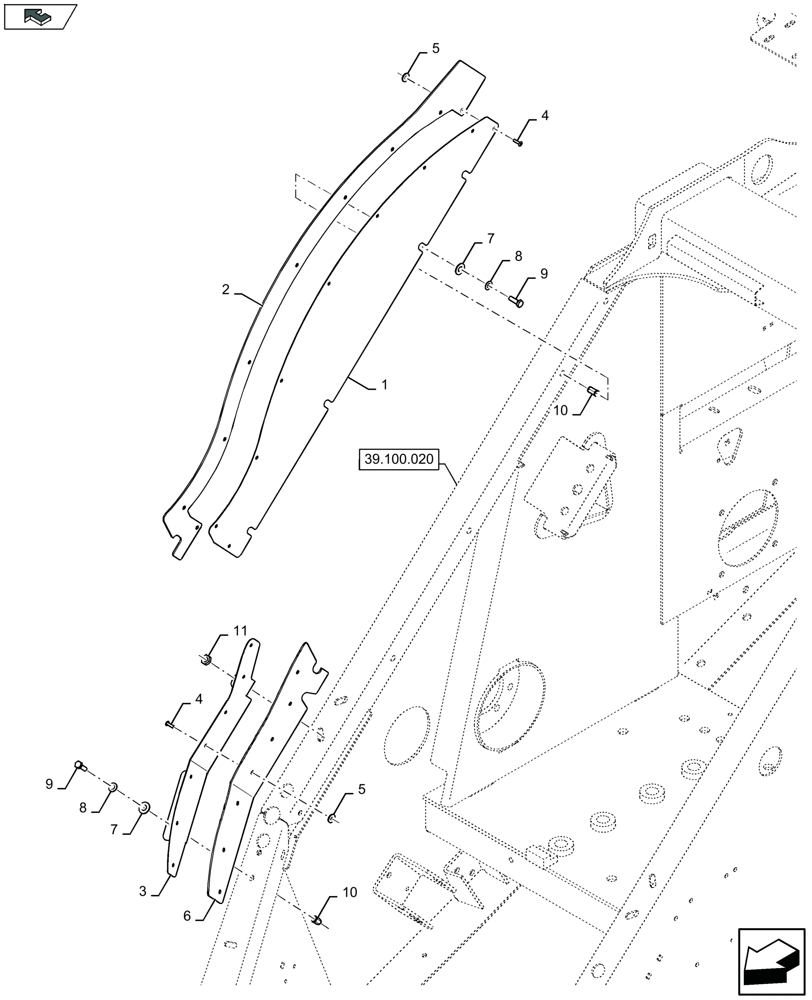

Схема запчастей Case IH LB324S - (90.118.070) - FLYWHEELBRAKE ANTI DUST PLATE - D094 (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
9
5
7
6
39.100.020
8
4
10
11
3
2
1
10
7
9
4
5
home

Артикул

Название

Примечание

Количество

1

47630299

PLATE

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

1

47628922

PLATE

, Serial Range: -C094

1шт.

FOR LB424S, LB424R, LB434S, LB434R, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

1

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

, Start Serial: D095

1шт.

FOR LB424S, LB424R, LB434S, LB434R, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

2

47630303

FLAP

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

2

47612181

FLAP

1шт.

FOR LB424S, LB424R, LB434S, LB434R, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

3

47629088

PLATE

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

3

47628923

PLATE

1шт.

FOR LB424S, LB424R, LB434S, LB434R, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

4

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

17шт.

5

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

, Serial Range: -C094

17шт.

5

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

, Start Serial: D085

17шт.

6

47631080

FLAP

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

6

47612193

FLAP

1шт.

FOR LB424S, LB424R, LB434S, LB434R, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

7

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

10

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

6шт.

11

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

Выбрано товаров: 26
