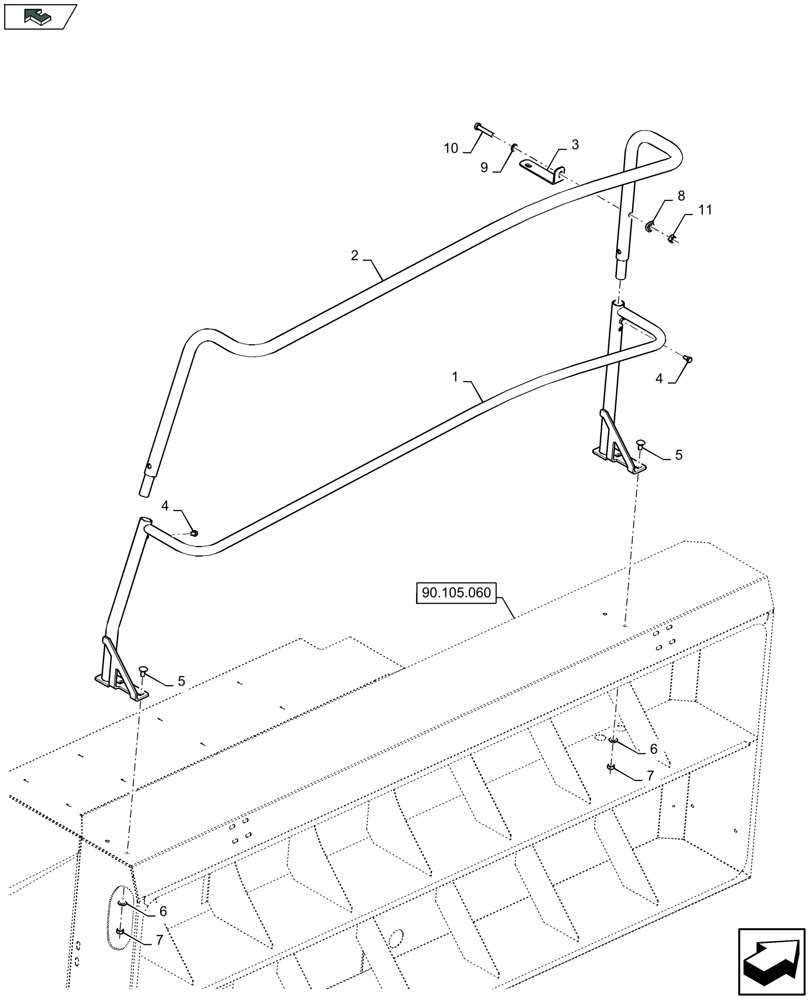

Запчасти Case IH LB324S (90.118.030) - HANDRAIL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84358691

HANDRAIL

1шт.

2

84542759

HANDRAIL

1шт.

3

84539603

SUPPORT

1шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

5

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

FOR FIELD INSTALLED ONLY

1шт.

7

100016

NUT,M10 x 1.5, Cl 8

4шт.

7

86500689

NUT,M10 x 1.5, Cl 10

4шт.

FOR FIELD INSTALLED ONLY

1шт.

8

379401

WASHER,11mm ID x 30mm OD

1шт.

9

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

10

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

1шт.

11

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.
