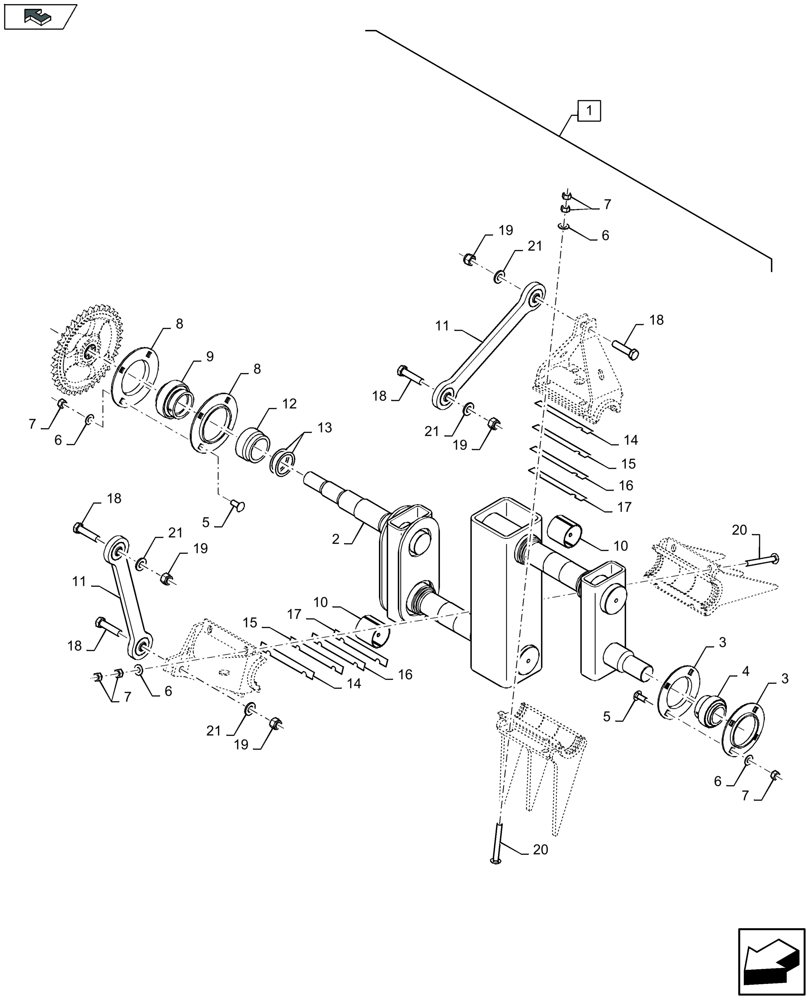

Запчасти Case IH LB324S (88.060.031[02]) - SERVICE KIT: PACKER CRANKSHAFT & DRIVE KIT - C159 (88) - ACCESSORIES

1

48126005

Incl 2 - 21

SERVICE KIT

1шт.

2

47624040

CRANKSHAFT

1шт.

3

9839342

SET

2шт.

4

385424

BALL BEARING,45 mm ID x 85 mm OD x 56.3 mm

1шт.

5

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

8шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

20шт.

7

9706685

NUT,M12 x 1.75, Cl 8

32шт.

8

853175

FLANGE

2шт.

9

722003

BALL BEARING,55mm ID x 100mm OD x 25mm W

1шт.

10

84801730

HALF-BUSHING

4шт.

11

47845908

CONNECTING ROD

2шт.

12

47911884

SPACER

1шт.

13

84024519

SHIM,55mm ID x 68mm OD x 1mm Thk

2шт.

14

9850689

SHIM

2шт.

15

9839323

SHIM

4шт.

16

9839322

SHIM

4шт.

17

84801731

SHIM

2шт.

18

120093

BOLT,M16 x 2.0 x 90.18mm, Cl 8.8

4шт.

19

412066

NUT,M16 x 2.0, Cl 8

4шт.

20

354298

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 110mm, Cl 8.8, Full Thd

8шт.

21

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.
