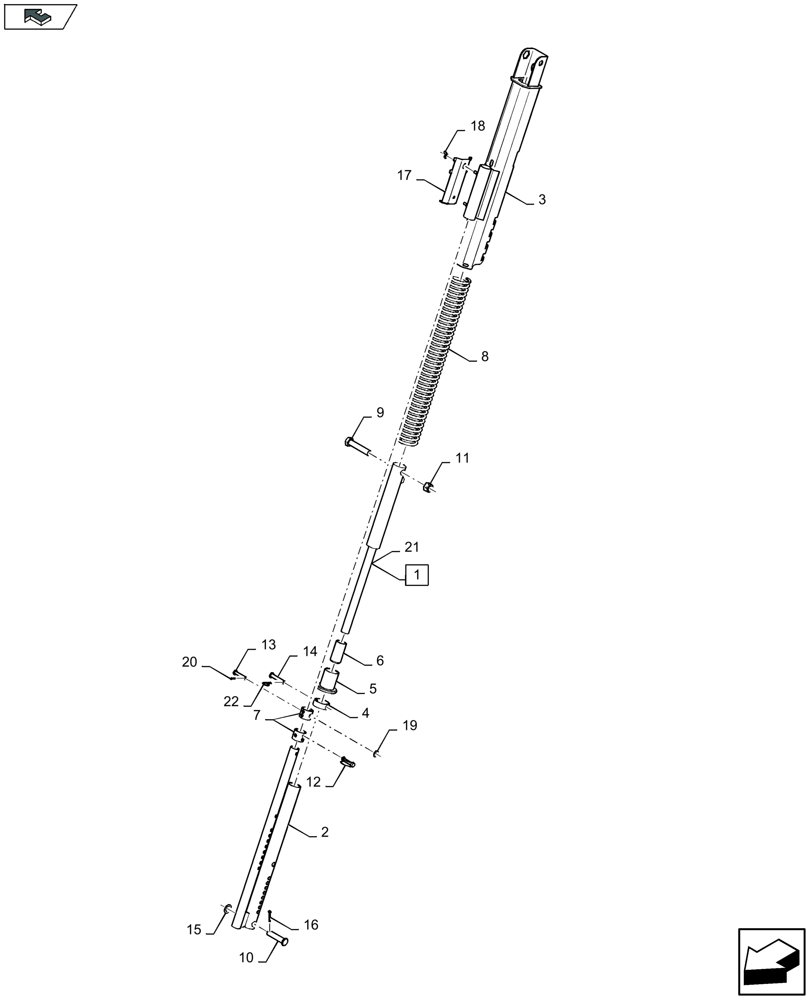

Запчасти Case IH LB324S (35.560.010) - PICK-UP LIFTING SYSTEM (35) - HYDRAULIC SYSTEMS

1

84818223

HYDRAULIC CYLINDER,30mm Rod, 230mm Stroke

Incl 21

1шт.

2

84332372

TUBE

1шт.

FOR LB324S, LB324P, LB334S, LB334P, LB424S, LB434S ONLY

1шт.

2

84332372

TUBE

1шт.

FOR LB324S XL, LB324P XL, LB334S XL, LB334P XL, LB424S XL, LB434S XL ONLY

1шт.

2

84534194

TUBE

1шт.

FOR LB324R, LB334R, LB424R, LB434R, LB324R XL, LB334R XL, LB424R XL, LB434R XL ONLY

1шт.

3

84335005

GUIDE

1шт.

FOR LB324S, LB324P, LB334S, LB334P, LB424S, LB434S ONLY

1шт.

3

84335005

GUIDE

1шт.

FOR LB324S XL, LB324P XL, LB334S XL, LB334P XL, LB424S XL, LB434S XL ONLY

1шт.

3

84817374

GUIDE

1шт.

FOR LB324R, LB334R, LB424R, LB434R, LB324R XL, LB334R XL, LB424R XL, LB434R XL ONLY

1шт.

4

84817381

BUSHING,51.3mm ID x 60.3mm OD x 20mm L

1шт.

5

84817383

BUSHING

1шт.

6

9837602

BUSHING,31mm ID x 40mm OD x 80mm L

1шт.

7

84024657

BUSHING

2шт.

8

84801205

EXPANDER

1шт.

FOR LB324S, LB324P, LB334S, LB334P, LB424S, LB434S ONLY

1шт.

8

84801205

EXPANDER

1шт.

FOR LB324S XL, LB324P XL, LB334S XL, LB334P XL, LB424S XL, LB434S XL ONLY

1шт.

8

84817444

SPRING

1шт.

FOR LB324R, LB334R, LB424R, LB434R, LB324R XL, LB334R XL, LB424R XL, LB434R XL ONLY

1шт.

9

395528

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

1шт.

10

84021067

PIN

1шт.

11

380424

NUT,M20 x 2.5, Cl 8

1шт.

12

9838996

COTTER PIN

1шт.

13

336793

CLEVIS PIN,M10 x 55

1шт.

14

84045619

PIN,12mm OD x 72.5mm L

1шт.

15

9820493

WASHER,20.5mm ID x 35mm OD x 2mm Thk

1шт.

16

130011

COTTER PIN,M5 x 40

1шт.

17

84818191

SUPPORT

1шт.

18

84807781

WING NUT,M8

2шт.

19

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

1шт.

20

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

21

84045272

SEAL KIT

1шт.

22

370539

COTTER PIN,4.4mm x 52.8mm L

1шт.
