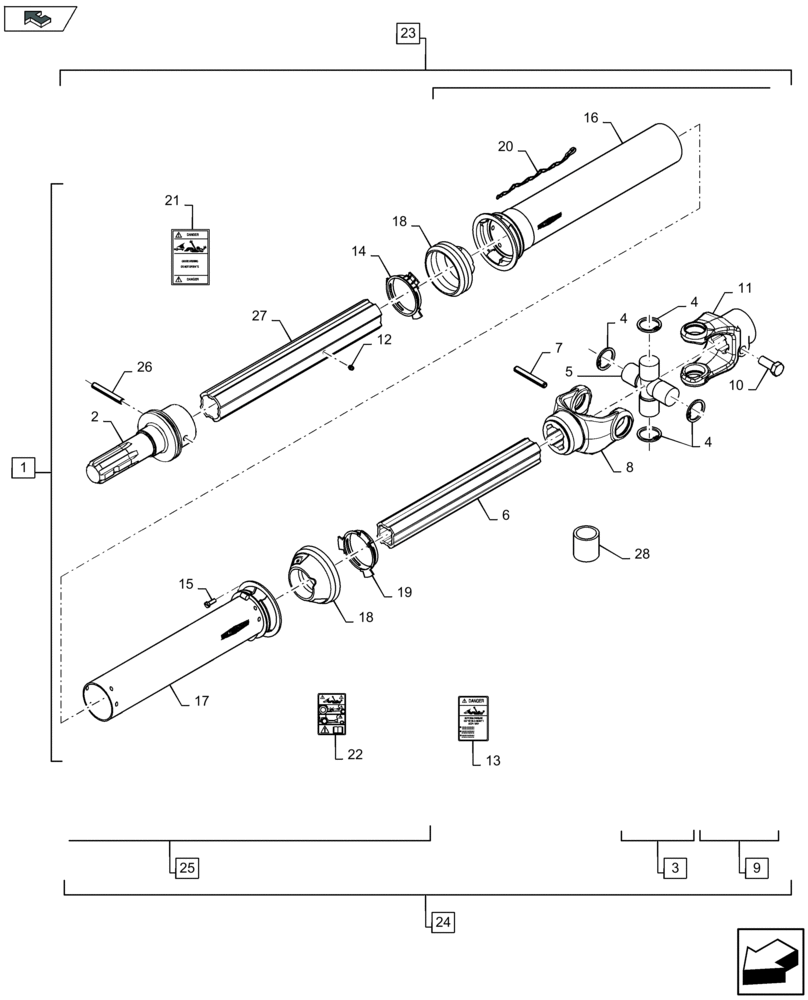

Запчасти Case IH LB324R (31.201.050) - POWER TAKE-OFF, REAR - C136 (31) - IMPLEMENT POWER TAKE OFF

1

84483320

PTO

Incl 2 - 28, Serial Range: -C071

1шт.

1

47459430

PTO

Incl 2 - 28, Start Serial: D072

1шт.

2

NSS

NOT SOLD SEPARAT

Tube Incl in 23

1шт.

3

87716337

SPIDER

1шт.

4

NSS

NOT SOLD SEPARAT

Snap Ring Incl in 3

4шт.

5

NSS

NOT SOLD SEPARAT

Spider Joint Incl in 3

1шт.

6

NSS

NOT SOLD SEPARAT

Tube Incl in 24

1шт.

7

NSS

NOT SOLD SEPARAT

Tube Incl in 24

1шт.

8

NSS

NOT SOLD SEPARAT

Yoke Incl in 24

1шт.

9

87716340

YOKE

Incl 10, 11

1шт.

10

87587210

KIT

1шт.

11

NSS

NOT SOLD SEPARAT

Yoke Incl in 9

1шт.

12

NSS

NOT SOLD SEPARAT

Screw Incl in 1

1шт.

13

84100458

DECAL

1шт.

14

87517831

BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm

1шт.

15

87587200

SELF-TAP SCREW

6шт.

16

84555362

SHIELD

1шт.

17

84555363

SHIELD

1шт.

18

87716345

SHIELD

1шт.

19

86979196

BEARING,86mm ID x 132mm OD x 12mm H

1шт.

20

87716347

CHAIN,400mm L

2шт.

21

87716348

DANGER DECAL

1шт.

22

84078329

DECAL

1шт.

23

84555364

SHIELD

Incl 2, 12, 14, 16, 18, 20, 21, 26, 27, Serial Range: -C071

1шт.

23

47490591

SHIELD

Incl 2, 12, 14, 16, 18, 20, 21, 26, 27, Start Serial: D072

1шт.

24

84555365

SHIELD

Incl 3 - 11, 13, 17, 19, 22, Serial Range: -C071

1шт.

24

47490597

SHIELD

Incl 3 - 11, 13, 17, 19, 22, Start Serial: D072

1шт.

25

84555366

SHIELD

Incl 14 - 20, Serial Range: -C071

1шт.

25

47490601

SHIELD

Incl 14 - 20, Start Serial: D072

1шт.

26

NSS

NOT SOLD SEPARAT

Tube Incl in 23

1шт.

27

NSS

NOT SOLD SEPARAT

Tube Incl in 23

1шт.

28

84555361

PLUG

1шт.
