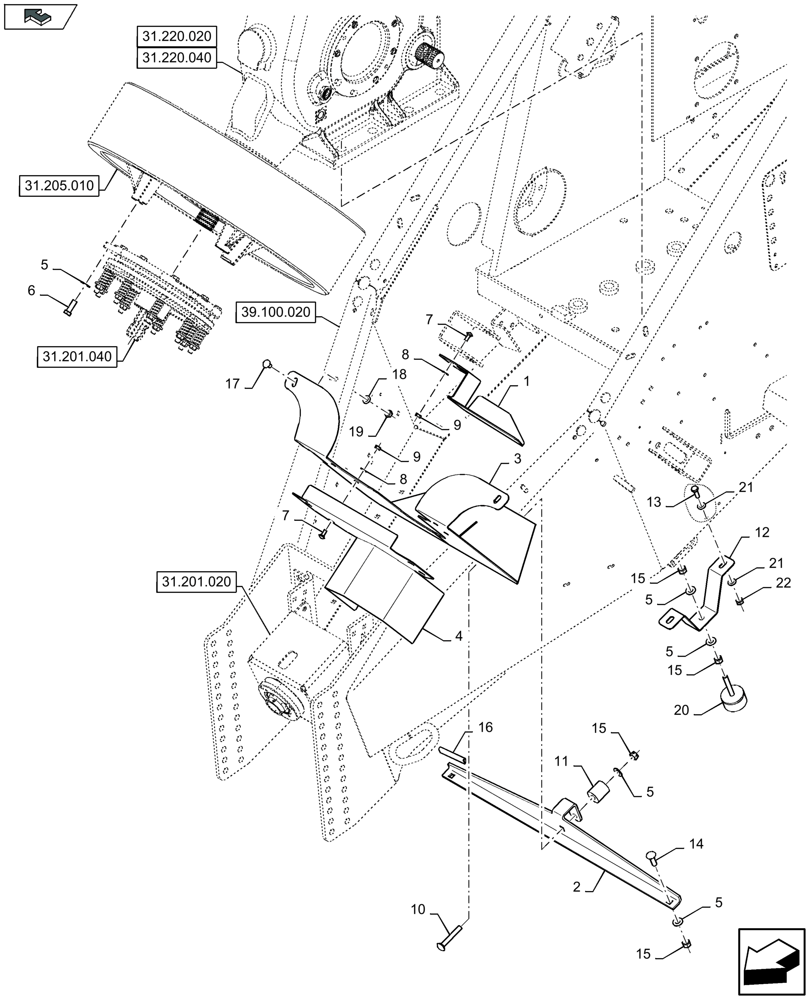

Запчасти Case IH LB324R (31.201.031) - POWER TAKE-OFF, REAR SHIELD (31) - IMPLEMENT POWER TAKE OFF

1

84357231

SHIELD

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

1

84352861

SHIELD

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

2

84355224

SUPPORT

, Serial Range: -C098

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

2

47617454

SUPPORT

, Start Serial: D099

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

2

84355226

SUPPORT

, Serial Range: -C098

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

2

47617238

SUPPORT

, Start Serial: D099

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

3

84598866

PLATE

, Serial Range: -C055

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

3

47419378

PLATE

, Serial Range: -F056098

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

3

47617464

PLATE

, Start Serial: D099

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

3

47362584

PLATE

, Serial Range: -C098

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

3

47617299

PLATE

, Start Serial: D099

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

4

84602342

SHIELD

, Serial Range: -C055

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

4

47417587

SHIELD

, Start Serial: D056

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

4

84602341

SHIELD

, Serial Range: -C055

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

4

47417587

SHIELD

, Start Serial: D056

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

6

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

3шт.

7

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

9

9706690

NUT,M8 x 1.25, Cl 8

6шт.

10

300662

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

1шт.

11

395087

INSULATOR BLOCK

1шт.

12

47367719

SHIELD

, Serial Range: -C136

2шт.

12

47825769

SUPPORT

, Start Serial: D137

2шт.

13

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

, Serial Range: -C136

4шт.

13

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

, Start Serial: D137

4шт.

14

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

15

9706685

NUT,M12 x 1.75, Cl 8

7шт.

16

291186

PROTECTION STRIP,9.9mm W

L= 0.1 M

1шт.

17

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

19

100016

NUT,M10 x 1.5, Cl 8

2шт.

20

84820086

SILENTBLOC

, Serial Range: -C136

2шт.

20

47800760

RUBBER BUMPER

, Start Serial: D137

2шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Serial Range: -C136

8шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

, Start Serial: D137

4шт.

22

100016

NUT,M10 x 1.5, Cl 8

, Serial Range: -C136

4шт.

22

9706685

NUT,M12 x 1.75, Cl 8

, Start Serial: D137

4шт.
