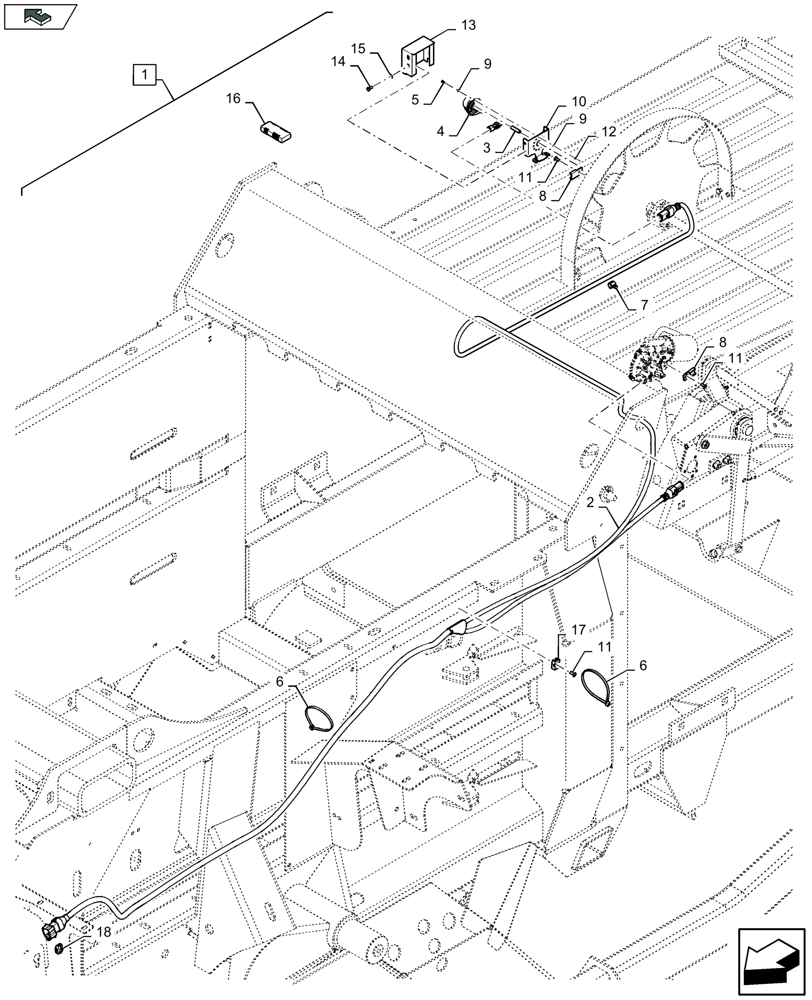

Запчасти Case IH LB324R (88.068.009[02]) - DIA KIT: BALE LENGTH TRIP KIT - ELECTRONIC - F137150 (88) - ACCESSORIES

1

412209002

DIA KIT, HARVESTER

Incl 2 - 18

1шт.

2

84273462

WIRE HARNESS

1шт.

3

47649542

CONNECTING ROD

1шт.

4

47665199

SENSOR

1шт.

5

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

4шт.

6

86566990

CABLE TIE,292mm OAL x 4.8mm W

9шт.

7

84144890

CLIP

7шт.

8

84058832

CLIP

2шт.

9

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

8шт.

10

47388512

SUPPORT

1шт.

11

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

12

100012

NUT,M4 x 0.7, Cl 8

4шт.

13

47388623

COVER

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

16

84398840

MEMORY CARD,4GB

1шт.

17

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

18

84280824

WIRE CONNECTOR

1шт.
