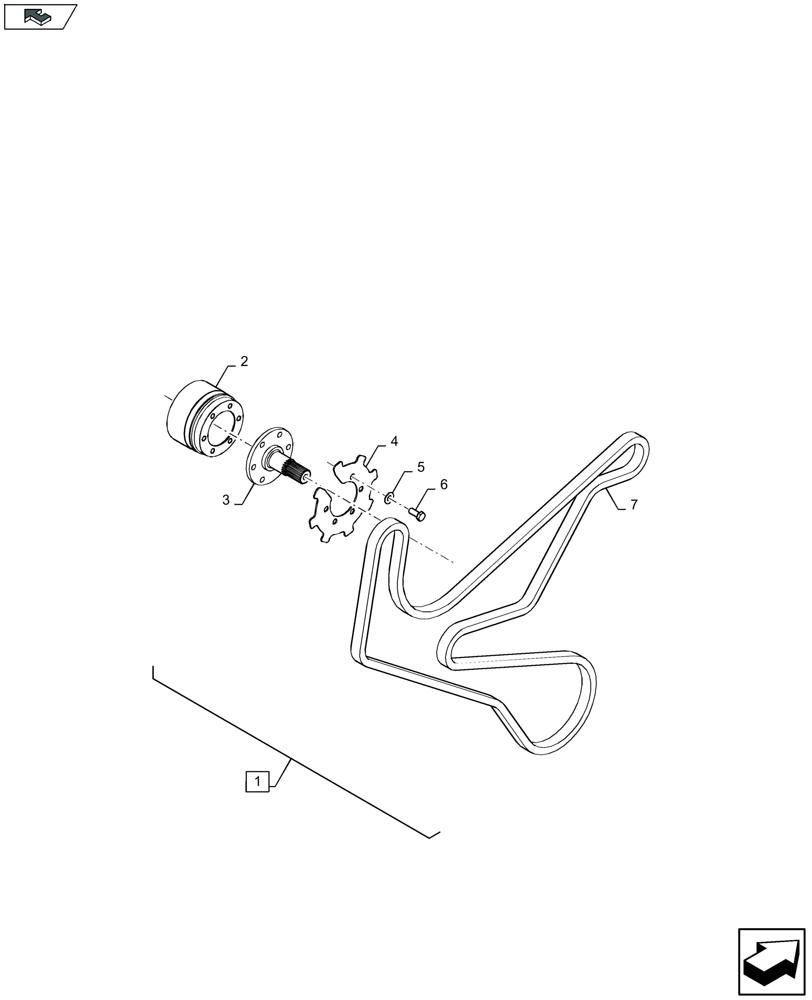

Запчасти Case IH LB324R (88.060.001[01]) - DIA KIT: CUT-OUT CLUTCH KIT - PICK-UP - C084 (88) - ACCESSORIES

1

84363931

DIA KIT, HARVESTER

Incl 2 - 7

1шт.

2

84294907

CLUTCH

1шт.

3

84272522

SHAFT

1шт.

4

84348544

PLATE

1шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

6

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

7

84470828

CHAIN

1шт.

86557103

ADHESIVE

Loctite

1шт.
