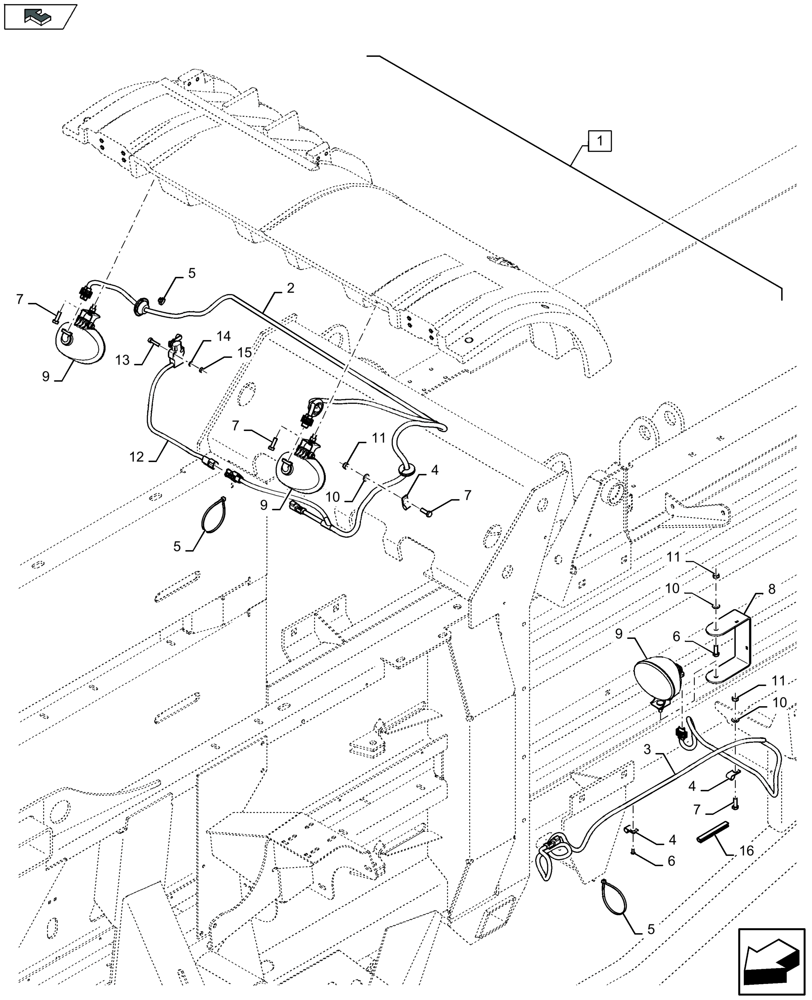

Запчасти Case IH LB324R (88.055.031[01]) - DIA KIT: KNOTTER AND NEEDLE INSPECTION LIGHT KIT - D137 (88) - ACCESSORIES

1

47808637

DIA KIT, HARVESTER

Incl 2 - 16

1шт.

2

47592098

WIRE HARNESS

1шт.

3

47592099

WIRE HARNESS

1шт.

4

858956

CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type

7шт.

5

86566990

CABLE TIE,292mm OAL x 4.8mm W

11шт.

6

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

8

84521730

MOUNTING PLATE

1шт.

9

84423707

WORK LAMP

3шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

11

9706690

NUT,M8 x 1.25, Cl 8

4шт.

12

84807307

SWITCH ASSY

1шт.

13

87016469

HEX SOC SCREW,M5 x 25mm, Cl 8.8

2шт.

14

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

15

86508813

NUT,M5, Cl 8

2шт.

16

291186

PROTECTION STRIP,9.9mm W

L = 0.1m

2шт.
