Запчасти Case IH LB324R (88.055.025[01]) - DIA KIT: COLOUR MONITOR - INTELLIVIEW™ IV/ AFS PRO 700 & TRACTOR WIRING - F137146 (88) - ACCESSORIES

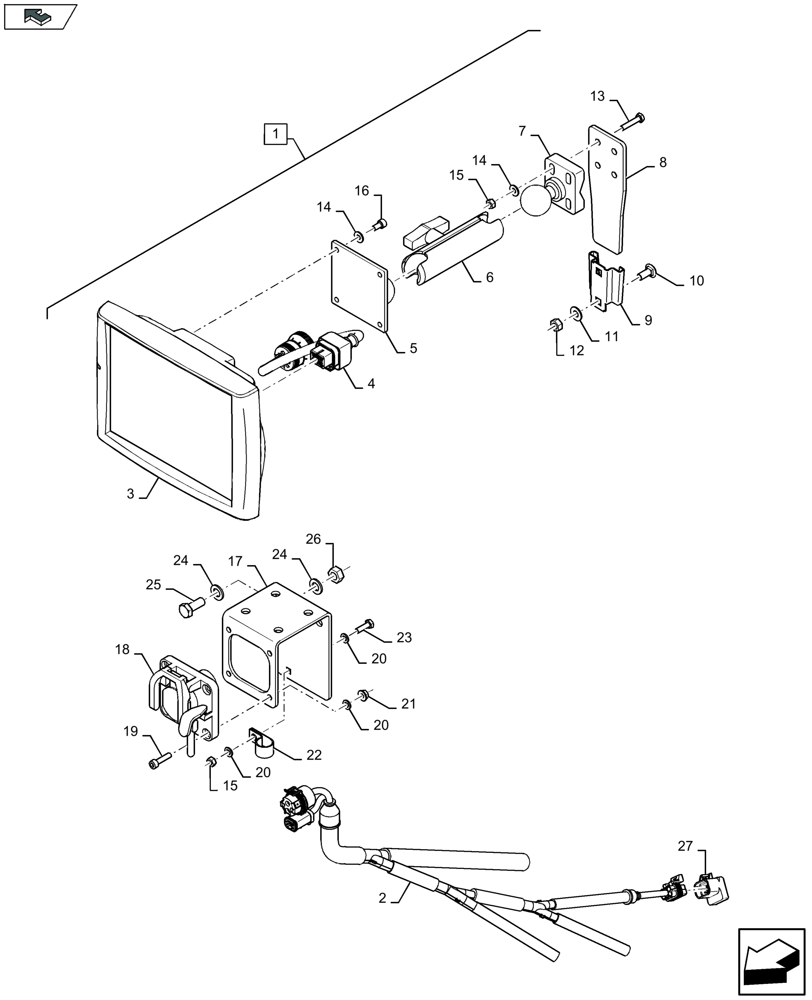

Схема запчастей Case IH LB324R - (88.055.025[01]) - DIA KIT: COLOUR MONITOR - INTELLIVIEW™ IV/ AFS PRO 700 & TRACTOR WIRING - F137146 (88) - ACCESSORIES
17
2
13
24
7
16
18
1
20
home
14
8
27
22
12
15
3
10
19
26
20
11
15
6
9
21
20
5
23
24
14
4
25

Артикул

Название

Примечание

Количество

1

47775255

DIA KIT, HARVESTER

Incl 2 - 27

1шт.

2

47752681

WIRE HARNESS

1шт.

3

47514034

DISPLAY

1шт.

3

47514034R

REMAN-ELECT MONITOR

Reman Display

1шт.

3

47514034C

CORE-MONITOR

Core Return Number

1шт.

4

47533754

WIRE HARNESS

1шт.

5

87386398

SUPPORTING ARM

1шт.

6

87284257

ARM

1шт.

7

87284259

PLATE

1шт.

8

84348886

MOUNTING PLATE

1шт.

9

9837606

CLIP

1шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

12

9706690

NUT,M8 x 1.25, Cl 8

2шт.

13

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

15

9706755

NUT,M6, Cl 8

5шт.

16

63582

HEX SOC SCREW,M6 x 12mm, Cl 8.8

4шт.

17

47754590

MOUNTING PLATE

1шт.

18

87522416

ELEC CONNECTOR,Female, 5 Cavities

1шт.

19

9832203

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

4шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

21

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

22

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

23

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

24

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

25

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

26

100016

NUT,M10 x 1.5, Cl 8

2шт.

27

87601142

ELEC CONNECTOR,Female, 6 Cavities

1шт.

Выбрано товаров: 29
