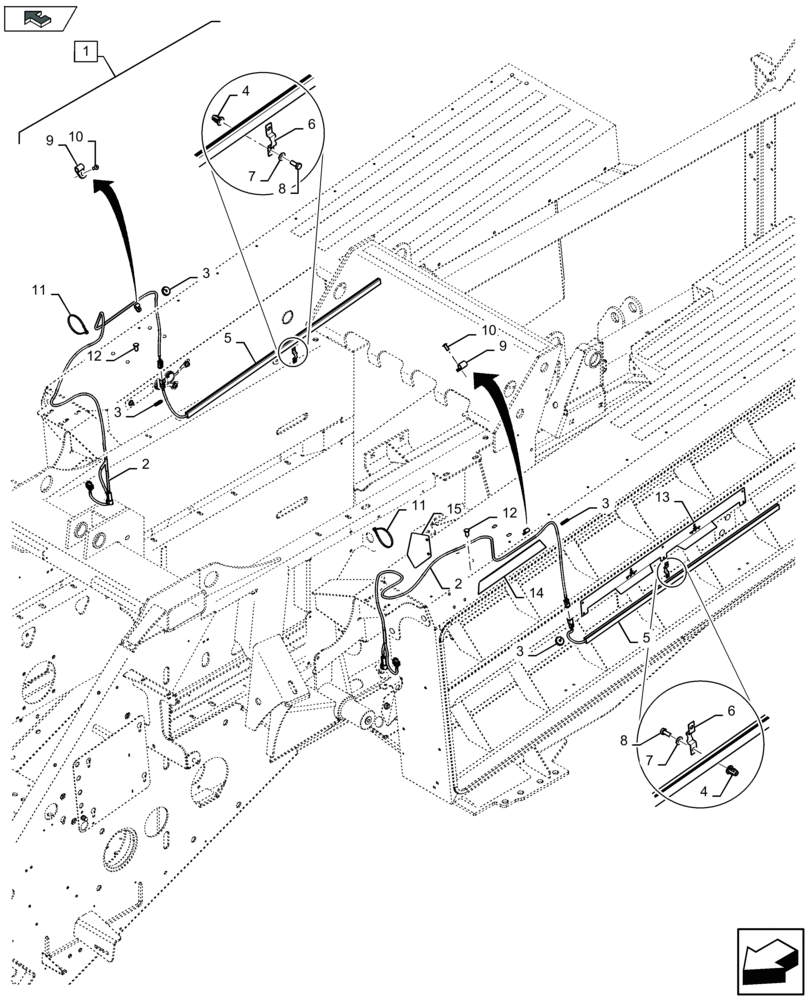

Запчасти Case IH LB324R (88.055.022[01]) - DIA KIT: TWINE BOX LIGHTING KIT - LED - D085 (88) - ACCESSORIES

1

47531409

DIA KIT, HARVESTER

Incl 2 - 15

1шт.

2

47531406

WIRE HARNESS

2шт.

3

87530614

GROMMET

4шт.

4

47533286

NUT

12шт.

5

47506757

COURTESY LIGHT

2шт.

6

47533109

SUPPORT

6шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

12шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

12шт.

9

9507807

CLAMP,8.3mm ID, 6.7mm Bolt Hole, P Type

8шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

8шт.

11

86566990

CABLE TIE,292mm OAL x 4.8mm W

8шт.

12

84280063

HALF-HINGE

4шт.

13

47533835

TOOL

1шт.

14

47548468

TOOL

1шт.

15

47548467

TOOL

1шт.
