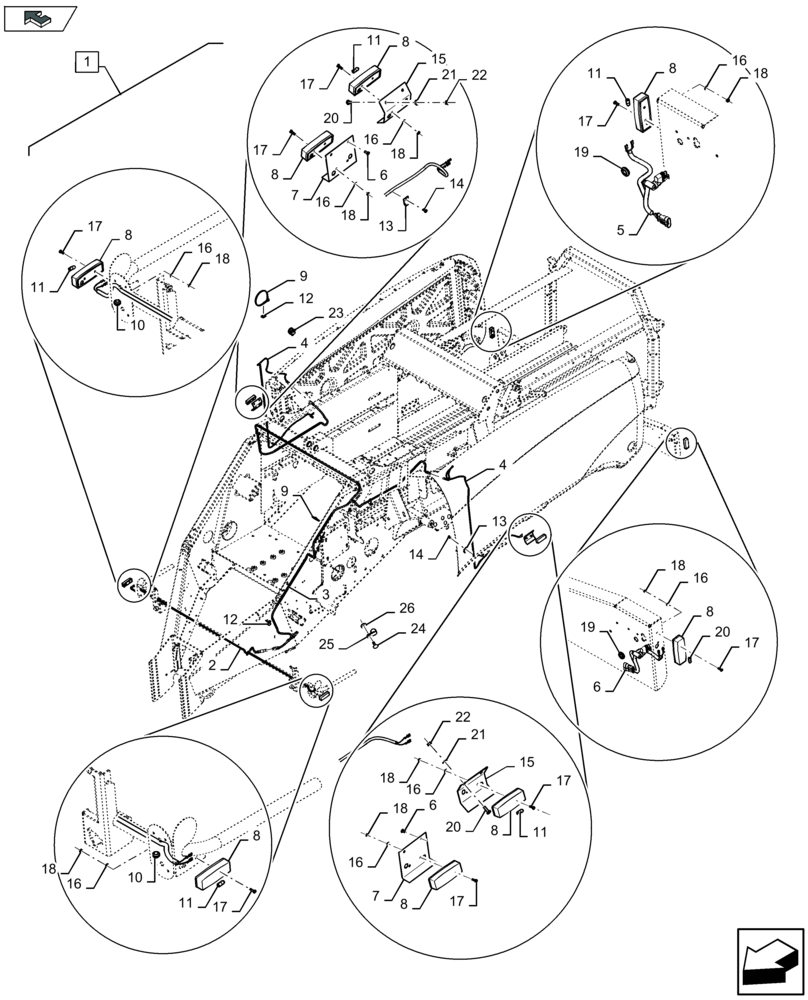

Запчасти Case IH LB324R (88.055.006[01]) - DIA KIT: SIDE LIGHT KIT (88) - ACCESSORIES

1

84314288

DIA KIT, HARVESTER

Incl 2 - 22

1шт.

2

84591014

WIRE HARNESS

1шт.

3

84591015

WIRE HARNESS

1шт.

4

84591016

WIRE HARNESS

2шт.

5

47361131

WIRE HARNESS

2шт.

6

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

FOR SINGLE AXLE ONLY

1шт.

7

47383952

MOUNTING PLATE

2шт.

FOR SINGLE AXLE ONLY

1шт.

8

84058158

SIDE LAMP ASSY

6шт.

9

86566990

CABLE TIE,292mm OAL x 4.8mm W

32шт.

10

411809

GROMMET

4шт.

11

84058228

BULB,12V, 5W

6шт.

12

8467255

CLIP

2шт.

13

9507807

CLAMP,8.3mm ID, 6.7mm Bolt Hole, P Type

8шт.

14

445394

RIVET,Pop, 3/16" x 1/2" OAL

8шт.

15

84591018

MOUNTING PLATE

2шт.

FOR DOUBLE AXLE ONLY

1шт.

16

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

12шт.

17

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

12шт.

18

385681

NUT,M4 x 0.7, Cl 8

12шт.

19

81844483

PLUG,.73" x 1"

2шт.

20

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

4шт.

FOR DOUBLE AXLE ONLY

1шт.

21

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

FOR DOUBLE AXLE ONLY

1шт.

22

353308

NUT,M6 x 1.0, Cl 8

4шт.

FOR DOUBLE AXLE ONLY

1шт.

23

82033028

CABLE TIE,170mm L

2шт.

24

9512290

RIVET,Pop, 4.8mm OD x 17.8mm L

2шт.

25

87564736

CLAMP,14.3mm, Insul, M6 Bolt

2шт.

26

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

2шт.
