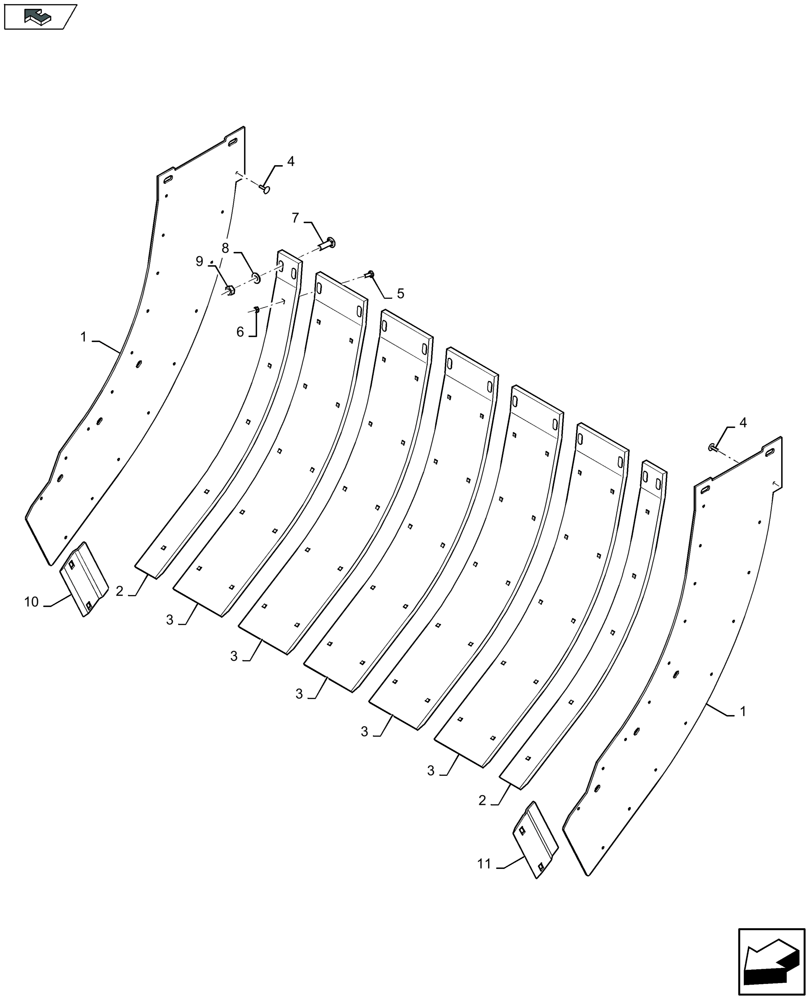

Запчасти Case IH LB324R (60.280.111) - TOP AND SIDE LINERS FEED CHAMBER - D137 (60) - PRODUCT FEEDING

1

47981805

SKID PLATE

2шт.

2

47981629

SKID PLATE

2шт.

3

47981674

SKID PLATE

5шт.

4

84069248

RIVET,Pop, 4.8mm OD x 20.7mm L

2шт.

5

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

6

353308

NUT,M6 x 1.0, Cl 8

1шт.

7

84467161

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 35mm, Cl 8.8

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

9

100016

NUT,M10 x 1.5, Cl 8

1шт.

10

47981606

PLATE

1шт.

11

47981651

PLATE

1шт.
