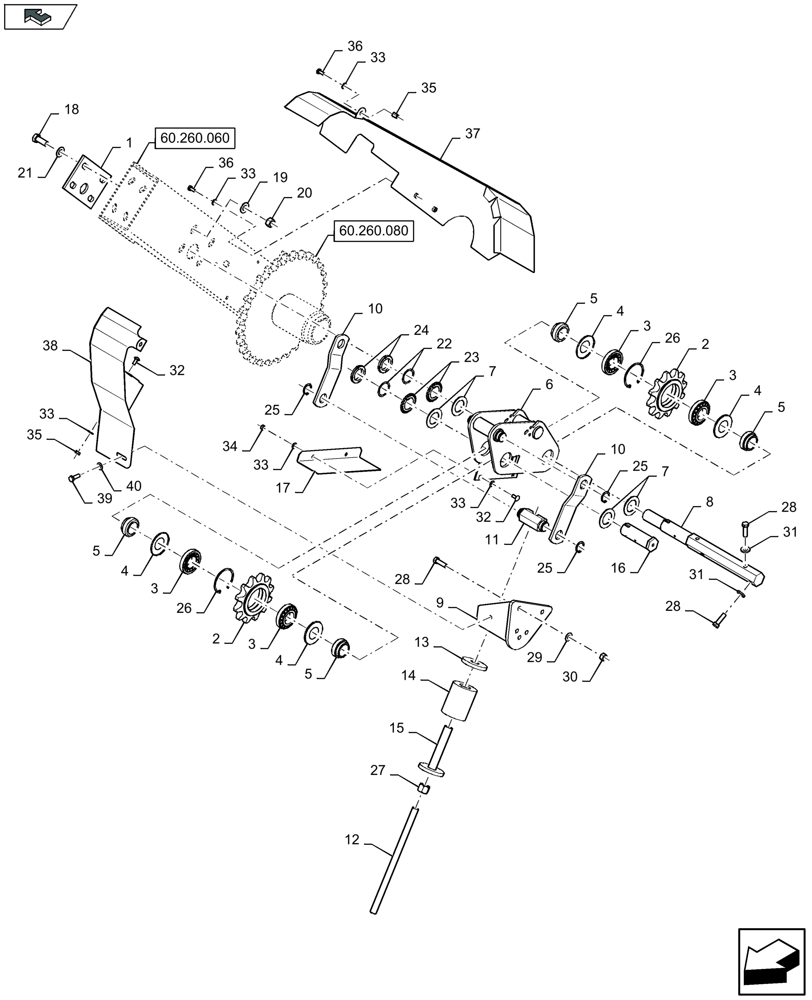

Запчасти Case IH LB324R (60.260.070) - ROTOR DRIVE, TENSIONER (60) - PRODUCT FEEDING

1

84037900

SUPPORT

1шт.

2

84037899

DRIVEN SPROCKET,12T

2шт.

3

210053

TAPERED BEARING,40mm ID x 80mm OD x 18mm W

4шт.

4

84039090

RING,40mm ID x 77.5mm OD x 0.3mm Thk

4шт.

5

84037898

BUSHING,40mm ID x 60mm OD x 27.7mm L

4шт.

6

84037903

IDLER LEVER

1шт.

7

9838253

WASHER,40.5mm ID x 65mm OD x 2.99mm Thk

4шт.

8

84078078

SHAFT

1шт.

9

84039507

BRACKET

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

9

84039507

BRACKET

, Serial Range: -C159

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

9

48037217

SUPPORT

, Start Serial: D160

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

10

84814384

BRACKET

2шт.

11

84037939

SHAFT

1шт.

12

84041797

THREADED ROD

1шт.

13

84041795

WASHER,26mm ID x 82mm OD x 10mm Thk

1шт.

14

84011609

INSULATOR BLOCK

1шт.

15

84041794

SUPPORT

1шт.

16

84078080

SHAFT

1шт.

17

84510214

PLATE

1шт.

18

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

19

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

4шт.

20

100020

NUT,M16 x 2.0, Cl 8

4шт.

21

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

22

442203

WASHER,41mm ID x 50mm OD x 0.91mm Thk

2шт.

23

543836

LOCK WASHER

2шт.

24

543835

LOCK NUT

2шт.

25

370003

SNAP RING,M30, External

4шт.

26

300633

SNAP RING,M80, Internal

2шт.

27

412180

NUT,M20 x 2.5, Cl 8

1шт.

28

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

9шт.

29

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

30

9706685

NUT,M12 x 1.75, Cl 8

5шт.

31

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

4шт.

32

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

34

9706690

NUT,M8 x 1.25, Cl 8

1шт.

35

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

1шт.

36

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

37

84563354

COVER PLATE

1шт.

38

48028274

COVER

, Start Serial: D160

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

39

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

, Start Serial: D160

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

40

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Start Serial: D160

1шт.

FOR LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.
