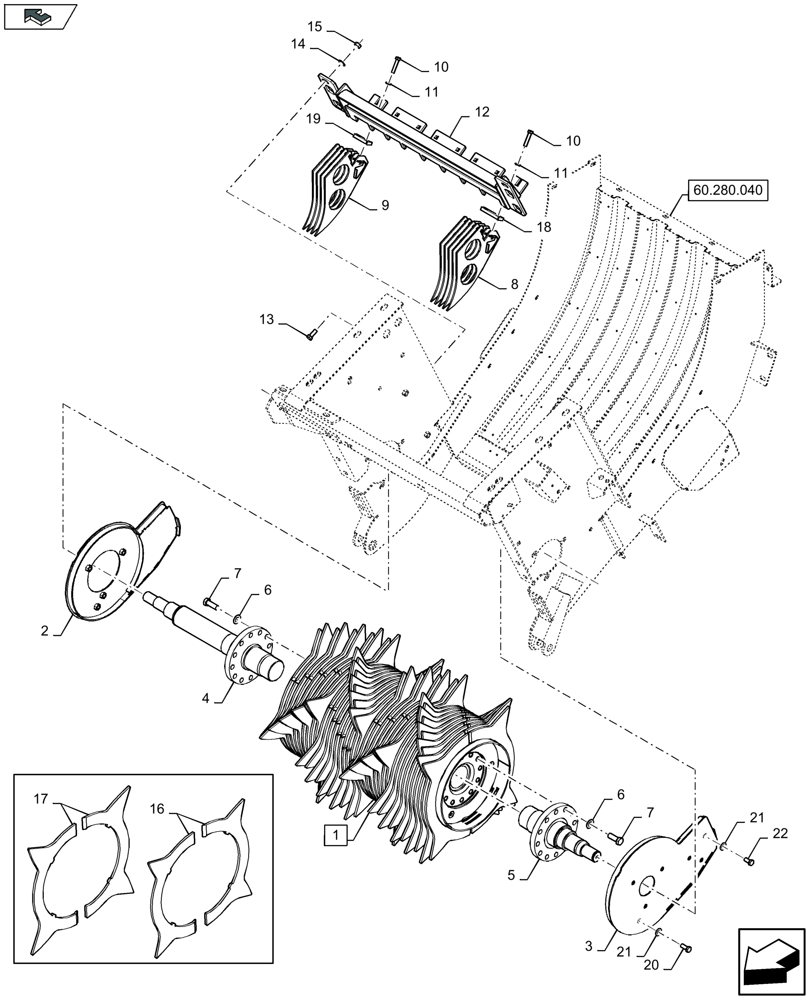

Запчасти Case IH LB324R (60.260.050) - ROTOR (60) - PRODUCT FEEDING

1

84217866

ROTOR

Incl 16, 17, Serial Range: -C150

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

1

47925123

ROTOR

Incl 16, 17, Start Serial: D151

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

1

84210462

ROTOR

Incl 16, 17, Serial Range: -C150

1шт.

FOR LB424R, LB434R, LB424S XL, LB434R XL ONLY

1шт.

1

47925143

ROTOR

Incl 16, 17, Start Serial: D151

1шт.

FOR LB424R, LB434R, LB424S XL, LB434R XL ONLY

1шт.

1

47996444

ROTOR

Incl 16, 17

1шт.

FOR ABRASIVE ONLY

1шт.

2

87388926

FLANGE

, Serial Range: -C150

1шт.

2

47819854

FLANGE

, Start Serial: D151

1шт.

3

87388925

FLANGE

, Serial Range: -C150

1шт.

3

47822297

FLANGE

, Start Serial: D151

1шт.

4

84295828

SHAFT

1шт.

5

84263406

SHAFT

1шт.

6

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

24шт.

7

385922

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8

24шт.

8

87617284

SCRAPER

, Serial Range: -C098

5шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

8

47526536

SCRAPER

, Start Serial: D099

5шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

8

87617284

SCRAPER

, Serial Range: -C098

9шт.

FOR LB424R, LB434R, LB424S XL, LB434R XL ONLY

1шт.

8

47526536

SCRAPER

, Start Serial: D099

9шт.

FOR LB424R, LB434R, LB424S XL, LB434R XL ONLY

1шт.

9

84338245

SCRAPER

, Serial Range: -C098

3шт.

9

47526540

SCRAPER

, Start Serial: D099

3шт.

10

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

, Serial Range: -C098

1шт.

10

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

, Start Serial: D099

1шт.

11

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

12

47366815

BEAM

1шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

12

84260167

BEAM

1шт.

FOR LB424R, LB434R, LB424S XL, LB434R XL ONLY

1шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

15

9706685

NUT,M12 x 1.75, Cl 8

2шт.

16

87595224

KNIFE BLADE

SHORT

1шт.

16

47996447

TOOTH

SHORT

1шт.

FOR ABRASIVE ONLY

1шт.

17

87595220

KNIFE BLADE

LONG

1шт.

17

47996446

TOOTH

LONG

1шт.

FOR ABRASIVE ONLY

1шт.

18

47520208

PLATE

, Start Serial: D099

5шт.

FOR LB324R, LB334R, LB324R XL, LB334R XL ONLY

1шт.

18

47520208

PLATE

, Start Serial: D099

9шт.

FOR LB424R, LB434R, LB424S XL, LB434R XL ONLY

1шт.

19

47520210

PLATE

, Start Serial: D099

3шт.

20

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

, Start Serial: D151

2шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

, Start Serial: D151

6шт.

22

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

, Start Serial: D151

4шт.
