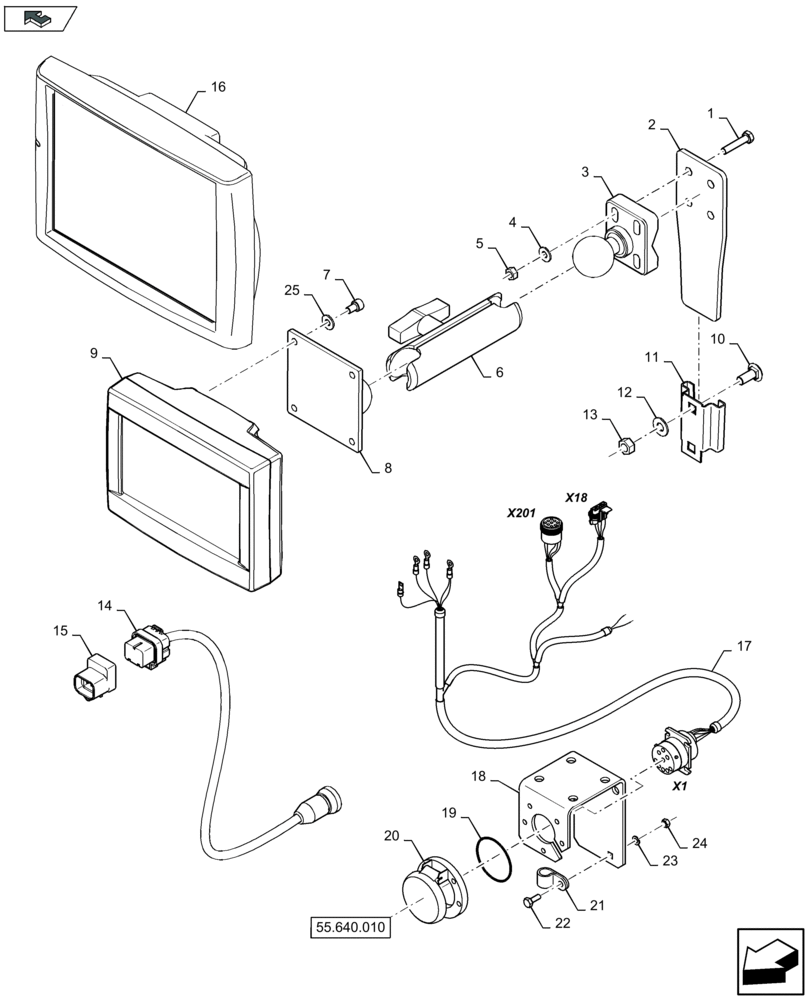

Запчасти Case IH LB324R (55.418.020) - MONITOR, INTELLIVIEW III AND TOUCHSCREEN - C136 (55) - ELECTRICAL SYSTEMS

1

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.

2

84348886

MOUNTING PLATE

1шт.

3

87284259

PLATE

1шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

5

9706755

NUT,M6, Cl 8

4шт.

6

87284257

ARM

1шт.

7

87016470

HEX SOC SCREW,M6 x 1 x 10mm, Cl 8.8

, Serial Range: -C084

4шт.

7

63582

HEX SOC SCREW,M6 x 12mm, Cl 8.8

, Start Serial: D085

4шт.

8

87386398

SUPPORTING ARM

1шт.

9

84487372

DISPLAY

, Serial Range: -C098

1шт.

FOR INTELIVIEW III ONLY

1шт.

9

47585546

DISPLAY

, Start Serial: D099

1шт.

FOR INTELIVIEW III ONLY

1шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

9837606

CLIP

1шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

13

9706690

NUT,M8 x 1.25, Cl 8

2шт.

14

87526506

WIRE HARNESS

, Serial Range: -C071

1шт.

FOR INTELIVIEW III ONLY

1шт.

14

84574876

WIRE HARNESS

, Serial Range: -C071

1шт.

FOR TOUCHSCREEN ONLY

1шт.

14

47441308

WIRE HARNESS

, Serial Range: -F072096

1шт.

14

47533754

WIRE HARNESS

, Start Serial: D097

1шт.

15

87601142

ELEC CONNECTOR,Female, 6 Cavities

1шт.

16

84518934

DISPLAY

, Serial Range: -C096

1шт.

FOR TOUCHSCREEN ONLY

1шт.

16

47514045

DISPLAY

, Start Serial: D097

1шт.

FOR TOUCHSCREEN ONLY

1шт.

16

84546676R

REMAN-ELECT MONITOR

LB324P, LB324R,LB324S, LB334P, LB334R, LB334S, LB424R, LB424S, LB434R, LB434S, All (9/12), Reman for New P/N 84518934

1шт.

16

84546676C

CORE-MONITOR

Return Number

1шт.

17

87526033

WIRE HARNESS

Incl 18 - 24

1шт.

18

84437400

BRACKET

1шт.

19

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

20

86606228

COVER

1шт.

21

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

22

NSS

NOT SOLD SEPARAT

Bolt Incl in 17

1шт.

23

NSS

NOT SOLD SEPARAT

Washer Incl in 17

1шт.

24

NSS

NOT SOLD SEPARAT

Nut Incl in 17

1шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

, Start Serial: D085

4шт.
