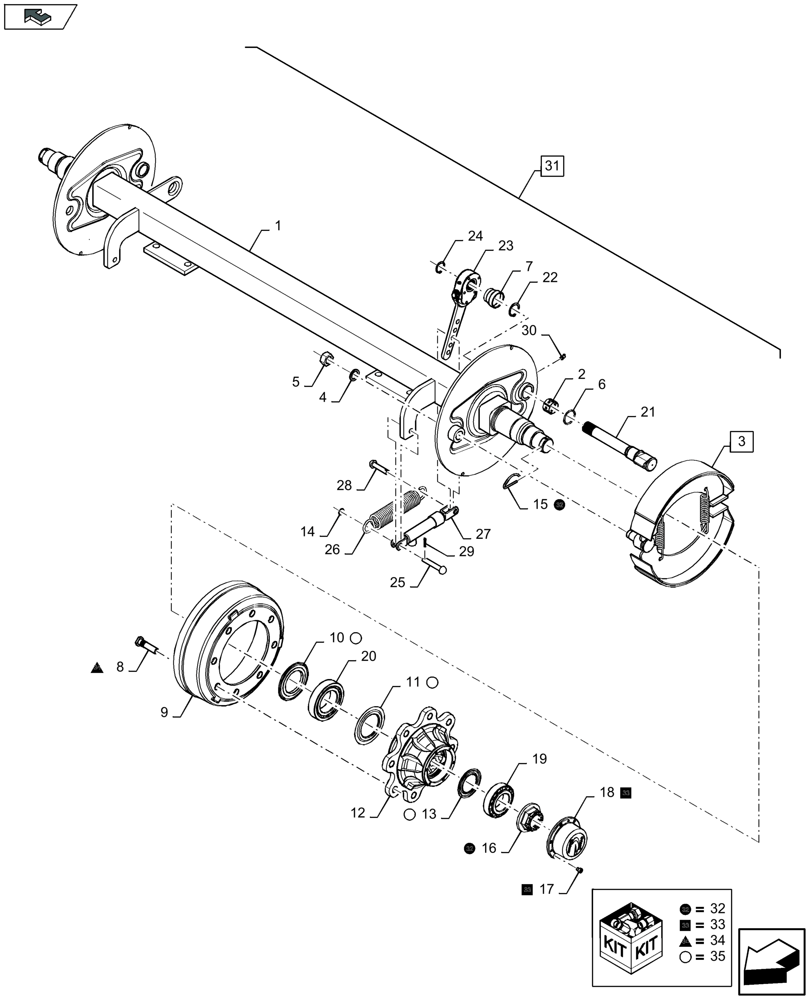

Запчасти Case IH LB324P (27.500.060) - TANDEM AXLE, HYDRAULIC BRAKES (27) - REAR AXLE SYSTEM

1

84531518

AXLE

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

1

84521821

AXLE

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

1

84563815

AXLE

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR NOT STEERED REAR AXLE ONLY

1шт.

1

84531518

AXLE

, Serial Range: -C145

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR LARGE TANDEM AXLE ONLY

1шт.

1

47926447

AXLE

, Start Serial: D146

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR LARGE TANDEM AXLE ONLY

1шт.

1

84521821

AXLE

, Serial Range: -C145

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

FOR LARGE TANDEM AXLE ONLY

1шт.

1

47926442

AXLE

, Start Serial: D146

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

FOR LARGE TANDEM AXLE ONLY

1шт.

2

84521848

BRAKE

Incl 3 - 7, 22

2шт.

3

84014235

SLEEVE

2шт.

4

84220999

LOCK WASHER

2шт.

5

100024

NUT,M24 x 1.5, Cl 8

2шт.

6

84519730

O-RING,2.62mm Thk x 37.77mm ID

2шт.

7

84519464

HOOD

2шт.

8

84563584

STUD

, Serial Range: -C084

16шт.

8

47456247

STUD

, Start Serial: D085

16шт.

9

84521826

BRAKE DRUM

2шт.

10

84521823

OIL SEAL

2шт.

11

84100482

RING

2шт.

12

84521825

HUB

2шт.

13

84100484

RING

2шт.

14

140069

WASHER,M15 x 24 x 2 Thk

2шт.

15

84212727

COTTER PIN

2шт.

16

84521828

NUT

2шт.

17

14301931

HEX SOC SCREW,M8 x 1.25 x 10mm, Cl 10.9, Full Thd

12шт.

18

84521831

COVER

2шт.

19

84100485

BALL BEARING,60mm ID x 110mm OD x 29.75mm W

2шт.

20

84100483

BALL BEARING,75mm ID x 130mm OD x 33.25mm W

2шт.

21

84528423

CAMSHAFT

2шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

21

84521838

CAMSHAFT

2шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

21

84528423

CAMSHAFT

2шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

FOR NOT STEERED REAR AXLE ONLY

1шт.

21

84528423

CAMSHAFT

, Serial Range: -C145

2шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR LARGE TANDEM AXLE ONLY

1шт.

21

47923279

CAMSHAFT

, Start Serial: D146

2шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR LARGE TANDEM AXLE ONLY

1шт.

21

84521838

CAMSHAFT

, Serial Range: -C145

2шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

FOR LARGE TANDEM AXLE ONLY

1шт.

21

47923279

CAMSHAFT

, Start Serial: D146

2шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

FOR LARGE TANDEM AXLE ONLY

1шт.

22

300632

SNAP RING,M38, External

2шт.

23

84301463

LEVER

2шт.

24

84045556

CIRCLIP

2шт.

25

84800533

PIN

2шт.

26

84800532

SPRING

2шт.

27

84014242

CYLINDER

2шт.

28

84800534

PIN

2шт.

29

10797401

COTTER PIN,M5 x 36

2шт.

30

150024

LUBE NIPPLE,45 Degree, M8 x 1

2шт.

31

84563749

FRONT AXLE

Incl 1 - 30, 32 - 35

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

31

84521750

FRONT AXLE

Incl 1 - 30, 32 - 35

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

31

84563806

REAR AXLE

Incl 1 - 30, 32 - 35

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR NOT STEERED REAR AXLE ONLY

1шт.

31

84564068

REAR AXLE

Incl 1 - 30, 32 - 35

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

FOR NOT STEERED REAR AXLE ONLY

1шт.

31

84531512

FRONT AXLE

Incl 1 - 30, 32 - 35, Serial Range: -C145

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR LARGE TANDEM AXLE ONLY

1шт.

31

47926343

FRONT AXLE

Incl 1 - 30, 32 - 35, Start Serial: D146

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR LARGE TANDEM AXLE ONLY

1шт.

31

84526186

FRONT AXLE

Incl 1 - 30, 32 - 35, Serial Range: -C145

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

FOR LARGE TANDEM AXLE ONLY

1шт.

31

47926361

FRONT AXLE

Incl 1 - 30, 32 - 35, Start Serial: D146

1шт.

FOR FRONT AXLE ONLY

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

FOR LARGE TANDEM AXLE ONLY

1шт.

32

84521844

CROWN NUT

Incl 15, 16

1шт.

33

84521845

KIT

Incl 17, 18

1шт.

34

47462799

FIP KIT

Incl 8

2шт.

35

84521846

SEAL KIT

Incl 10, 11, 13

1шт.
