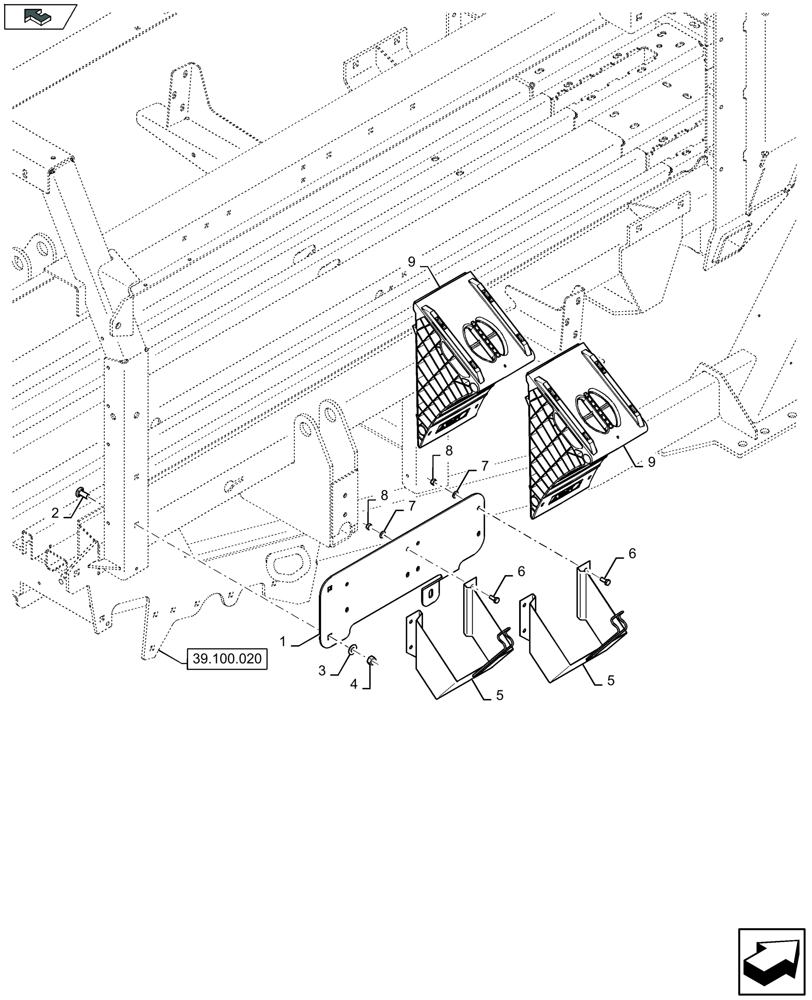

Запчасти Case IH LB324P (05.102.011) - WHEEL BLOCKS - D099 (05) - SERVICE & MAINTENANCE

1

47580299

PROFILE

, Serial Range: -C167

1шт.

1

48091973

, Start Serial: D168

PROFILE

1шт.

2

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

4

9706685

NUT,M12 x 1.75, Cl 8

3шт.

5

47579697

BRACKET

2шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

8

9706690

NUT,M8 x 1.25, Cl 8

8шт.

9

47579696

WHEEL CHOCK

2шт.
