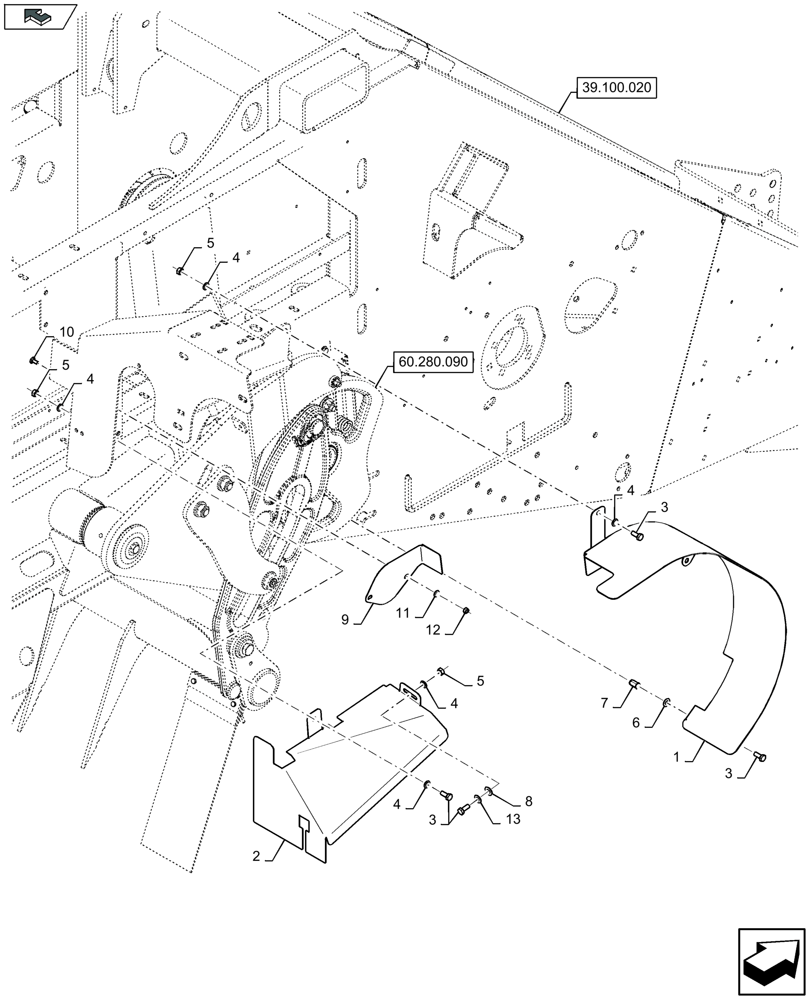

Запчасти Case IH LB324P (90.118.060) - CROP ACCUMULATION PROTECTION STUFFER AND DRIVES - D094 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47621097

SHIELD

1шт.

2

47636740

SHIELD

1шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

, Serial Range: -C130

3шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Start Serial: D131

5шт.

5

43362

NUT,M8 x 1.25, Cl 10

3шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

7

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

1шт.

8

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

9

47646296

SHIELD

,, Start Serial: D099

1шт.

10

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

,, Start Serial: D099

2шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

,, Start Serial: D099

2шт.

12

9706755

NUT,M6, Cl 8

,, Start Serial: D099

2шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Serial Range: -C130

1шт.
