Запчасти Case IH LB324P (90.105.201) - LOCK KNOTTER SHIELD - D085 (90) - PLATFORM, CAB, BODYWORK AND DECALS

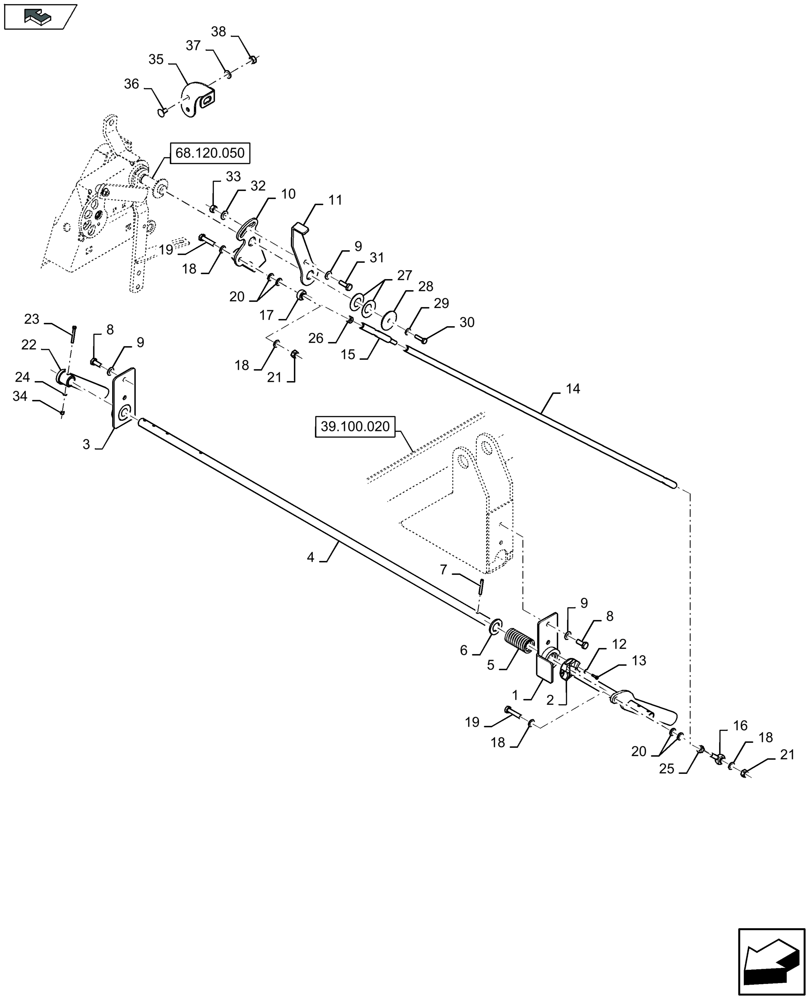

Схема запчастей Case IH LB324P - (90.105.201) - LOCK KNOTTER SHIELD - D085 (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.100.020
home
19
33
12
1
28
26
11
31
6
22
10
3
9
21
21
18
8
9
18
27
38
7
24
9
37
20
2
17
20
13
4
32
16
18
30
34
25
29
19
23
18
5
35
15
14
8
36
68.120.050

Артикул

Название

Примечание

Количество

1

47426065

SLEEVE

1шт.

2

921928

BUSHING

1шт.

3

84529476

SLEEVE

1шт.

4

47491880

LEVER

1шт.

FOR LB324S, LB324P, LB324R ONLY

1шт.

FOR LB334S, LB334P, LB334R ONLY

1шт.

4

47461277

LEVER

1шт.

FOR LB424S, LB424R ONLY

1шт.

FOR LB434S, LB434R ONLY

1шт.

4

47491880

LEVER

1шт.

FOR LB324S XL, LB324P XL, LB324R XL ONLY

1шт.

FOR LB334S XL, LB334P XL, LB334R XL ONLY

1шт.

4

47461277

LEVER

1шт.

FOR LB424S XL, LB424R XL ONLY

1шт.

FOR LB434S XL, LB434R XL ONLY

1шт.

5

435967

SPRING

1шт.

6

86511328

WASHER,25mm ID x 44mm OD x 4mm Thk

1шт.

7

87016715

LOCK PIN,6mm OD x 45mm L, Slotted

2шт.

8

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

10

47426059

PLATE

, Serial Range: -C150

1шт.

FOR LB324S, LB324P, LB324R ONLY

1шт.

FOR LB424S, LB424R ONLY

1шт.

10

47980962

PLATE

, Start Serial: D151

1шт.

FOR LB324S, LB324P, LB324R ONLY

1шт.

FOR LB424S, LB424R ONLY

1шт.

10

47426068

PLATE

, Serial Range: -C150

1шт.

FOR LB334S, LB334P, LB334R ONLY

1шт.

FOR LB434S, LB434R ONLY

1шт.

10

47980970

PLATE

, Start Serial: D151

1шт.

FOR LB334S, LB334P, LB334R ONLY

1шт.

FOR LB434S, LB434R ONLY

1шт.

10

47980962

PLATE

1шт.

FOR LB324S XL, LB324P XL, LB324R XL ONLY

1шт.

FOR LB424S XL, LB424R XL ONLY

1шт.

10

47980970

PLATE

1шт.

FOR LB334S XL, LB334P XL, LB334R XL ONLY

1шт.

FOR LB434S XL, LB434R XL ONLY

1шт.

11

47491778

PLATE

1шт.

FOR LB324S, LB324P, LB324R ONLY

1шт.

FOR LB424S, LB424R ONLY

1шт.

11

47491755

PLATE

1шт.

FOR LB334S, LB334P, LB334R ONLY

1шт.

FOR LB434S, LB434R ONLY

1шт.

11

47491778

PLATE

1шт.

FOR LB324S XL, LB324P XL, LB324R XL ONLY

1шт.

FOR LB424S XL, LB424R XL ONLY

1шт.

11

47491755

PLATE

1шт.

FOR LB334S XL, LB334P XL, LB334R XL ONLY

1шт.

FOR LB434S XL, LB434R XL ONLY

1шт.

12

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

13

86624126

HEX SOC SCREW,M4 x 16mm, Cl 8.8

2шт.

14

47447293

SHAFT

1шт.

15

47447317

SHAFT

1шт.

FOR LB334S, LB334P, LB334R ONLY

1шт.

FOR LB434S, LB434R ONLY

1шт.

15

47447317

SHAFT

1шт.

FOR LB334S XL, LB334P XL, LB334R XL ONLY

1шт.

FOR LB434S XL, LB434R XL ONLY

1шт.

16

84439533

BALL JOINT HEAD,M10

1шт.

17

84520548

BALL JOINT HEAD,M10

1шт.

18

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.

19

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

20

86588501

WASHER,11mm ID x 20mm OD x 2.5mm Thk

4шт.

21

86512554

NUT,M10 x 1.5, Cl 10

2шт.

22

84564333

SLEEVE

, Serial Range: -C150

1шт.

22

47853133

SLEEVE

, Start Serial: D151

1шт.

23

86639027

BOLT,Hex, M5 x 45mm, Cl 8.8, Full Thd

1шт.

24

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

1шт.

25

100016

NUT,M10 x 1.5, Cl 8

1шт.

26

47470565

NUT

1шт.

27

47505384

BELLEVILLE WASHER

2шт.

28

47427520

SUPPORT

1шт.

29

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

30

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

31

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

32

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

33

8475948

NUT,M10 x 1.5, Cl 8

1шт.

34

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

35

47850329

SUPPORT

, Start Serial: D151

1шт.

36

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

, Start Serial: D151

2шт.

37

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Start Serial: D151

2шт.

38

100016

NUT,M10 x 1.5, Cl 8

, Start Serial: D151

2шт.

Выбрано товаров: 83
