Запчасти Case IH LB324P (05.100.04[03]) - MAINTENANCE PARTS, KNIVES, KNIFE DRAWER, SHUTTLE FEEDER AND TRANSMISSION (05) - SERVICE & MAINTENANCE

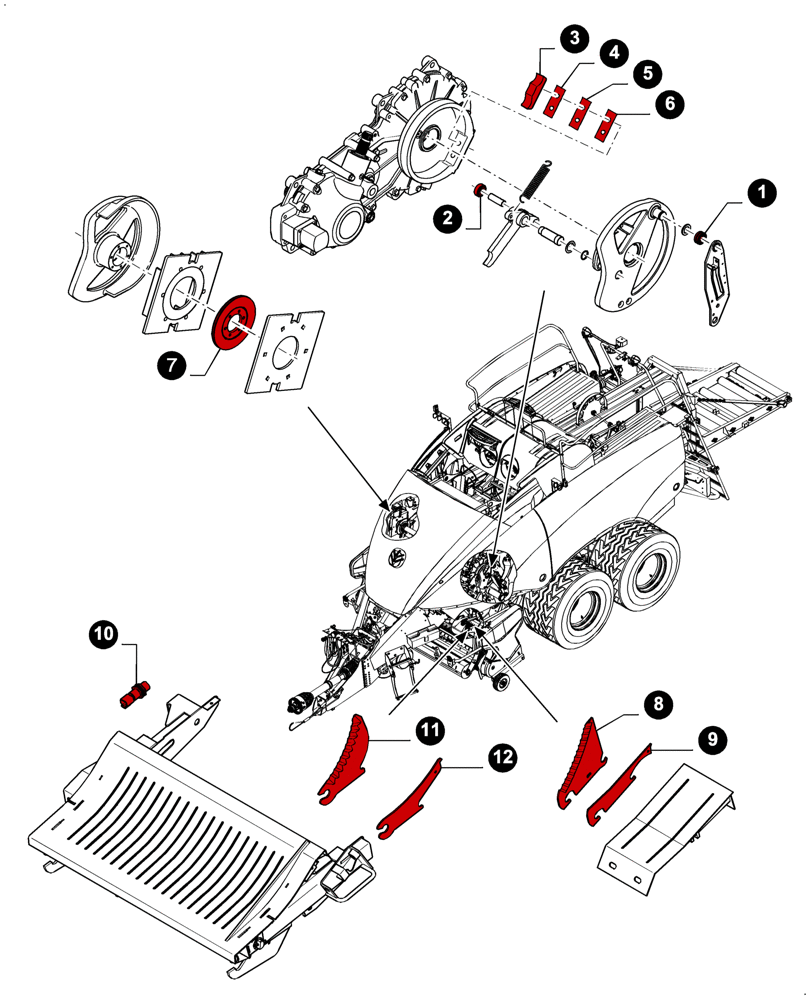

Схема запчастей Case IH LB324P - (05.100.04[03]) - MAINTENANCE PARTS, KNIVES, KNIFE DRAWER, SHUTTLE FEEDER AND TRANSMISSION (05) - SERVICE & MAINTENANCE
9
10
5
12
7
3
6
2
11
4
1
8

Артикул

Название

Примечание

Количество

1

84247661

BEARING

2шт.

2

84400783

ROLLER

1шт.

3

87336142

INSERT

Stuffer clutch

1шт.

ORDER NEW PARTS EVERY 2 YEARS

1шт.

REPLACE THE NOTCH ANNUALLY

1шт.

4

84100755

SHIM,0.3mm Thk

1шт.

5

84100756

SHIM,0.4mm Thk

1шт.

6

84100757

SHIM,0.5mm Thk

1шт.

7

47455174

BRAKE DISC

1шт.

8

84056426

KNIFE

6шт.

UNIVERSAL, SILAGE AND STRAW, SLOTTED HOLE, EXCELLENT BALE COHERENCE

1шт.

FOR LB324P, LB334P ONLY

1шт.

8

84058221

KNIFE

6шт.

HARD-FACED KNIVES, NOT FOR VERY STONY CONDITIONS

1шт.

FOR LB324P, LB334P ONLY

1шт.

9

84042301

COVER PLATE

6шт.

FOR LB324P, LB334P ONLY

1шт.

10

84391774

SENSOR

X109 - Status cutter

1шт.

FOR LB324R, LB334R, LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

11

84056505

KNIFE

1шт.

FOR LB324R, LB334R, LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

11

84058219

KNIFE

1шт.

FOR LB324R, LB334R, LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

HARD-FACED KNIVES, NOT FOR VERY STONY CONDITIONS

1шт.

12

84056868

COVER PLATE

1шт.

FOR LB324R, LB334R, LB424R, LB434R, LB424R XL, LB434R XL ONLY

1шт.

Выбрано товаров: 26
