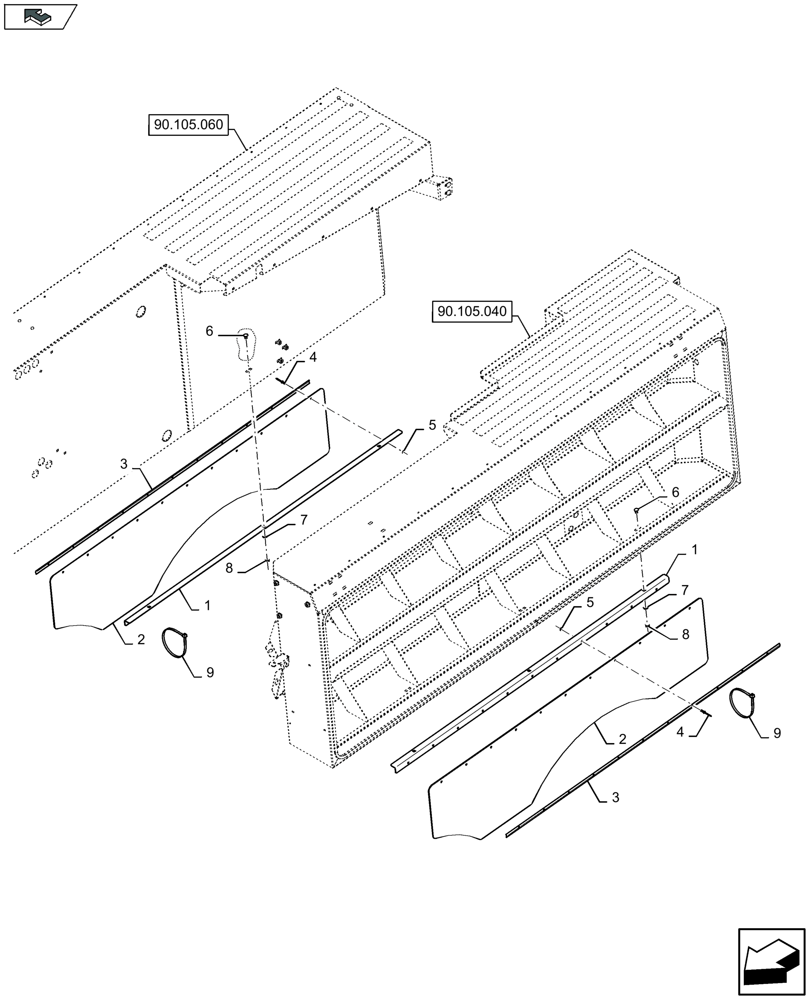

Запчасти Case IH LB324P (90.105.140) - LOWER SHIELDS, TANDEM AXLE, AXLE SPACER 0MM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47364598

PLATE

2шт.

FOR LB324S LB324P LB334S LB334P LB424S LB434S ONLY

1шт.

1

84545426

PLATE

, Serial Range: -C071

2шт.

FOR LB324R LB334R LB424R LB434R ONLY

1шт.

1

47426050

PLATE

, Start Serial: D072

2шт.

FOR LB324R LB334R LB424R LB434R ONLY

1шт.

2

47363894

FLAP

2шт.

FOR LB324S LB324P LB334S LB334P LB424S LB434S ONLY

1шт.

2

84528509

FLAP,578.3mm W x 1607.7mm L

2шт.

FOR LB324R LB334R LB424R LB434R ONLY

1шт.

3

84545421

MOUNTING PLATE

2шт.

4

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

22шт.

5

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

, Serial Range: -C136

22шт.

5

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

, Start Serial: D137

22шт.

6

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

6шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

8

9706690

NUT,M8 x 1.25, Cl 8

6шт.

9

86566990

CABLE TIE,292mm OAL x 4.8mm W

, Start Serial: D137

12шт.
