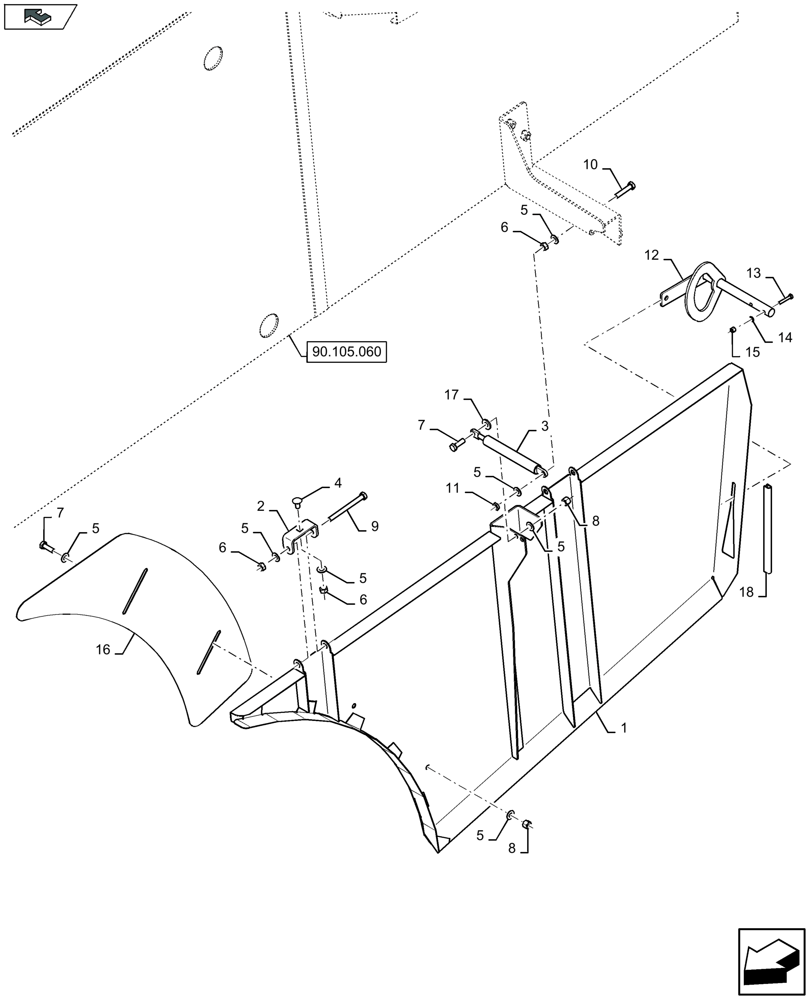

1
47406892
DOOR
, Serial Range: -C144
1шт.
FOR LB324S, LB324P, LB334S, LB334P, LB424S, LB434S ONLY
1шт.
1
47910453
DOOR
, Start Serial: D145
1шт.
FOR LB324S, LB324P, LB334S, LB334P, LB424S, LB434S ONLY
1шт.
1
47392736
PLATE
, Serial Range: -C144
1шт.
FOR LB324R, LB334R, LB424R, LB434R ONLY
1шт.
1
47910431
DOOR
, Start Serial: D145
1шт.
FOR LB324R, LB334R, LB424R, LB434R ONLY
1шт.
2
47426051
PLATE
1шт.
3
84434897
GAS STRUT,285.5mm Extended, 185.5mm Compressed
1шт.
4
86619060
CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8
1шт.
5
322358
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
1шт.
6
9706690
NUT,M8 x 1.25, Cl 8
1шт.
7
43127
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
1шт.
8
393393
NUT
, Serial Range: -C121
1шт.
8
412250
NUT,M8 x 1.25, Cl 8
, Start Serial: D122
1шт.
9
86508571
BOLT,Hex, M8 x 90mm, Cl 8.8
1шт.
10
120106
BOLT,M8 x 1.25 x 45.45mm, Cl 8.8
1шт.
11
16102311
THIN NUT,Thin, M8 x 1.25, Cl 04
1шт.
12
47406882
HANDLE
, Serial Range: -C144
1шт.
12
47910445
HANDLE
, Start Serial: D145
1шт.
13
86508566
BOLT,Hex, M5 x 30mm, Cl 8.8
2шт.
14
9824326
WASHER,5.3mm ID x 10mm OD x 1mm Thk
2шт.
15
86639241
NUT,Prev Torque, M5 x 0.8, Cl 8
2шт.
16
47426053
SHEET
1шт.
FOR LB324S, LB324P, LB334S, LB334P, LB424S, LB434S ONLY
1шт.
16
47910443
PLATE
, Start Serial: D145
1шт.
FOR LB324R, LB334R, LB424R, LB434R ONLY
1шт.
17
87015284
WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk
1шт.
18
291186
PROTECTION STRIP,9.9mm W
L= 0.2M, Start Serial: D145
1шт.
