Запчасти Case IH LB324P (90.105.010) - PLUNGER SHIELDINGS (90) - PLATFORM, CAB, BODYWORK AND DECALS

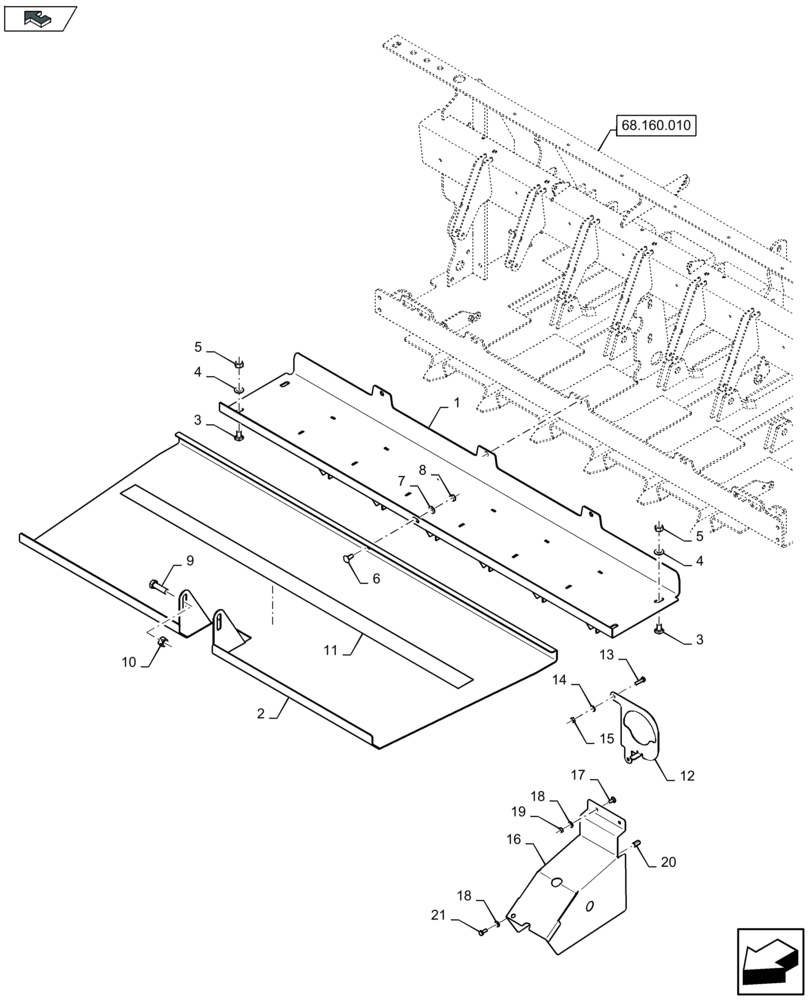

Схема запчастей Case IH LB324P - (90.105.010) - PLUNGER SHIELDINGS (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
2
17
19
1
21
11
16
3
13
4
3
7
68.160.010
18
14
8
6
18
12
5
10
9
15
4
20
5

Артикул

Название

Примечание

Количество

1

84540409

ANTI-WRAP PLATE

1шт.

FOR LB434S, LB434R ONLY

1шт.

FOR LB434S XL, LB434R XL ONLY

1шт.

1

84587256

ANTI-WRAP PLATE

1шт.

FOR LB424S, LB424R ONLY

1шт.

FOR LB424S XL, LB424R XL ONLY

1шт.

1

84540881

ANTI-WRAP PLATE

1шт.

FOR LB334S, LB334P, LB334R ONLY

1шт.

FOR LB334S XL, LB334P XL, LB334R XL ONLY

1шт.

1

84587369

ANTI-WRAP PLATE

1шт.

FOR LB324S, LB324P, LB324R ONLY

1шт.

FOR LB324S XL, LB324P XL, LB324R XL ONLY

1шт.

2

84534448

COVER PLATE

1шт.

FOR LB434S, LB434R ONLY

1шт.

FOR LB434S XL, LB434R XL ONLY

1шт.

2

84587375

COVER PLATE

, Serial Range: -C140

1шт.

FOR LB324S, LB324P, LB324R ONLY

1шт.

2

47858798

COVER

, Start Serial: D141

1шт.

FOR LB324S, LB324P, LB324R ONLY

1шт.

FOR LB324S XL, LB324P XL, LB324R XL ONLY

1шт.

2

84534436

COVER PLATE

1шт.

FOR LB334S, LB334P, LB334R ONLY

1шт.

FOR LB334S XL, LB334P XL, LB334R XL ONLY

1шт.

2

84587264

COVER PLATE

, Serial Range: -C140

1шт.

FOR LB424S, LB424R ONLY

1шт.

2

47858796

COVER

, Start Serial: D141

1шт.

FOR LB424S, LB424R ONLY

1шт.

FOR LB424S XL, LB424R XL ONLY

1шт.

3

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

5

100016

NUT,M10 x 1.5, Cl 8

4шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

8

9706690

NUT,M8 x 1.25, Cl 8

1шт.

9

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

10

100038

NUT,M12 x 1.75, Cl 8

2шт.

11

401502

ANTI-SKID STRIP

L=3.63M

1шт.

12

84425928

PLATE

, Serial Range: -C084

1шт.

FOR LB324S, LB324P, LB324R ONLY

1шт.

FOR LB424S, LB424R ONLY

1шт.

12

84425926

PLATE

, Serial Range: -C084

1шт.

FOR LB334S, LB334P, LB334R ONLY

1шт.

FOR LB434S, LB434R ONLY

1шт.

13

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

, Serial Range: -C047

2шт.

13

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

, Serial Range: -F048084

2шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

, Serial Range: -C084

2шт.

15

9706755

NUT,M6, Cl 8

, Serial Range: -C084

2шт.

16

47417897

SUPPORT

, Start Serial: D085

1шт.

FOR LB324S, LB324P, LB324R ONLY

1шт.

FOR LB424S, LB424R ONLY

1шт.

16

47417402

SUPPORT

, Start Serial: D085

1шт.

FOR LB334S, LB334P, LB334R ONLY

1шт.

FOR LB434S, LB434R ONLY

1шт.

16

47417897

SUPPORT

, Start Serial: D085

1шт.

FOR LB424S XL, LB424R XL ONLY

1шт.

FOR LB324S XL, LB324P XL, LB324R XL ONLY

1шт.

16

47417402

SUPPORT

, Start Serial: D085

1шт.

FOR LB434S XL, LB434R XL ONLY

1шт.

FOR LB334S XL, LB334P XL, LB334R XL ONLY

1шт.

17

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

, Start Serial: D085

1шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

, Start Serial: D085

3шт.

19

9706755

NUT,M6, Cl 8

, Start Serial: D085

1шт.

20

87716662

NUT

, Start Serial: D099

1шт.

21

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

, Start Serial: D099

1шт.

Выбрано товаров: 64
