Запчасти Case IH LB324P (90.102.020) - PICK UP, SHIELDINGS, RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS

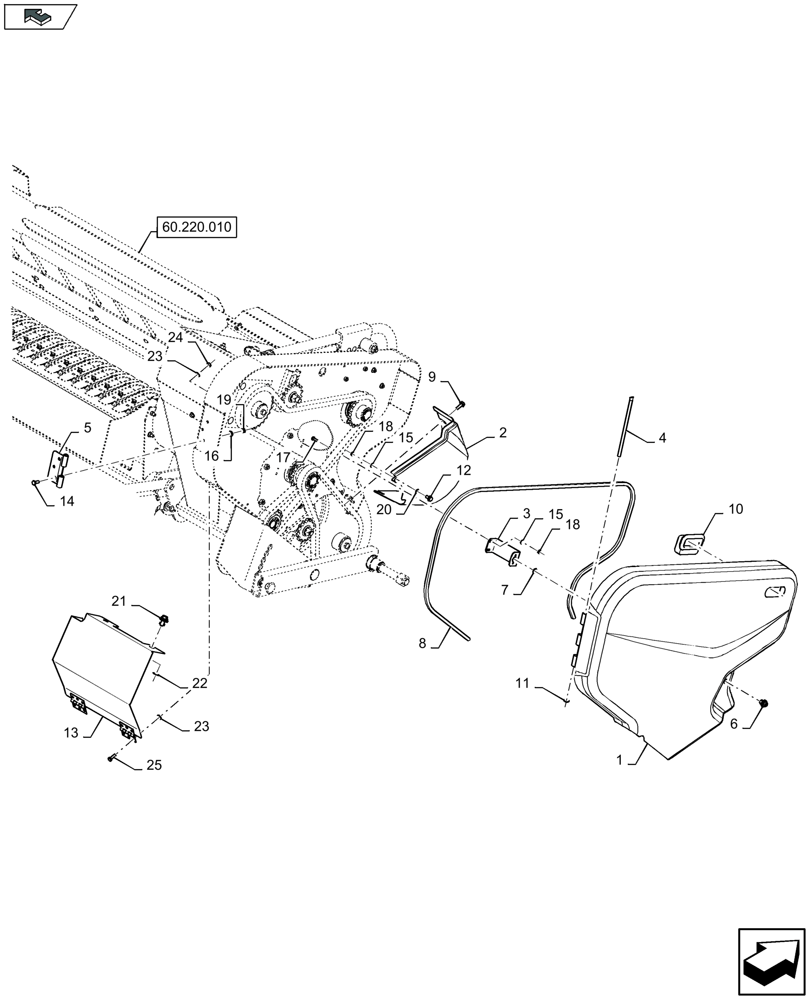

Схема запчастей Case IH LB324P - (90.102.020) - PICK UP, SHIELDINGS, RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS
60.220.010
25
15
5
17
13
1
24
home
12
23
18
3
4
10
22
11
7
23
20
6
2
21
16
14
8
18
9
19
15

Артикул

Название

Примечание

Количество

1

84535492

DOOR PANEL

1шт.

2

84361877

SHIELD

1шт.

3

84530682

SUPPORT

1шт.

4

84363841

ROD,10mm OD x 225mm L

1шт.

5

84398239

HINGE

1шт.

6

9514603

LOCK,1/4 Turn, 28.8mm OAL

1шт.

6

9831581

LOCK

1шт.

FOR EASY UNLOCKING

1шт.

7

9514605

LOCK WASHER,9.8mm ID x 18.5mm OD x 1.5mm Thk

1шт.

8

291186

PROTECTION STRIP,9.9mm W

L=2.27M

1шт.

9

86511478

BOLT,Hex Serr, M8 x 1.25 x 16mm

3шт.

10

3962571

HANDLE

1шт.

11

431021

SPECIAL WASHER

, Serial Range: -C090

1шт.

12

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

, Serial Range: -C075

1шт.

12

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

, Start Serial: D076

1шт.

13

84363417

SHIELD

, Serial Range: -C149

1шт.

FOR LB324S, LB324P, LB334S, LB334P, LB324S XL, LB324P XL, LB334S XL, LB334P XL ONLY

1шт.

13

47962782

COVER

, Start Serial: D150

1шт.

FOR LB324S, LB324P, LB334S, LB334P, LB324S XL, LB324P XL, LB334S XL, LB334P XL ONLY

1шт.

13

84363359

PLATE

, Serial Range: -C149

1шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

13

47962780

COVER

, Start Serial: D150

1шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

17

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

18

9706755

NUT,M6, Cl 8

2шт.

19

9706690

NUT,M8 x 1.25, Cl 8

3шт.

20

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

, Start Serial: D076

1шт.

21

86511478

BOLT,Hex Serr, M8 x 1.25 x 16mm

, Serial Range: -C149

3шт.

21

9514603

LOCK,1/4 Turn, 28.8mm OAL

, Start Serial: D150

2шт.

22

9514605

LOCK WASHER,9.8mm ID x 18.5mm OD x 1.5mm Thk

, Start Serial: D150

2шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

, Start Serial: D150

8шт.

24

9706755

NUT,M6, Cl 8

, Start Serial: D150

4шт.

25

120100

BOLT,M6 x 20mm, Cl 8.8

, Start Serial: D150

4шт.

Выбрано товаров: 36
